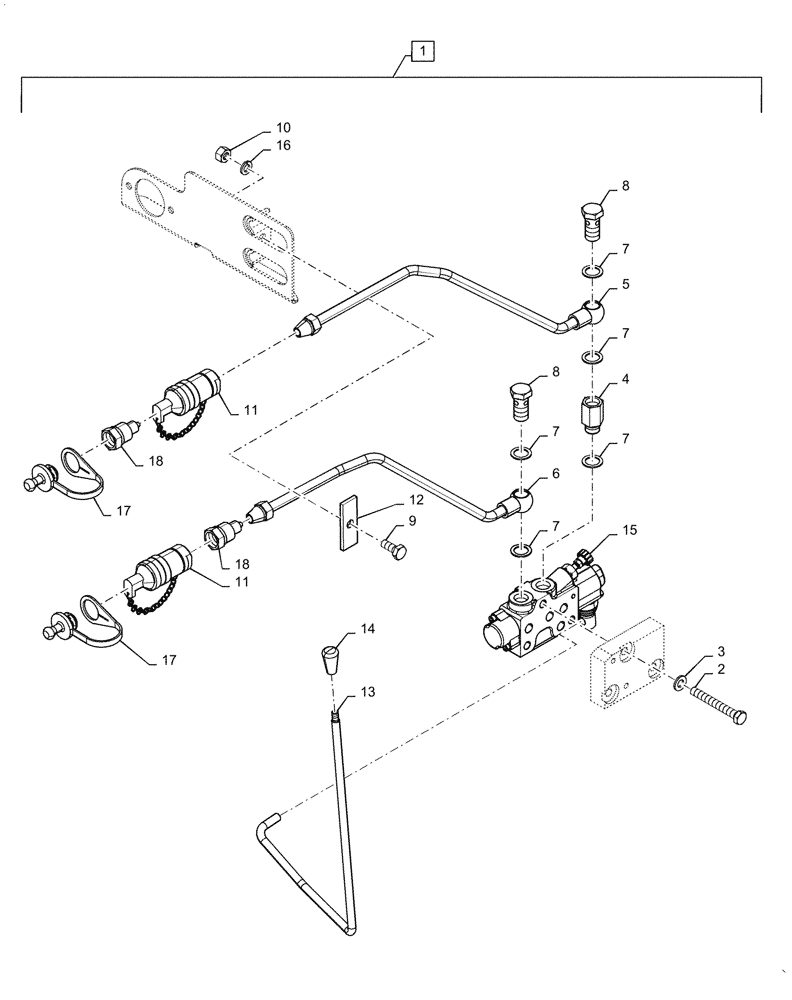

Запчасти Case IH FARMALL 55A (35.204.04) - DIA KIT, SECOND REAR REMOTE (35) - HYDRAULIC SYSTEMS

1

719279012

DIA KIT, TRAC HYD SY

2ND Rear Remote Valve Includes: 1A-17

1шт.

2

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

2шт.

3

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

4

87398101

HYD CONNECTOR

1шт.

5

84202429

RIGID TUBE

Short, Port A

1шт.

6

84202427

RIGID TUBE

Short, Port B

1шт.

7

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

10шт.

8

82824891

BANJO BOLT,2-Way, M18 x 1.5 x 37mm

2шт.

9

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

10

10790111

NUT,M10 x 1.25, Cl 8

1шт.

11

84405721

COUPLING, QUICK, FEM

2шт.

12

87314513

BRACKET

2шт.

13

84230468

CONTROL LEVER

1шт.

14

84350329

KNOB

Blue

1шт.

15

84161439

HYDRAULIC VALVE

1шт.

16

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

17

5179577

PLUG,24mm, Blu

1шт.

18

84405726

QUICK MALE COUPLING

1шт.
