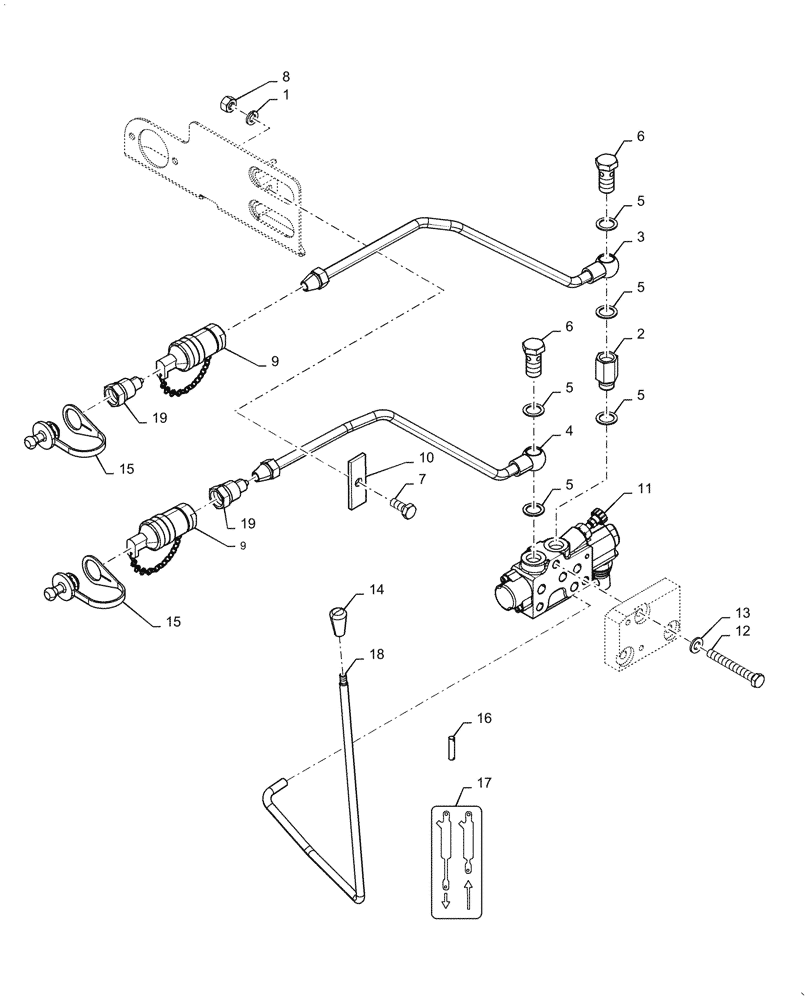

Запчасти Case IH FARMALL 55A (35.204.03[02]) - REMOTE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

2

87398101

HYD CONNECTOR

M.F Adaptor

1шт.

3

84180173

RIGID TUBE

Pipe, Assy Remote 1, Port A

1шт.

4

84180179

RIGID TUBE

Pipe Assy, Remote 1, Port B

1шт.

5

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

5шт.

6

82824891

BANJO BOLT,2-Way, M18 x 1.5 x 37mm

2шт.

7

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

Bolt

1шт.

8

10790111

NUT,M10 x 1.25, Cl 8

1шт.

9

84405721

COUPLING, QUICK, FEM

2шт.

10

87314513

BRACKET

Qrc Mtg. Front

1шт.

11

84161439

HYDRAULIC VALVE

Remote Control Assy, Single-Double

1шт.

12

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

3шт.

13

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

3шт.

14

5091856

KNOB

Valve Command Arm Knob

1шт.

15

5179576

PLUG,24mm, Green

Dust Cap, Green

2шт.

16

87575674

PIN

1шт.

17

5119109

DECAL

Plate

2шт.

18

84181266

LEVER

Assy, Rear Remote

1шт.

19

84405726

QUICK MALE COUPLING

2шт.
