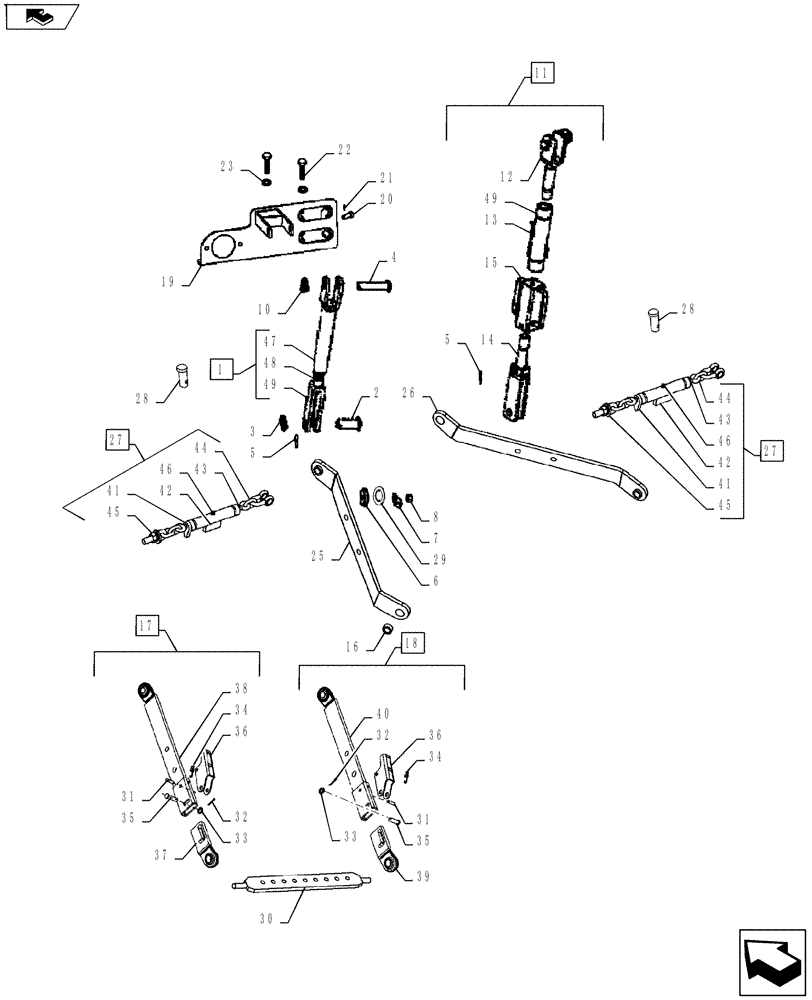

Запчасти Case IH FARMALL 55A (35.120.03) - LIFT LINKS AND LOWER LINKS (35) - HYDRAULIC SYSTEMS

1

87560630

ROD

Lift, L.H. Includes Ref 47-49

1шт.

2

87571328

PIN

Lower

2шт.

3

82823250

PIN

Lynch

4шт.

4

87571327

PIN

Upper

2шт.

5

82824022

COTTER PIN,12.25mm x 95.5mm L

Lower Link

2шт.

6

87738498

SPACER

Lower Link

4шт.

7

4959777

PLATE

2шт.

8

NSS

NOT SOLD SEPARAT

2шт.

9

82824107

SPRING

Lower-Link, Not Illustrated

1шт.

10

82823243

PIN,8mm OD

Lynch

2шт.

11

87738495

LIFTING ROD

Link Top, Includes Ref. 12-15, 49

1шт.

12

84366633

FORK

Assy.

1шт.

13

84366632

TUBE

Assy., Lift Rod

1шт.

14

84366641

FORK

Assy., Upper Part Lift Rod

1шт.

15

84266170

HANDLE

Right Lift Link

1шт.

16

82834029

BUSHING,22.3mm ID x 28.48mm OD x 34mm L

D22 x 29 x 34

2шт.

17

84180542

ARM

LH, Lower Telescopic, FARMALL 45A Includes Ref 31-38

1шт.

17

84180543

ARM

LH, Lower Telescopic, FARMALL 55A Includes Ref 31-38

1шт.

18

84180551

ARM

RH, Lower Telescopic, FARMALL 45A Includes Ref 31-36, 39-40

1шт.

18

84180552

ARM

RH, Lower Telescopic, FARMALL 55A Includes Ref 31-36, 39-40

1шт.

19

47943467

BRACKET

1шт.

20

82823006

PIN

1шт.

21

82823007

SPRING

Top Link Holding Bracket

1шт.

22

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

23

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

24

84296970

PIN,22mm OD x 133mm L

Lower Link Mounting, Used to Mount to Tractor, Serial Range: -`0

2шт.

NOT ILLUSTRATED

1шт.

25

84246602

LOWER LINK

Assy., LH, FARMALL 45

1шт.

25

87745761

LOWER LINK

Assy., LH, FARMALL 55

1шт.

26

84246604

LOWER LINK

Assy., LH, FARMALL 45

1шт.

26

87745762

LOWER LINK

Assy., LH, FARMALL 55

1шт.

27

84246613

CHAIN

Assy. Check, Includes Ref 41-46

2шт.

28

84246620

PIN,19mm OD x 60mm L

Check Chain

2шт.

29

82827154

BELLEVILLE WASHER,19mm ID x 36mm OD x 3.6mm Thk

2шт.

30

595441

CROSSRAIL

Member

1шт.

31

381928

ROLL PIN,10mm OD x 50mm L, Slotted

Slotted Spring 10x45 HVY PLN CST

2шт.

32

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

STL ZND

2шт.

33

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

17x30x3mm CST ZND

2шт.

34

86532826

SPRING,Extension, 60.7mm L

Link Cover

2шт.

35

84535109

CLEVIS PIN

5/8 Dia

2шт.

36

86402627

COVER

Link

2шт.

37

84403495

TRACK ROD END ASSY

LH Telescopic, FARMALL 45

1шт.

37

84403491

TRACK ROD END ASSY

LH Telescopic, FARMALL 55

1шт.

38

84403494

LOWER LINK

LH Telescopic, FARMALL 45

1шт.

38

84403490

LOWER LINK

LH Telescopic, FARMALL 55

1шт.

39

84403493

TRACK ROD END ASSY

RH Telescopic Lower, FARMALL 45

1шт.

39

84403180

TRACK ROD END ASSY

Chain, RH Telescopic End, FARMALL 55

1шт.

40

84403492

LOWER LINK

RH Telescopic, FARMALL 45

1шт.

40

84403179

LOWER LINK

RH Telescopic, FARMALL 55

1шт.

41

84367118

NUT

1шт.

42

84403124

TUBE

Link, Turn Buckle

1шт.

43

84403176

TRACK ROD END ASSY

Chain Assy., LH End

1шт.

44

84403067

TRACK ROD END ASSY

Chain Assy., RH End

1шт.

45

84403099

NUT

1шт.

46

13407211

LUBE NIPPLE,M10 x 1

Fixing, M10x1, 18mm High

1шт.

47

84366623

TUBE

Assy., Lift Rod

1шт.

48

84366625

FORK

Assy.

1шт.

49

933756R1

LUBE NIPPLE,M6 x 1

Fitting

2шт.
