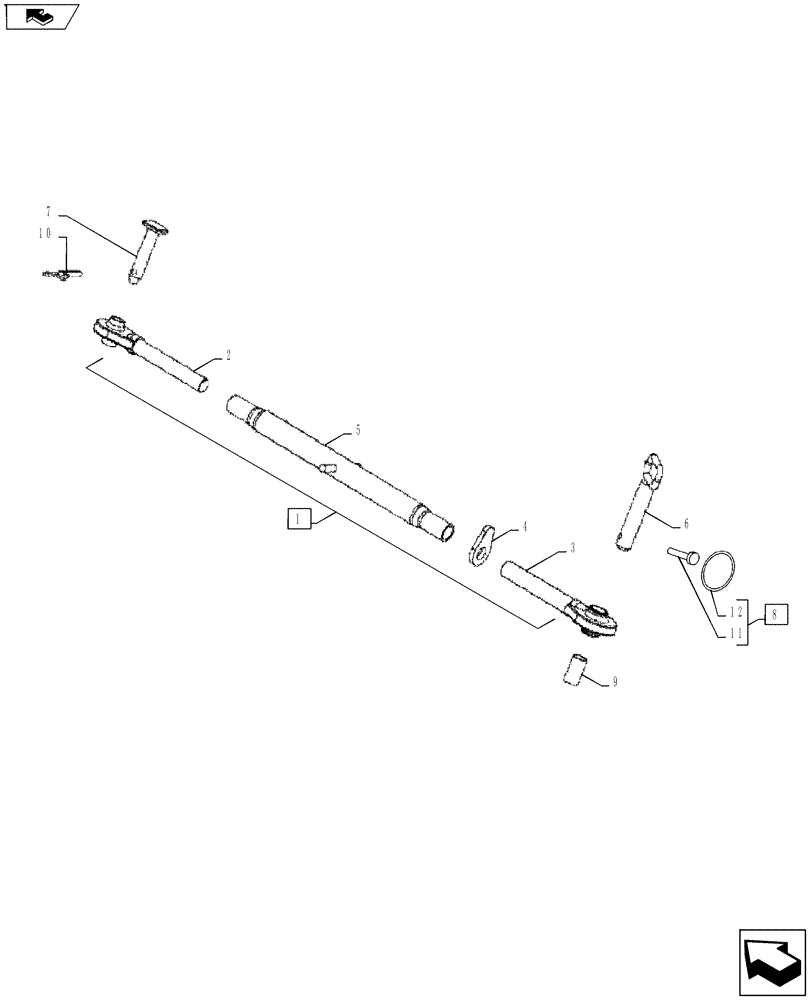

Запчасти Case IH FARMALL 55A (35.120.02) - TOP LINK (35) - HYDRAULIC SYSTEMS

1

84513101

UPPER LINK

Top Assy., Link Includes Ref. 2-5

1шт.

2

47392075

ELASTIC TIE ROD

Top Link

1шт.

3

47392076

ELASTIC TIE ROD

Link Assy.

1шт.

4

47392078

NUT

Stop, Top Link

1шт.

5

47392077

TUBE

Turn Buckle Assy.

1шт.

6

82834152

PIN

Link, Sleeve

1шт.

7

87738504

PIN

Top Link

1шт.

8

81810390

LINCH PIN,11.18mm OD

3 Point Linkage, Includes Ref. 11-12

2шт.

9

5134566

BUSHING,19.4mm ID x 25mm OD x 44mm L

1шт.

10

561831

PIN,19mm OD x 100mm L

Linch, Top Link

1шт.

11

NSS

NOT SOLD SEPARAT

Pin

1шт.

12

NSS

NOT SOLD SEPARAT

Ring

1шт.
