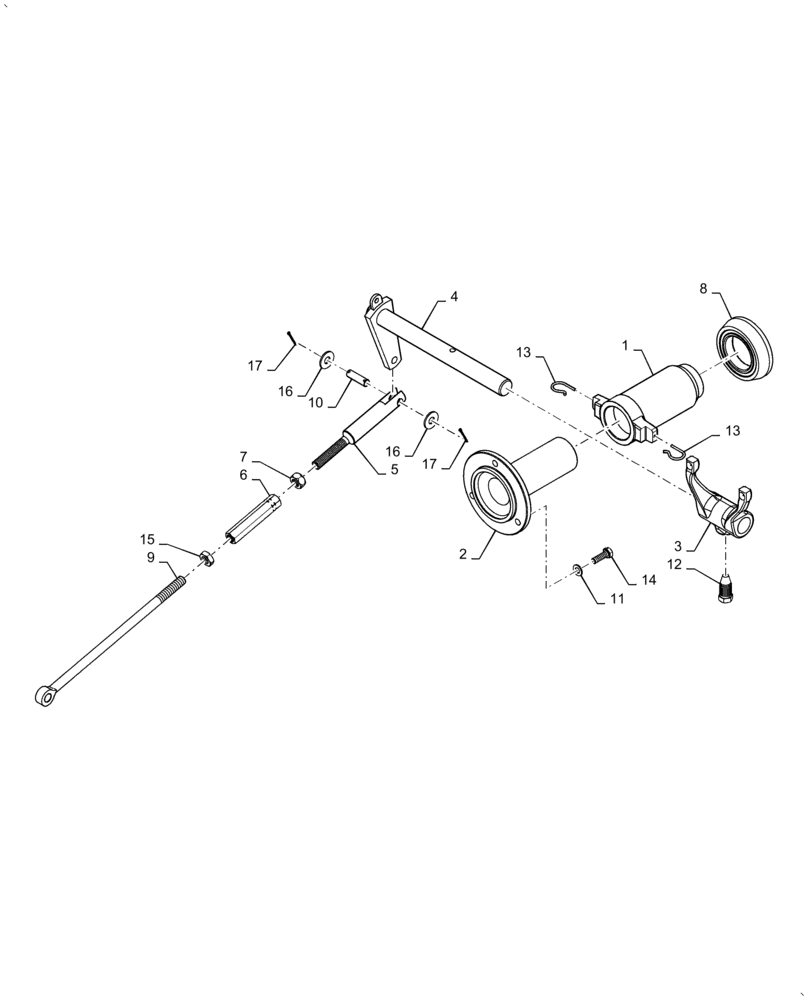

Запчасти Case IH FARMALL 50A (18.100.AJ[01]) - MASTER CLUTCH RELEASE CONTROL LINK (18) - CLUTCH

1

82825708

SLEEVE

Master Clutch

1шт.

2

87345145

SLEEVE

Cover

1шт.

3

5124803

SHIFTER FORK

Lever

1шт.

4

84142042

SHAFT

Assy, Clutch Fork Lever

1шт.

5

84368422

LEVER

Brake Adjuster

1шт.

6

84342421

ADAPTER,M12 x 1.5

Screw, Coupling Box

1шт.

7

16101511

NUT,M12 x 1.25, Cl 8

1шт.

8

82824591

THRUST BEARING

Clutch

1шт.

9

84342420

LEVER

Link, Master Clutch Control

1шт.

10

596420

PIN,10mm OD x 34mm L

Fork

1шт.

11

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

12

4968813

BOLT,Hex, M16 x 1.5 x 32mm

1шт.

13

44011615

SPRING,15mm, Free Length

2шт.

14

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

15

10791211

THIN NUT,Thin, M12 x 1.5, Cl 04

1шт.

16

12646801

WASHER,10.2mm ID x 25mm OD x 2mm Thk

2шт.

17

10734401

COTTER PIN,M2 x 22

2шт.
