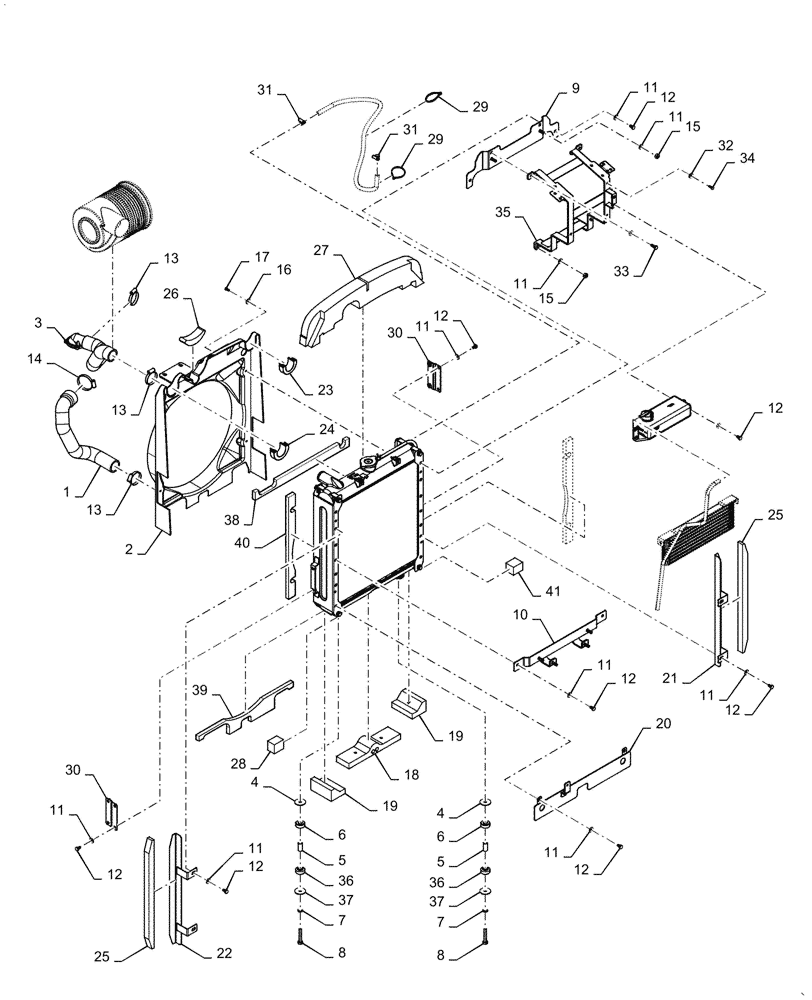

Запчасти Case IH FARMALL 50A (10.400.BE[02]) - RADIATOR ASSY (10) - ENGINE

1

47671134

HOSE

Radiator Lower

1шт.

2

47807832

COWLING

1шт.

3

47671135

HOSE

Radiator Upper

1шт.

4

47723218

WASHER

Radiator

2шт.

5

47688236

SLEEVE

Sleeve, Mounting

2шт.

6

47805123

CUSHION

Mounting Upper

2шт.

7

10569479

LOCK WASHER,10.2mm ID x 16mm OD x 2.5mm Thk

2шт.

8

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

9

47718842

BRACKET

Assy, CAC Mounting Upper

1шт.

10

47802643

BRACKET

Assy, CAC Mounting Lower

1шт.

11

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

26шт.

12

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

18шт.

13

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

3шт.

14

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

15

16100810

NUT,M8, Cl 8

6шт.

16

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

4шт.

17

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

18

47726775

SEAL

Radiator Bottom Middle

1шт.

19

47726776

SEAL

Radiator Bottom Side

2шт.

20

47718854

BRACKET

Assy Seal Bottom

1шт.

21

47746663

BRACKET

Assy Seal LH

1шт.

22

47746662

BRACKET

Assy Sealing RH

1шт.

23

47804444

GROMMET

Cowl

1шт.

24

47804445

GROMMET

Cowl

1шт.

25

47746664

SEAL

Foam Side

2шт.

26

47688239

SEAL

Radiator

1шт.

27

47795561

SEAL

Radiator Top

1шт.

28

47688242

SEAL

Side

2шт.

29

14560187

COLLAR,199mm L

Cable Tie, Nylon Black

2шт.

30

47731497

BRACKET

Assy Hood Side Cover

2шт.

31

13000190

HOSE CLAMP,M10-16

Worm Gear

2шт.

32

10571579

LOCK WASHER,M6

2шт.

33

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

34

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

35

47802584

BRACKET

Assy Vertical LH

1шт.

36

47805124

CUSHION

Radiator Mounting Lower

2шт.

37

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

38

47877447

SEAL

Radiator Top

1шт.

39

47877448

SEAL

Radiator Bottom

1шт.

40

47877449

SEAL

Radiator Side LH

1шт.

41

47877450

SEAL

Radiator Side RH

1шт.
