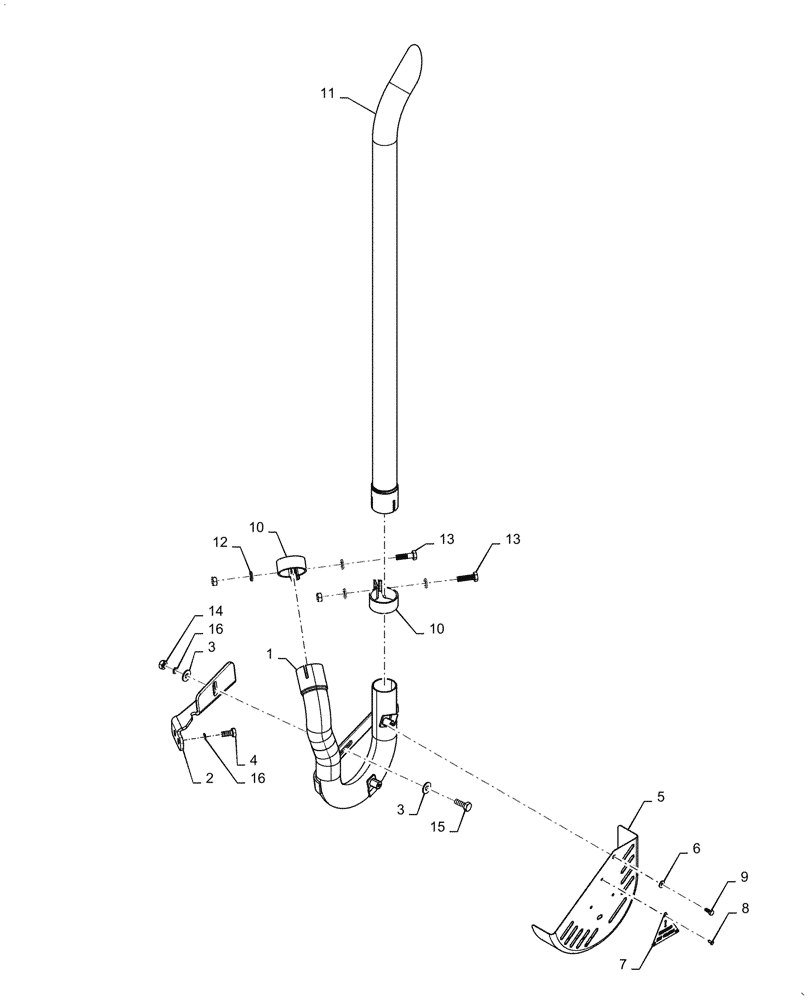

Запчасти Case IH FARMALL 50A (10.254.AI[02]) - EXHAUST MUFFLER, UPDRAFT (10) - ENGINE

1

48050583

PIPE

Assy, Exhaust Updraft

1шт.

2

47871981

BRACKET

Assy, Updraft

1шт.

3

12646801

WASHER,10.2mm ID x 25mm OD x 2mm Thk

2шт.

4

15970621

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

5

84426203

GUARD

Assy

1шт.

6

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

2шт.

7

87372859

DECAL

Warning

1шт.

8

5122484

RIVET

3шт.

9

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

10

47812498

CLAMP

Assy, Muffler

2шт.

11

48050585

PIPE

Assy, Vertical

1шт.

12

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

13

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

14

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

15

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

16

10569479

LOCK WASHER,10.2mm ID x 16mm OD x 2.5mm Thk

3шт.
