Запчасти Case IH FARMALL 50A (05.100.03[01]) - FILTERS, 50HP (05) - SERVICE & MAINTENANCE

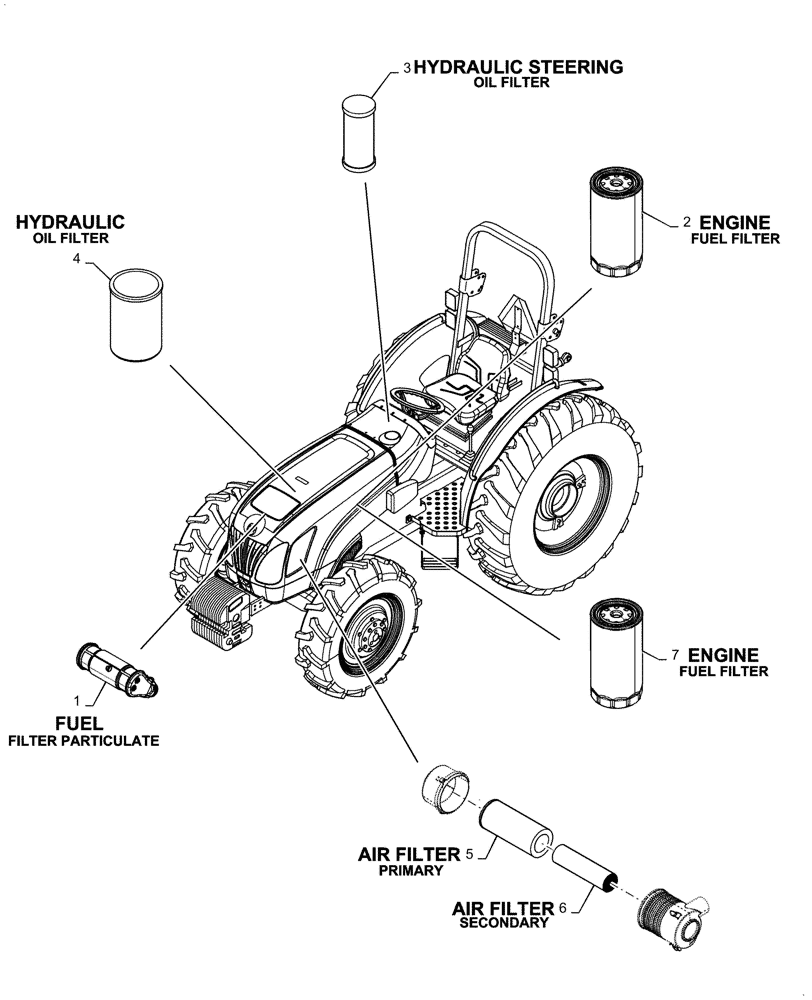

Схема запчастей Case IH FARMALL 50A - (05.100.03[01]) - FILTERS, 50HP (05) - SERVICE & MAINTENANCE
1
2
2
5
3
2
1
3
3
3
4
1
4
4
7
4
2
1
6
5

Артикул

Название

Примечание

Количество

1

47474586

MUFFLER

Filter, Diesel Particulate, AF

1шт.

2

47653990

FILTER

Pre, Fuel, Every 600 Hours

1шт.

3

4997992

ELEMENT

Filter - Power Steering, Packed

1шт.

4

87391716

FILTER

Suction, Packed, Every 600 Hours

1шт.

5

47821136

ELEMENT

Assy Primary, Every 1200 Hours

1шт.

6

47821137

ELEMENT

Assy Safety, Every 1200 Hours

1шт.

7

73379051

ENGINE OIL FILTER

Engine Oil

1шт.

Выбрано товаров: 7
