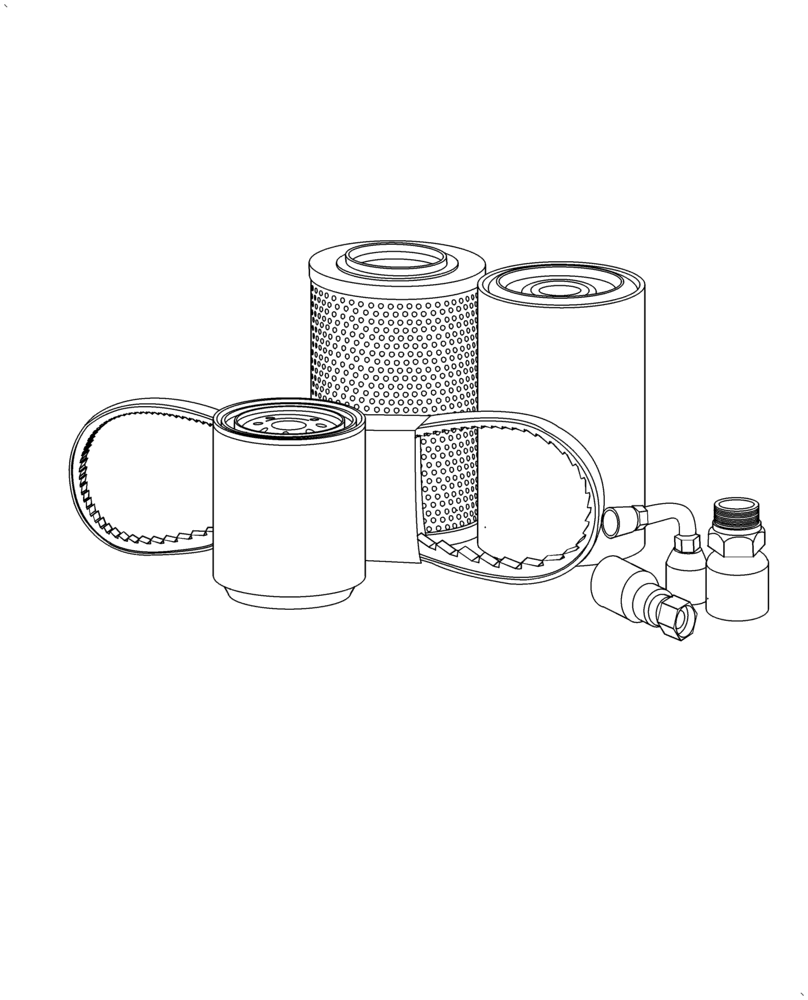

Запчасти Case IH FARMALL 50A (05.100.01[01]) - INITIAL STOCKING LIST (LIST A), 2WD (05) - SERVICE & MAINTENANCE

1

87391716

FILTER

Filter, Fuel Prefilter

1шт.

2

47821136

ELEMENT

Element Assy Primary

1шт.

3

47821137

ELEMENT

Assy Safety

1шт.

4

73379012

BELT

2шт.

5

73379051

ENGINE OIL FILTER

2шт.

6

73379174

FUEL FILTER

2шт.

7

47474586

MUFFLER

Filter, Diesel Particulate

1шт.

8

84267722

GASKET KIT

Seal

1шт.

9

TBA

Fuse

1шт.

10

84405721

COUPLING, QUICK, FEM

2шт.

11

5087258

COUPLING, QUICK, FEM

1шт.

12

47669798

HOSE

Suction Pipe to Filter

1шт.

13

47671134

HOSE

Radiator Lower

1шт.

14

47671135

HOSE

Radiator Upper

1шт.

15

47671111

HOSE

Turbo Outlet

1шт.

16

82826727

SWITCH ASSY

Assy Turn Signal

1шт.

17

82826807

SWITCH

Horn

1шт.

18

84280150

IGNITION SWITCH

Assy with Keys

1шт.

19

84280151

IGNITION KEY

of Swtich Assy

1шт.

20

87602450

LH HEADLAMP,Halogen, 12V, 60W, Clear

With Work Lamp

1шт.

21

87602451

RH HEADLAMP,Halogen, 12V, 60W, Clear

Dip with Work Lamp

1шт.

22

87666623

NEUTRAL START SWITCH,Hi/Low

Safety

1шт.

23

5138819

INDICATOR

Service

1шт.

24

84539292

MOTOR

Hydraulic Assy, Steering

1шт.

25

84179929

OIL SEAL

Shifter Housing

2шт.

26

47486027

GASKET

Seal, Between Hoods

1шт.

27

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

28

84394768

SENSOR

Temperature, EGT

1шт.

29

47406556

TEMPERATURE SENDER

Sensor

1шт.

30

87642071

LIGHT,12V, 21W, Amber/Red

Rear RH

1шт.

31

87648957

LIGHT,12V, 21W, Amber/Red

Rear LH

1шт.

32

82002548

CAP

Steering Wheel Hub

1шт.

33

82824670

VALVE

Fuel Cock Assy

1шт.

34

87558050

CABLE

Assy Complete PTO Clutch

1шт.

35

47671979

HOSE

Assy, Delivery, Power Steering Pump to Motor

1шт.

36

47671983

HOSE

Assy, Power Steering Motor to Tank

1шт.

37

47671977

HOSE

Assy, Motor to Cylinder RH

1шт.

38

47671973

HOSE

Assy, Motor to Cylinder LH

1шт.

39

82833546

SEAL,59.9mm ID x 86mm OD x 10mm Thk

2шт.

40

82833509

SEAL,59mm ID x 85.4mm OD x 5mm Thk

Dust Cover Inner

2шт.

41

87699322

HUB

Front Wheel

2шт.

42

10733801

COTTER PIN,M4 x 36

2шт.

43

82833551

PLUG,Cap hub front AXLE

Cap, Hub Front Axle, 50HP

2шт.

44

87304741

SLEEVE,74mm ID x 90mm OD x 13.8mm L

Hub Front Wheel

2шт.

45

82827173

SHIELD

Mud Cover Hub Front Wheel

2шт.

46

82833544

SEAL,36.4mm ID x 50.9mm OD x 6mm Thk

2шт.

47

82833508

SEAL,38.2mm ID x 66mm OD x 1mm Thk

Dust Cover, Upper

2шт.

48

84162983

HYDRAULIC VALVE

Control

1шт.

49

82823250

PIN

Lynch for Lift Rod

1шт.

50

84279135

LEVER

Pedal Assy, Brake Left

1шт.

51

84342857

PEDAL

Brake RH

1шт.

52

87645914

CABLE

Shuttler Interlock

1шт.

53

47605137

ACTUATOR

Brake, Actuator Assy

2шт.

54

47506242

JOYSTICK

Control, Diverter

1шт.

55

47740148

WIRE HARNESS

Headlamp

1шт.

56

47747284

SEAL

Radiator Top

1шт.

57

84337380

RELAY

Mini 70A, Tyco

2шт.

58

84561098

RELAY,12V, 35A

Plug In, Micro 280

10шт.

59

47654127

WIRE HARNESS

Alternator

1шт.

60

73379155

VALVE, THERMAL EXPAN

Thermostaic Asssy

1шт.

61

73379021

STARTER MOTOR

1шт.

73379021R

Reman Starter

REMAN-STARTER,REMAN-STARTER

1шт.

73379021C

Return Number

CORE-STARTER,CORE-STARTER

1шт.

62

47683791

ALTERNATOR

75A

1шт.

47683791R

Reman Alternator 75A

REMAN-ALTERNATOR,REMAN-ALTERNATOR

1шт.

47683791C

Return Number

CORE-ALTERNATOR,CORE-ALTERNATOR

1шт.

63

47683824

ALTERNATOR

90A

1шт.

64

73379119

FUEL SYSTEM INJECTOR

3шт.

65

73379120

SENSOR

Rail Pressure

1шт.

66

73379016

SENSOR

Engine Speed

1шт.

67

73379017

SENSOR

Engine Phase

1шт.

68

73379018

SENSOR

Water Temperature

1шт.

69

73379019

SENSOR

Air Pressure Temperature

1шт.

70

73379020

SENSOR

Oil Pressure

1шт.

71

73379023

PLUG

Glow

5шт.

72

73379008

DIPSTICK

Oil, Engine

1шт.

73

73379064

CAP

Oil Filler Assy

1шт.
