(90.120.AD[01]) - OPERATOR SEAT

Запчасти Case IH FARMALL 50A (90.120.AD[01]) - OPERATOR SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

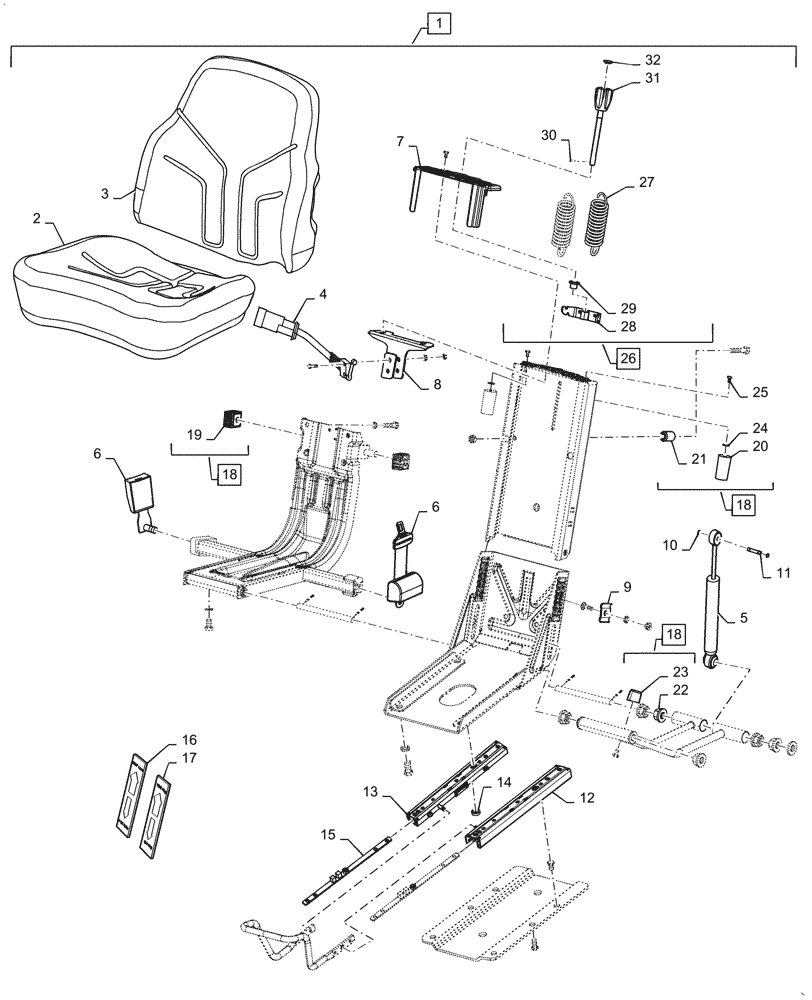

Схема запчастей Case IH FARMALL 50A - (90.120.AD[01]) - OPERATOR SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
18
15
18
28
20
7
24
29
18
14
9
12
30
2
4
6
6
22
3
21
19
26
13
31
5
23
27
16
32
8
1
17
25
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47476123

DRIVER SEAT

Incl 2 - 32

1шт.

2

47482253

SEAT CUSHION

Seat Botton

1шт.

3

47482255

BACKREST

Seat Back

1шт.

4

47482260

SWITCH,Operator Presance

Operator Presence

1шт.

5

47482265

SHOCK ABSORBER

Seat

1шт.

6

47663737

BELT

Seat

1шт.

7

47482259

COVER

Protective

1шт.

8

47815909

BRACKET

Switch

1шт.

9

47815910

BRACKET

Height Adjustment

2шт.

10

47815911

CIRCLIP

C6

2шт.

11

47815912

PIN

S/A Top

1шт.

12

47815913

SLIDE

Rail, LH

1шт.

13

47815914

SLIDE

Rail, RH

1шт.

14

47815915

SPACER

6T

4шт.

15

47815916

PLATE

Stopper

2шт.

16

47815917

DECAL

Weight Adjustment, KG

1шт.

17

47815918

DECAL

Weight Adjustment, LB

1шт.

18

47815900

BUSHING

Kit, Incl 19 - 25

1шт.

19

NSS

NOT SOLD SEPARAT

Square, Incl in 18

2шт.

20

NSS

NOT SOLD SEPARAT

Buffer, Incl in 18

2шт.

21

NSS

NOT SOLD SEPARAT

Buffer, Incl in 18

2шт.

22

NSS

NOT SOLD SEPARAT

Bush, Incl in 18

6шт.

23

NSS

NOT SOLD SEPARAT

Buffer, Incl in 18

1шт.

24

NSS

NOT SOLD SEPARAT

B6 Spring, Incl in 18

2шт.

25

NSS

NOT SOLD SEPARAT

Incl in 18

4шт.

26

47815903

SUSPENSION

Kit, Incl 27 - 32

1шт.

27

NSS

NOT SOLD SEPARAT

Incl in 26

2шт.

28

NSS

NOT SOLD SEPARAT

Spring, Incl in 26

1шт.

29

NSS

NOT SOLD SEPARAT

Weight Adjustment, Incl in 26

1шт.

30

NSS

NOT SOLD SEPARAT

Spring Dowel, Incl in 26

1шт.

31

NSS

NOT SOLD SEPARAT

Weight Adjustment, Incl in 26

1шт.

32

NSS

NOT SOLD SEPARAT

Incl in 26

1шт.
