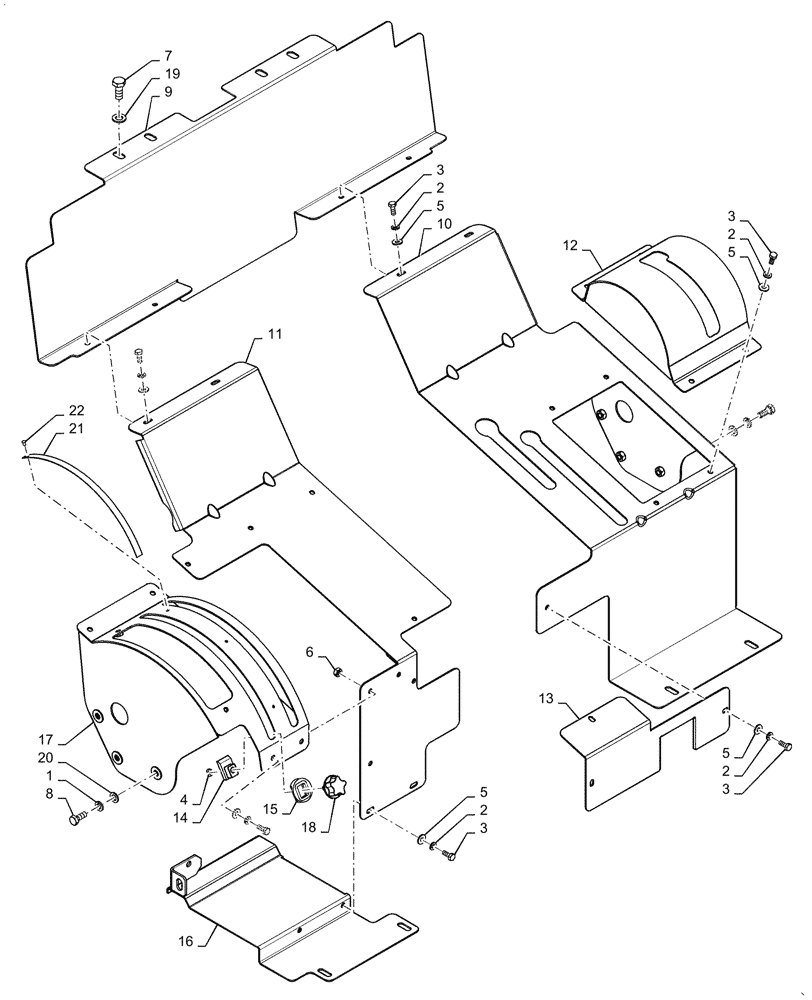

Запчасти Case IH FARMALL 50A (90.110.BC[01]) - PLATFORM COVERS WITH JOY STICK Invalid section

1

10516671

LOCK WASHER

Helical Spr

6шт.

2

10571579

LOCK WASHER,M6

Helical Spr

17шт.

3

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

17шт.

4

11087776

CIRCLIP,Ext., M6, BLO

E-Ring

2шт.

5

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

17шт.

6

15896211

NUT,M6, Cl 8

1шт.

7

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

8

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

9

48089867

Rear

COVER ASSY

1шт.

10

48089885

LH

COVER ASSY

1шт.

11

48089890

LH

COVER ASSY

1шт.

12

48090122

Assy Pto

COVER

1шт.

13

48090129

Plate

COVER

1шт.

14

48091413

Pc-Dc Stopper

SLEEVE

2шт.

15

48121078

Assy, Pc Dc Stopper

WASHER

2шт.

16

48133044

Floor Extn Assy RH

COVER

1шт.

17

48133046

Assy Pcdc

COVER

1шт.

18

84543111

KNOB

Assy, W/Pin

2шт.

19

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

20

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

21

84292506

DECAL

Sector Plate, Hyd Lift

1шт.

22

87703329

RIVET,Pop, 3.15mm OD x 9mm L

Decal Sector Plate

3шт.
