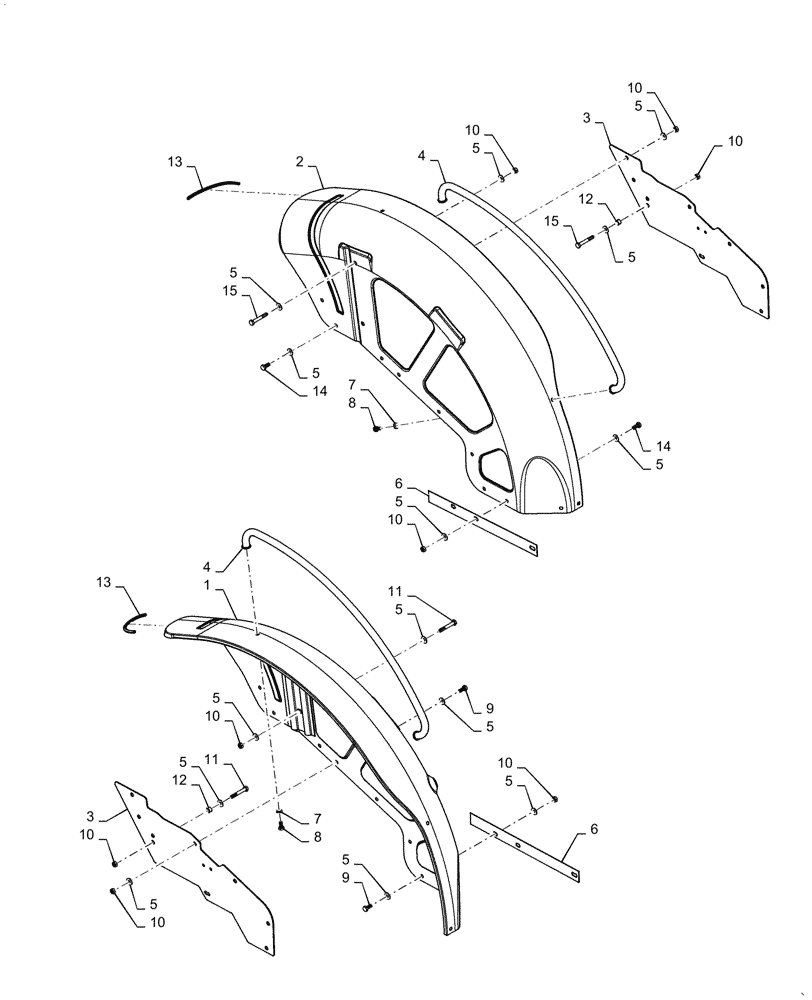

Запчасти Case IH FARMALL 50A (90.116.AC[01]) - FENDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47873237

FENDER

RH

1шт.

1

87521838

FENDER

Assy, RH Complete

1шт.

2

47873240

FENDER

LH

1шт.

2

87521837

FENDER

Assy, LH Complete

1шт.

3

47881883

WALL

Side

2шт.

3

84261346

FENDER

Side Wall

1шт.

4

5183479

HANDRAIL

Fender Grip Assy

2шт.

5

12646801

WASHER,10.2mm ID x 25mm OD x 2mm Thk

34шт.

6

87598279

SPACER

Rubber Strip

2шт.

7

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

8

15970621

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

9

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

10

12164711

NUT,M10 x 1.25, Cl 8

20шт.

11

15888821

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

4шт.

12

47808985

SPACER

ROPS

2шт.

13

87548116

RUBBER SEAL,600mm L

Beading Fender

2шт.

14

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

15

15971421

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

4шт.
