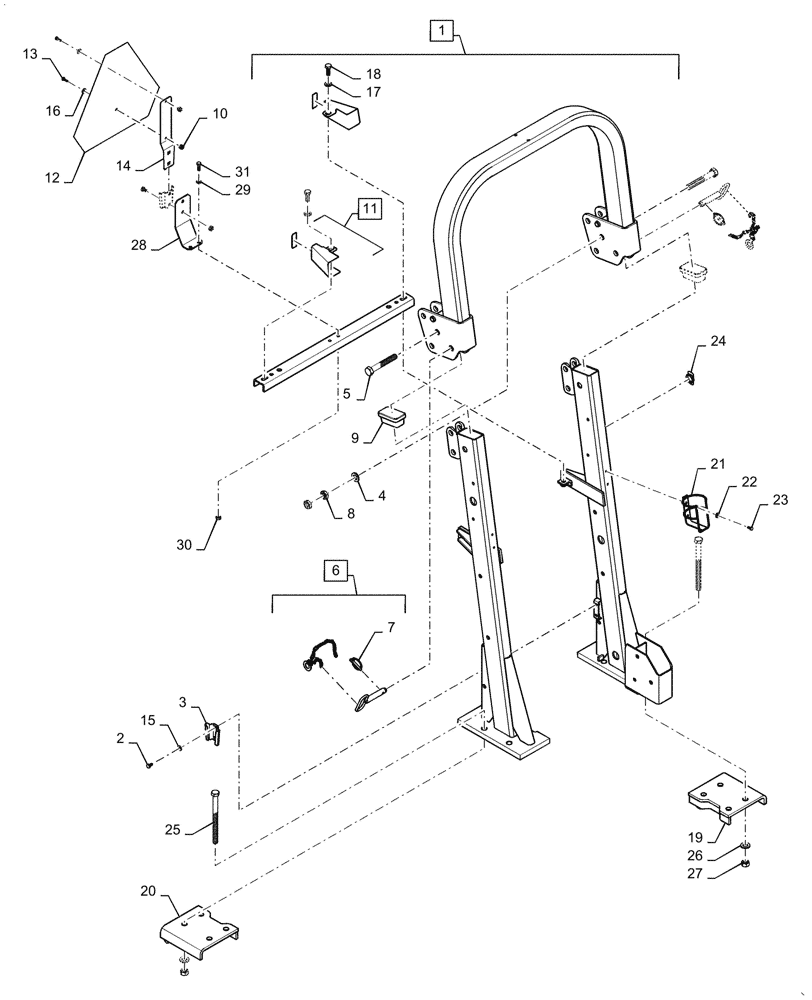

Запчасти Case IH FARMALL 50A (90.114.AQ[01]) - ROLL OVER PROTECTIVE STRUCTURE ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87617306

ROPS

Foldable Assembly, Incl 4 - 9,11,17,18

1шт.

2

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

4шт.

3

847590

BRACKET

Socket

2шт.

4

10520321

WASHER,18.4mm ID x 32mm OD x 4mm Thk

2шт.

5

15985621

BOLT,Hex, M18 x 1.5 x 120mm, Cl 8.8

2шт.

6

87558090

PIN

Assy, ROPS, Incl 9 - 11

2шт.

7

82823250

PIN

Linch

1шт.

7

84499211

Pin, Linch

PIN

1шт.

8

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

4шт.

9

87365545

PLUG

ROPS Post Top

2шт.

10

82824279

NUT

Nylock

2шт.

11

84313091

COVER

Assy, ROPS Rear RH, Incl 16, 17

1шт.

12

87308105

WARNING TRIANGLE

SMV Emblem

1шт.

13

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

15

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

14

195035

SUPPORT

Mount

1шт.

16

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

2шт.

17

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

18

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

19

84129778

BRACKET

Plate, Mounting Assy, ROPS - LH

1шт.

20

84129781

BRACKET

Plate, Mounting Assy, ROPS - RH

1шт.

21

84181085

HOLDER

Cup, Assy

1шт.

22

10571579

LOCK WASHER,M6

2шт.

23

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

24

87586005

CLIP

Bushing, Rubber

2шт.

25

15983021

BOLT,Hex, M16 x 200mm, Cl 8.8

8шт.

26

11194279

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

8шт.

27

12164111

NUT,M16, Cl 8

8шт.

28

87394135

BRACKET

1шт.

29

14496505

WASHER,Flat, 8.40mm ID x 17.00mm OD x 1.60mm, CST, ZND

2шт.

30

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

31

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.
