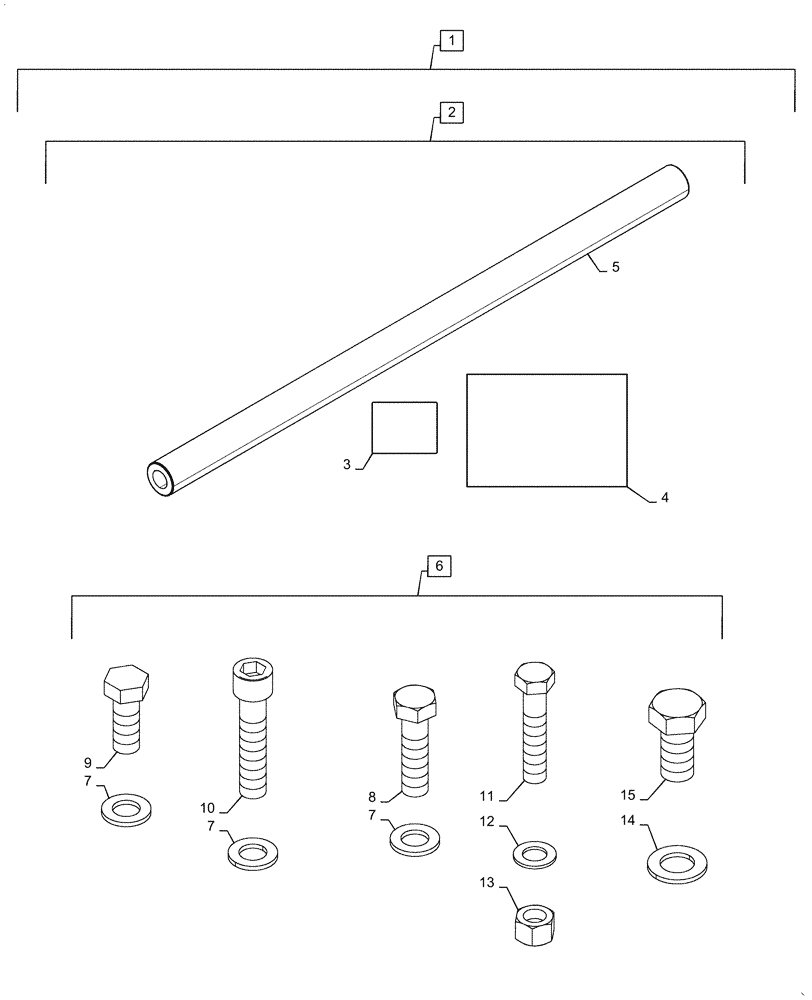

Запчасти Case IH FARMALL 50A (88.100.AG[01]) - TOOL BAG, LOADER (88) - ACCESSORIES

1

47749125

LOADER

Kit, Incl 2 - 15

1шт.

1

LDR14327637

BRACKET

Assy, Subframe Set Dm / Utility, Incl 2 - 15

1шт.

2

LDR60004151

BAG

Incl 3 - 15

1шт.

3

LDR60004152

DECAL

Decal

1шт.

4

LDR60004155

DECAL

Mounting Instruction

1шт.

5

LDR10418909

TIE-ROD

1шт.

6

LDR60004153

FASTENER

Kit, Incl 7 - 15

1шт.

7

LDR5013105

WASHER

Spacer

28шт.

8

LDR5002757

SCREW

12шт.

9

LDR5002153

BOLT

8шт.

10

LDR5050044

SCREW

8шт.

11

LDR5002141

SCREW

8шт.

12

LDR5013107

WASHER

Spacer

8шт.

13

LDR5011556

NUT

8шт.

14

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

Spacer

2шт.

15

LDR5002202

SCREW

2шт.
