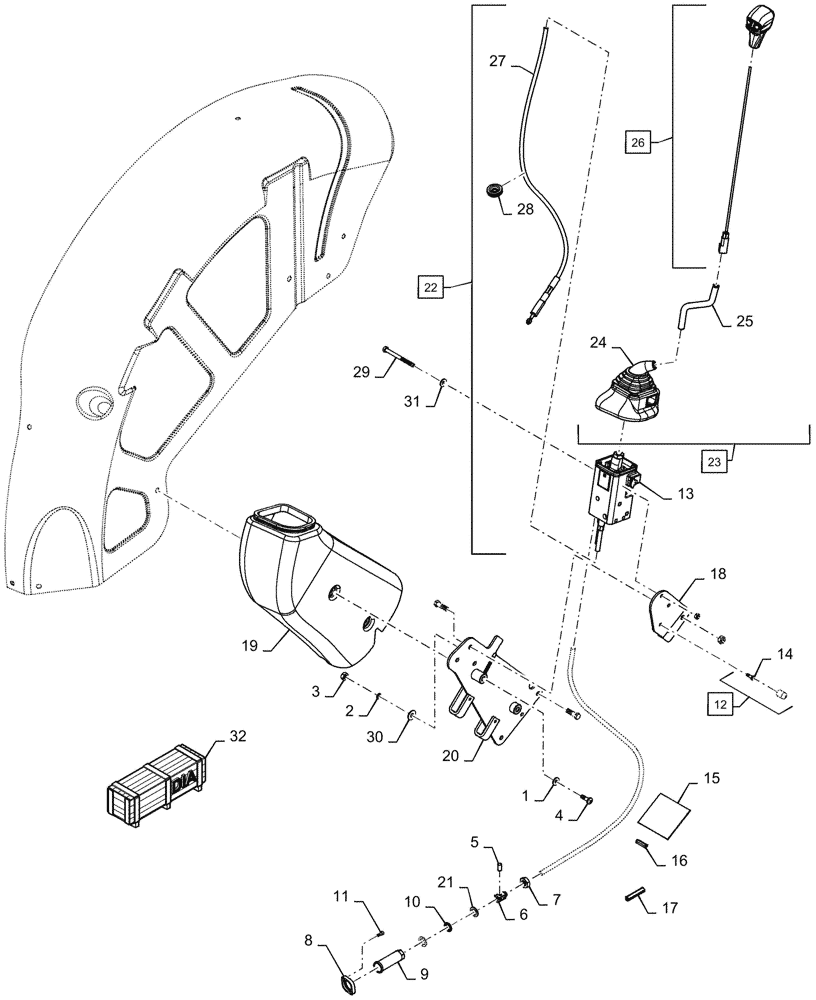

Запчасти Case IH FARMALL 50A (88.100.35[04]) - DIA KIT, REMOTE CONTROL VALVE (88) - ACCESSORIES

1

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.

2

10569479

LOCK WASHER,10.2mm ID x 16mm OD x 2.5mm Thk

5шт.

3

12164711

NUT,M10 x 1.25, Cl 8

5шт.

4

87648718

SCREW,Phil Pan Hd, M8 x 25mm, Cl 4.8

2шт.

5

87332065

PIN,9mm OD x 17mm L

2шт.

6

87303906

YOKE

Remote Control

2шт.

7

84589472

NUT,Hex, M16 x 1.5

2шт.

8

84589454

FLANGE,25mm ID

For Threaded Sleeve

2шт.

9

84589426

BUSHING,16mm ID x 28mm OD x 80mm L

Threaded

2шт.

10

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

Self-Centering

2шт.

11

47876290

SCREW

Tapered

4шт.

11

14304621

SCREW,M5 x 14mm, Cl 8.8, Full Thd

Hex Socket

4шт.

12

47822150

SPACER

Assy, Cover, Incl 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Block, Joystick, Incl in 22

1шт.

14

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

15

47814774

RUBBER TRACK

Bead Cover

1шт.

16

47814768

RUBBER STRIP

Track, Bead Footboard 1

1шт.

17

47813946

GROMMET

Rubber Track, Bead Footboard 2

1шт.

18

47813474

BRACKET

Assy, Joystick

1шт.

19

47813111

JOYSTICK

Cover, Midmount

1шт.

20

47802922

BRACKET

Assy, Midmount

1шт.

21

47529322

WASHER,16.2mm ID x 25mm OD x 2mm Thk

4шт.

22

47506242

JOYSTICK

Control, Diverter, Incl 23 - 28, 33

1шт.

23

47932905

CONTROL LEVER

Knob,Boot, Incl 24 - 26

1шт.

24

47411119

BOOT

Lever Joystick

1шт.

25

47411388

LEVER

1шт.

26

47414988

KNOB

1шт.

27

47506186

BOWDEN CONTROL

Total

2шт.

28

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

2шт.

29

16045121

BOLT,Hex, M8 x 1.25 x 95mm, Cl 8.8

2шт.

30

12646801

WASHER,10.2mm ID x 25mm OD x 2mm Thk

3шт.

31

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

32

731047012

DIA KIT, TRACTOR

For Mid Mount Valve with Joystick and Pipes for Loader Application

1шт.
