Запчасти Case IH FARMALL 50A (88.100.35[02]) - DIA KIT, 2ND REMOTE CONTROL VALVE WITH KICKOUT (88) - ACCESSORIES

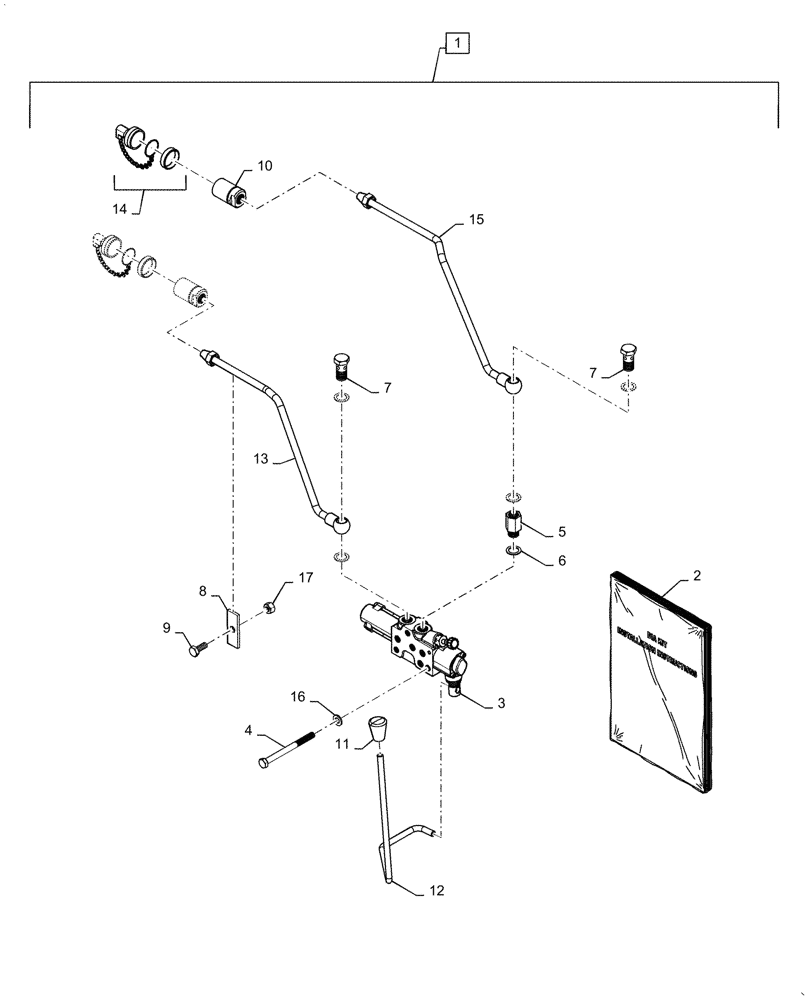

Схема запчастей Case IH FARMALL 50A - (88.100.35[02]) - DIA KIT, 2ND REMOTE CONTROL VALVE WITH KICKOUT (88) - ACCESSORIES
11
7
1
10
7
5
9
6
17
15
12
13
8
14
16
3
2
4

Артикул

Название

Примечание

Количество

1

731128012

2ND Remote Dia Kit With Lever, Incl 2 - 17

DIA KIT, TRACTOR

1шт.

1

48072860

Kit, Dia for 2ND Remote Valve with Kickout, Incl 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

Instruction, 731128012 Second Rear Remot, Incl in 1

1шт.

3

47675278

VALVE

Remote Kickout with Float

1шт.

4

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

3шт.

5

87398101

HYD CONNECTOR

1шт.

6

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

5шт.

7

82824891

BANJO BOLT,2-Way, M18 x 1.5 x 37mm

2шт.

8

87314513

BRACKET

1шт.

9

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

10

84405721

COUPLING, QUICK, FEM

2шт.

11

84350329

KNOB

Remote Valve Blue

1шт.

12

47884728

LEVER

Remote Valve Second

1шт.

13

84202429

RIGID TUBE

Pipe Assy

1шт.

14

5179577

PLUG,24mm, Blu

Dust Cap, Blue

2шт.

15

84202427

RIGID TUBE

Pipe Assy

1шт.

16

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

17

10790111

NUT,M10 x 1.25, Cl 8

1шт.

Выбрано товаров: 18
