Запчасти Case IH FARMALL 50A (88.100.35[01]) - DIA KIT, MID-MOUNT CONTROL VALVE LINES (88) - ACCESSORIES

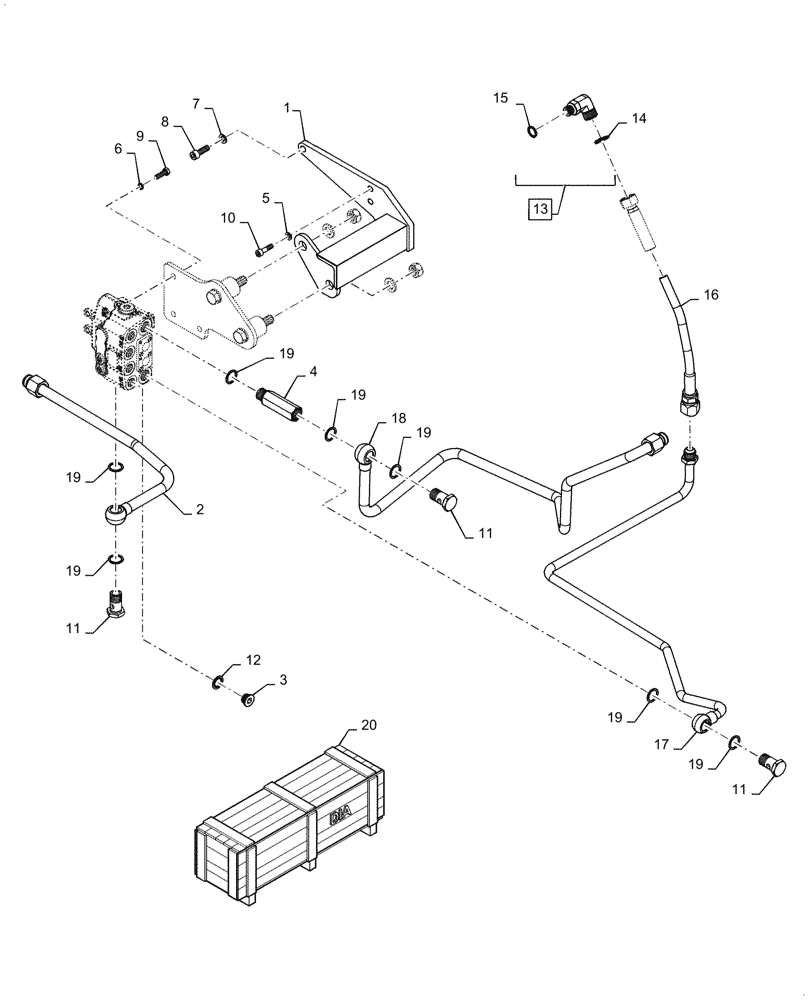

Схема запчастей Case IH FARMALL 50A - (88.100.35[01]) - DIA KIT, MID-MOUNT CONTROL VALVE LINES (88) - ACCESSORIES
19
19
19
7
16
11
19
10
18
19
8
1
19
5
19
13
11
14
4
6
20
11
12
3
15
9
2
17

Артикул

Название

Примечание

Количество

1

47792876

BRACKET

Assy, Mid Mount Valve

1шт.

2

47792430

PIPE

Assy, Mid Mount Valve to Delivery Rear

1шт.

3

10273111

PLUG,M18 x 1.5 x 13

Hex Socket

4шт.

4

47792894

ADAPTER

Fitting

1шт.

5

10516671

LOCK WASHER

Helical

2шт.

6

10569379

LOCK WASHER

Helical

3шт.

7

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Helical

1шт.

8

11306934

BOLT,Hex, M10 x 1.25 x 30, 10.9, Full Thd

1шт.

9

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

10

16605724

SCREW,M8 x 30mm, ZND

2шт.

11

5112588

BANJO BOLT,M22 x 1.5 x 40mm

3шт.

12

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

Special

4шт.

13

86579693

ELBOW,90 Degree, 1"-14 ORFS x M18 x 1.5 ORB

Incl 14, 15

1шт.

14

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

47413275

HOSE

Hydraulic

1шт.

17

47691632

PIPE

Assy, Mid Mount Valve to Hose Tank

1шт.

18

47762357

PIPE

Assy, From Pump to Mid Mount Valve

1шт.

19

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

7шт.

20

731047012

DIA KIT, TRACTOR

For Mid Mount Valve with Joystick and Pipes for Loader Application

1шт.

Выбрано товаров: 20
