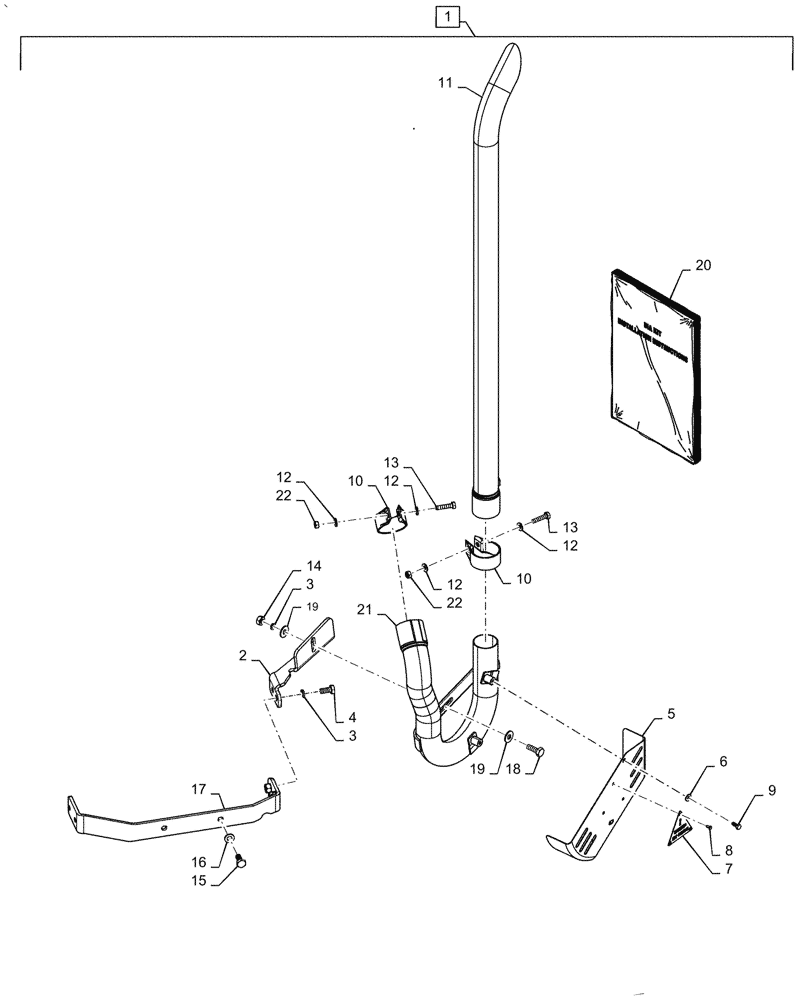

Запчасти Case IH FARMALL 50A (88.100.10[02]) - DIA KIT, UPDRAFT EXHAUST WITHOUT LOADER (88) - ACCESSORIES

1

48087290

Kit, Dia Updraft Exhaust Without Loader, Incl 2 - 22

1шт.

2

47871981

BRACKET

Updraft

1шт.

3

10569479

LOCK WASHER,10.2mm ID x 16mm OD x 2.5mm Thk

3шт.

4

15970621

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

5

84426203

GUARD

Assy,

1шт.

6

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

2шт.

7

87372859

DECAL

Warning

1шт.

8

5122484

RIVET

3шт.

9

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

14

12164711

NUT,M10 x 1.25, Cl 8

1шт.

15

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

Bolt

2шт.

16

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

17

47816811

BRACKET

Assy, Prefilter Updraft

1шт.

18

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

Bolt,

1шт.

19

12646801

WASHER,10.2mm ID x 25mm OD x 2mm Thk

2шт.

10

48049638

CLAMP

Exhaust Muffler

2шт.

11

48050585

PIPE

Assy, Vertical Pipe

1шт.

12

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

13

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

Bolt

2шт.

20

48089746

Manual, Installation Instruction

MANUAL

1шт.

21

48050583

PIPE

Assy, Exhaust Updraft

1шт.

22

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.
