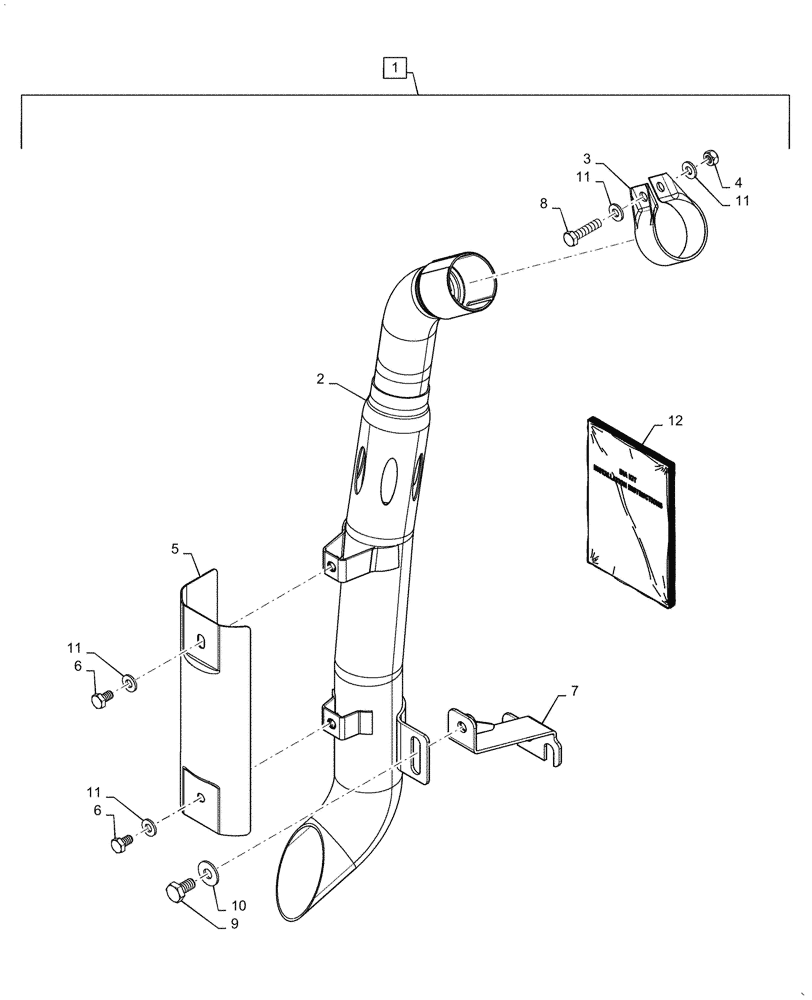

Запчасти Case IH FARMALL 50A (88.100.10[01]) - DIA KIT, DOWNSWEPT EXHAUST (88) - ACCESSORIES

1

48087288

Kit, Dia Downswept Exhaust

1шт.

2

48049635

PIPE

Assy, Exhaust Downswept

1шт.

3

48049638

CLAMP

Exhaust Muffler

1шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

5

47657165

GUARD

Exhaust Pipe Downswept

1шт.

6

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

Bolt,

2шт.

7

47871990

BRACKET

Assy, Support Exhaust Downswept

1шт.

8

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

Bolt

1шт.

9

15970421

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

Bolt

1шт.

10

12646801

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

11

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

12

48089749

Manual, Installation Instruction

MANUAL

1шт.
