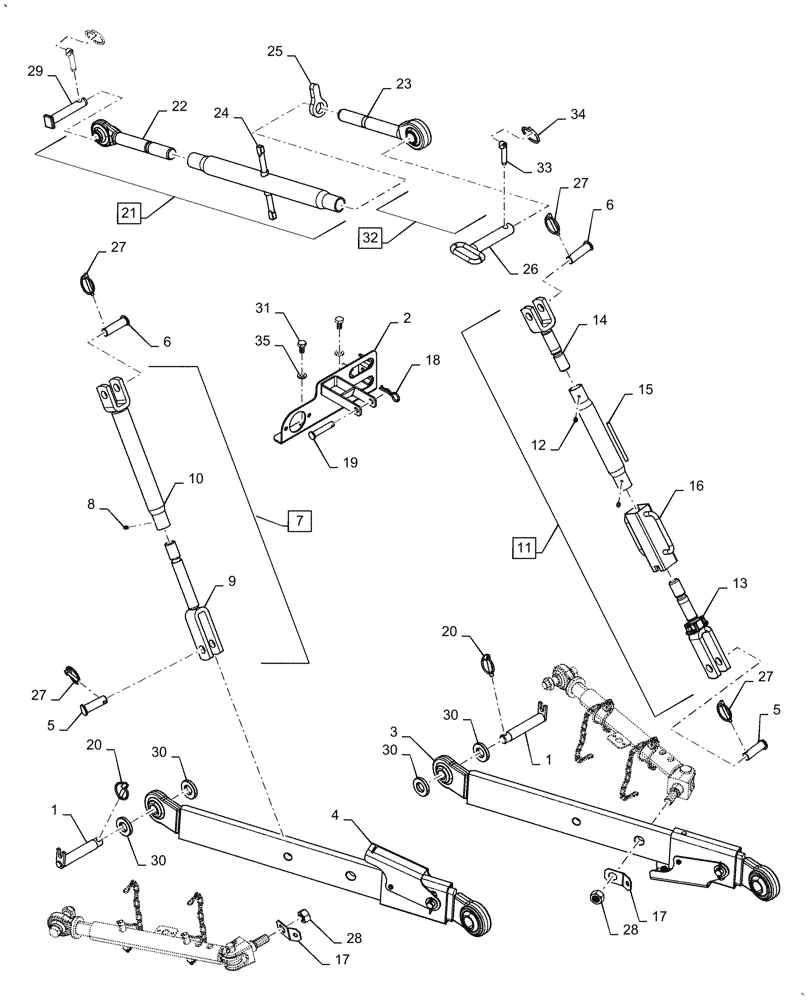

Запчасти Case IH FARMALL 50A (37.120.AX[05]) - THREE POINT HITCH WITH COMBI BALL, UPPER LINK AND LIFT ROD ASSY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84296970

PIN,22mm OD x 133mm L

Assy, Lower Link Mounting

2шт.

2

47943467

BRACKET

Assy, Rear Auxiliary Valve

1шт.

3

47835668

LINK

Link Assy, Telescopic Lower LH

1шт.

4

47835671

LINK

Link Assy, Telescopic Lower RH

1шт.

5

87571328

PIN

Lower, Lift Rod

2шт.

6

87571327

PIN

Upper, Lift Rod

2шт.

7

87560630

ROD

Lift LH, Incl 8 - 10

1шт.

8

933756R1

LUBE NIPPLE,M6 x 1

Fitting

1шт.

9

84366625

FORK

Assy

1шт.

10

84366623

TUBE

Assy, Lift Rod

1шт.

11

87571326

ROD

Lifting RH, Incl 12 - 16

1шт.

12

933756R1

LUBE NIPPLE,M6 x 1

Fitting

2шт.

13

84366641

FORK

Assy, Upper Part Lift Rod

1шт.

14

84366633

FORK

Assy

1шт.

15

84366632

TUBE

Assy, Lift Rod

1шт.

16

84266170

HANDLE

Right Lift Link

1шт.

17

4959777

PLATE

Lower Link

2шт.

18

82823007

SPRING

Pin, Top Link Holding Bracket

1шт.

19

82823006

PIN

Top Link Holding Bracket

1шт.

20

82823243

PIN,8mm OD

2шт.

21

84513101

UPPER LINK

Top Assy, Incl 22 - 25

1шт.

22

47392075

ELASTIC TIE ROD

Assy, RH Upper

1шт.

23

47392076

ELASTIC TIE ROD

Assy, LH

1шт.

24

47392077

TUBE

Turnbuckle Assy

1шт.

25

47392078

NUT

1шт.

26

82834152

PIN

Link Sleeve

1шт.

27

47498580

PIN

Assy, Linch

4шт.

28

12164211

NUT,M18 x 1.5, Cl 8

2шт.

29

87738504

PIN

Top Link

1шт.

30

87738498

SPACER

4шт.

31

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

32

81810390

LINCH PIN,11.18mm OD

Incl 44, 45

2шт.

33

82000108

PIN,11.2mm OD x 50.8mm L

Cotter, 3 Point Linkage

1шт.

34

82000101

PIN,41.15mm OD x 1.62 Thk

1шт.

35

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.
