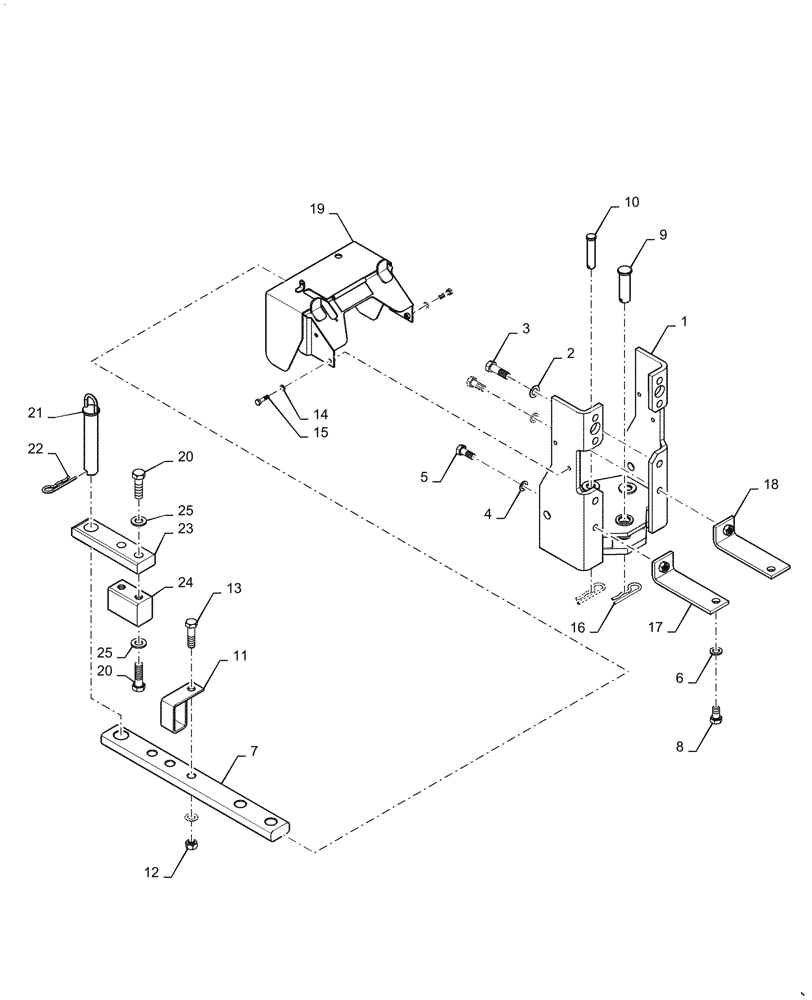

Запчасти Case IH FARMALL 50A (37.100.AA[01]) - SWINGING DRAWBAR, ASSY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87490020

BRACKET

Support, Drawbar

1шт.

2

10572179

LOCK WASHER,M16

7шт.

3

82834828

SCREW,Hex, M16 x 2 x 50mm

Front Ballast Support

6шт.

4

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

2шт.

5

14254531

BOLT,Hex, M14 x 1.5 x 35mm, Cl 10.9

Lock

2шт.

6

10520221

WASHER,16.4mm ID x 28mm OD x 3mm Thk

2шт.

7

87370434

DRAWBAR

Swinging

1шт.

8

87536544

SCREW,Hex, M16 x 1.5 x 30mm, Gr 10.9

2шт.

9

47615380

PIN

Towing Bar Front Pivot

1шт.

10

87680771

PIN

2шт.

11

87302456

SUPPORT

Bracket, Intermediate Safety Chain

1шт.

12

12164111

NUT,M16, Cl 8

1шт.

13

15981121

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

1шт.

14

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

15

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

16

82824022

COTTER PIN,12.25mm x 95.5mm L

Hair

3шт.

17

47688202

BRACKET

Assy, Drawbar Support - RH

1шт.

18

47686979

BRACKET

Assy, Drawbar Support - LH

1шт.

19

47686965

PTO

Assy, Cover

1шт.

20

14271934

SCREW,Hex, M18 x 1.5 x 60mm, Cl 10.9

Lock

4шт.

21

5155491

PIVOT

Tow Bar, End

1шт.

22

82824022

COTTER PIN,12.25mm x 95.5mm L

Hair

1шт.

23

84337191

DRAWBAR

Pilot Upper

1шт.

24

84337192

SPACER

Drawbar

1шт.

25

82827154

BELLEVILLE WASHER,19mm ID x 36mm OD x 3.6mm Thk

4шт.
