Запчасти Case IH FARMALL 50A (35.220.AA[01]) - AUXILIARY HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

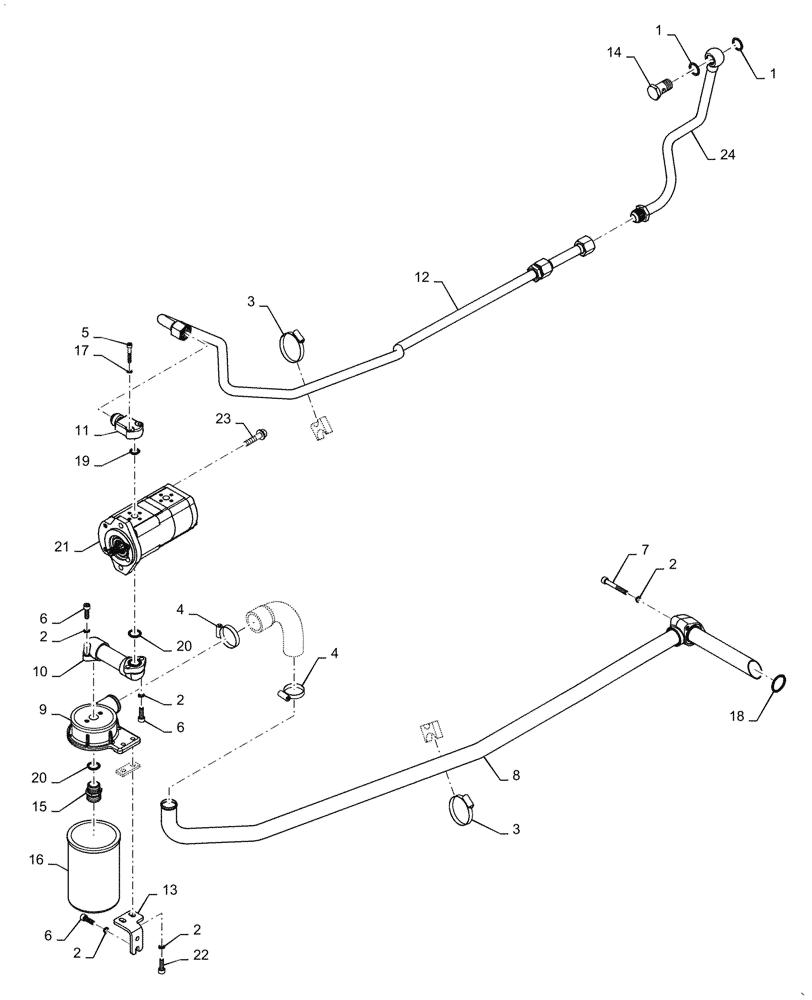

Схема запчастей Case IH FARMALL 50A - (35.220.AA[01]) - AUXILIARY HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS
20
7
12
6
24
20
3
4
4
21
1
22
14
2
10
19
8
6
11
2
13
2
5
17
6
18
15
16
1
9
2
2
3
23

Артикул

Название

Примечание

Количество

1

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

2

14496505

WASHER,Flat, 8.40mm ID x 17.00mm OD x 1.60mm, CST, ZND

2шт.

3

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

2шт.

4

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

2шт.

5

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

6

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

4шт.

7

14308924

HEX SOC SCREW,M8 x 1.25 x 60mm, Cl 8.8

2шт.

8

47669795

PIPE

Suction Assy, Hydraulic

1шт.

9

47669808

FILTER HEAD

Support, Oil

1шт.

10

47671254

PIPE

Assy, Suction Front

1шт.

11

47791970

ADAPTER

Delivery Front

1шт.

12

47794650

PIPE

Assy, Delivery Front, Hydraulic

1шт.

13

47856483

BRACKET

Filter Support

1шт.

14

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

15

5116767

ADAPTER,1-1/8" - 16 x M25 X 1.5

Filter Cartridge

1шт.

16

87391716

FILTER

Hydraulic

1шт.

17

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

18

14463980

O-RING,-221, 70 Duro, 1.421" ID x .139" Thk

1шт.

19

47792413

RING

Sealing Ring

1шт.

20

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

2шт.

21

47470514

PUMP

Hydraulic Tandem Assy

1шт.

22

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

2шт.

23

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

24

47672431

PIPE

1шт.

Выбрано товаров: 24
