Запчасти Case IH FARMALL 50A (35.204.BS[01]) - MID-MOUNT CONTROL VALVE (35) - HYDRAULIC SYSTEMS

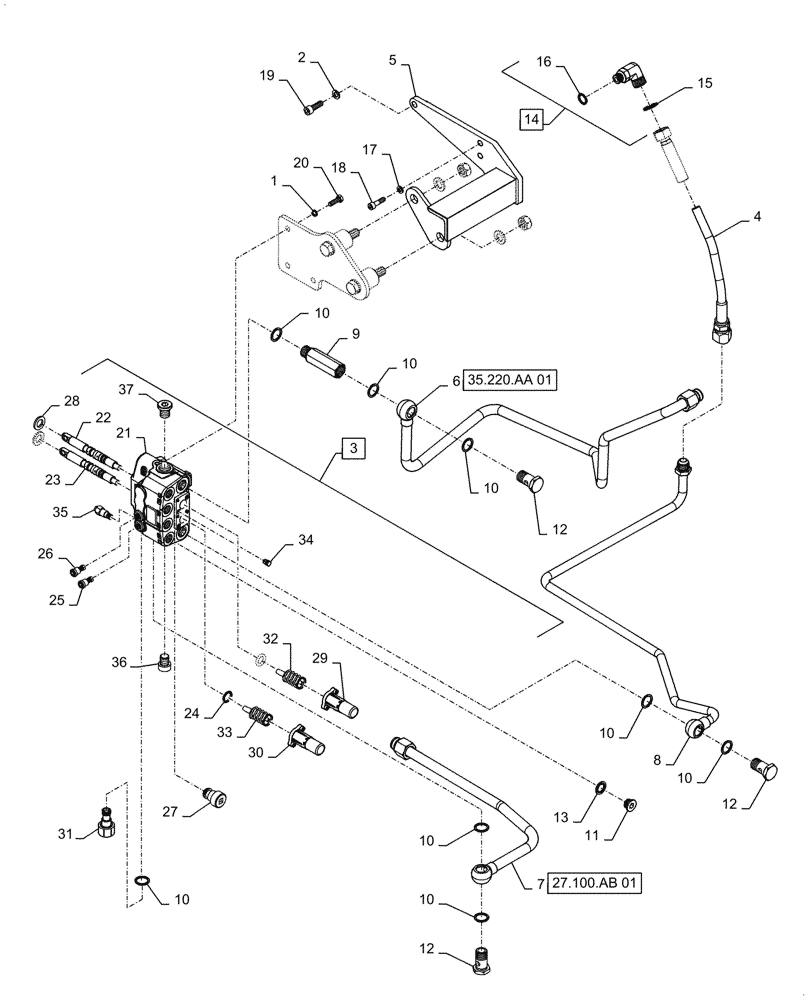

Схема запчастей Case IH FARMALL 50A - (35.204.BS[01]) - MID-MOUNT CONTROL VALVE (35) - HYDRAULIC SYSTEMS
17
10
10
31
10
13
32
26
35.220.aa 01
10
29
16
34
12
28
11
20
10
8
36
10
27.100.ab 01
10
12
24
15
14
4
12
33
21
7
18
27
9
3
22
19
5
23
6
37
35
2
10
30
1
25

Артикул

Название

Примечание

Количество

1

10569379

LOCK WASHER

3шт.

2

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

3

47807044

VALVE

Hydraulic, Front Loader Mid Mount With Relief Valve, Incl 21 - 37

1шт.

4

47413275

HOSE

Assy

1шт.

5

47792876

BRACKET

Assy, Mid Mount Valve

1шт.

6

47762357

PIPE

Assy, Pump to Mid Mount Valve

1шт.

7

47792430

PIPE

Assy, Mid Mount Valve to Delivery Rear

1шт.

8

47691632

PIPE

Assy, Mid Mount Valve to Hose Tank

1шт.

9

47792894

ADAPTER

1шт.

10

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

8шт.

11

10273111

PLUG,M18 x 1.5 x 13

4шт.

12

5112588

BANJO BOLT,M22 x 1.5 x 40mm

3шт.

13

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

Special

4шт.

14

86579693

ELBOW,90 Degree, 1"-14 ORFS x M18 x 1.5 ORB

Incl 15 and 16

1шт.

15

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

17

10516671

LOCK WASHER

2шт.

18

16605724

SCREW,M8 x 30mm, ZND

2шт.

19

11306934

BOLT,Hex, M10 x 1.25 x 30, 10.9, Full Thd

1шт.

20

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

21

47812347

BODY

1шт.

22

47812348

SPOOL

1шт.

23

47812349

SPOOL

1шт.

24

47812350

RING

2шт.

25

47812351

VALVE

Kit

1шт.

26

47812352

VALVE

Kit

1шт.

27

47812354

KIT

2шт.

28

47812355

RING

2шт.

29

47812356

CAP

End

1шт.

30

47812357

CAP

End

1шт.

31

47812358

JOINT

1шт.

32

47812359

SPOOL

Control

1шт.

33

47812361

KIT

1шт.

34

47812362

PLUG

1шт.

35

47812363

VALVE

1шт.

36

47812364

PLUG

1шт.

37

47812365

PLUG

1шт.

38

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Выбрано товаров: 38
