Запчасти Case IH FARMALL 50A (35.204.BE[02]) - REMOTE CONTROL VALVE WITH KICKOUT FEATURE (35) - HYDRAULIC SYSTEMS

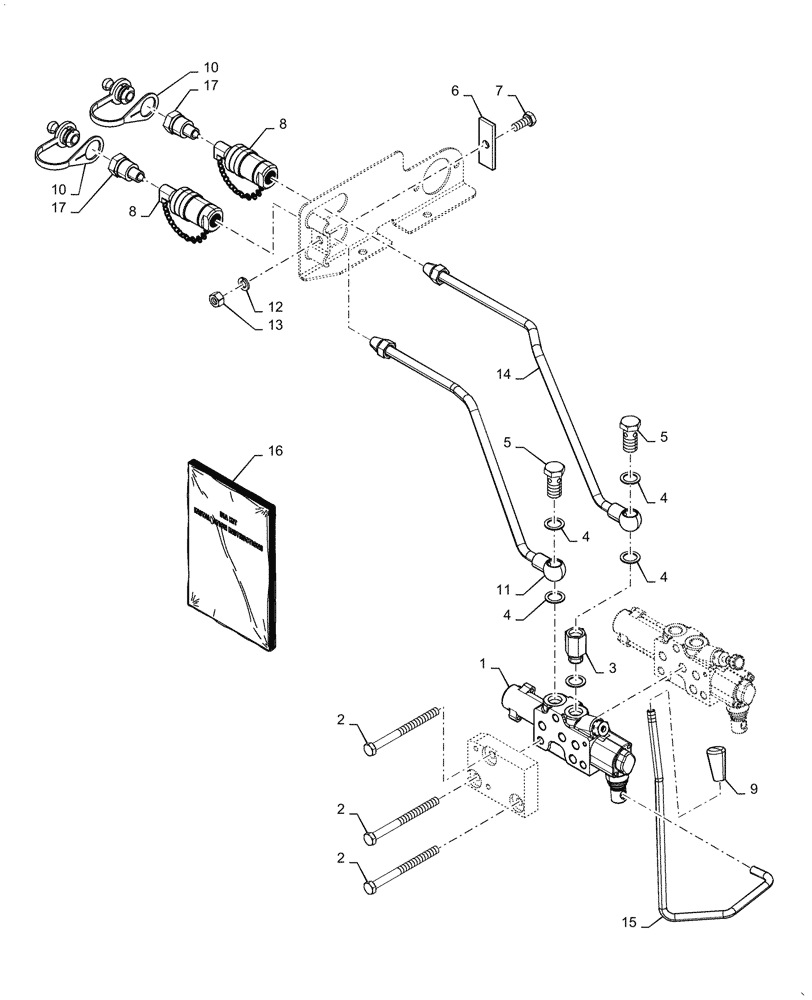

Схема запчастей Case IH FARMALL 50A - (35.204.BE[02]) - REMOTE CONTROL VALVE WITH KICKOUT FEATURE (35) - HYDRAULIC SYSTEMS
4
7
10
17
8
12
1
2
6
16
11
10
9
2
4
5
17
4
14
2
5
3
8
4
15
13

Артикул

Название

Примечание

Количество

1

47675278

VALVE

Remote Kickout W/ Float

1шт.

Components are NSS

1шт.

2

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

3шт.

3

87398101

HYD CONNECTOR

Remote Control Valve

1шт.

4

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

5шт.

5

82824891

BANJO BOLT,2-Way, M18 x 1.5 x 37mm

2шт.

6

87314513

BRACKET

Rigid Pipe

1шт.

7

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

8

84405721

COUPLING, QUICK, FEM

Rigid Pipe

2шт.

9

84350329

KNOB

Remote Valve Blue

1шт.

10

5179577

PLUG,24mm, Blu

Dust Cap

2шт.

11

84202429

RIGID TUBE

Pipe Assy,

1шт.

12

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

13

10790111

NUT,M10 x 1.25, Cl 8

1шт.

14

84202427

RIGID TUBE

Pipe Assy

1шт.

15

47884728

LEVER

1шт.

16

47874385

MANUAL

1шт.

17

84405726

QUICK MALE COUPLING

1шт.

Выбрано товаров: 18
