Запчасти Case IH FARMALL 50A (35.204.BE[01]) - REMOTE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

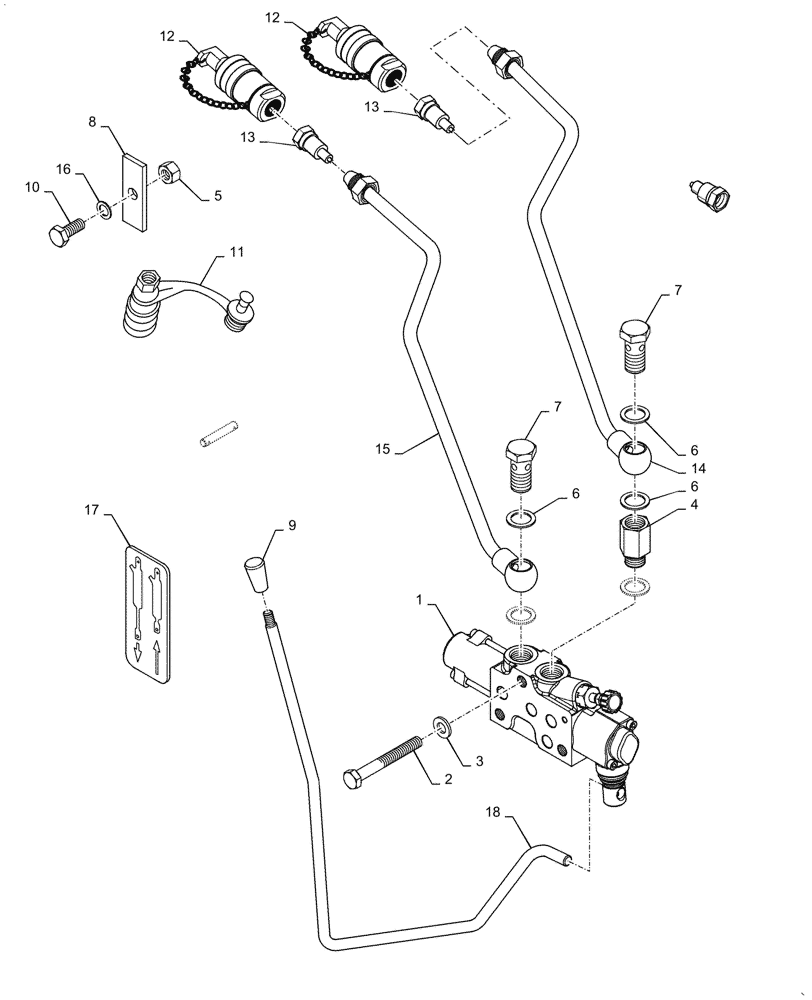

Схема запчастей Case IH FARMALL 50A - (35.204.BE[01]) - REMOTE CONTROL VALVE (35) - HYDRAULIC SYSTEMS
6
14
6
7
3
12
13
18
5
7
11
4
8
6
10
15
13
9
16
17
12
1
2

Артикул

Название

Примечание

Количество

1

47675276

VALVE

Assy, Remote Float With Detent

1шт.

2

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

3шт.

3

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

3шт.

4

87398101

HYD CONNECTOR

Adaptor

1шт.

5

10790111

NUT,M10 x 1.25, Cl 8

1шт.

6

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

5шт.

7

82824891

BANJO BOLT,2-Way, M18 x 1.5 x 37mm

2шт.

8

87314513

BRACKET

Mounting Front

1шт.

9

5091856

KNOB

Valve Command Arm

1шт.

10

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

11

5179576

PLUG,24mm, Green

Dust Cap, Green

2шт.

12

84405721

COUPLING, QUICK, FEM

2шт.

13

84405726

QUICK MALE COUPLING

1шт.

14

84202427

RIGID TUBE

Pipe Assy, Remote 1, Port B

1шт.

15

84202429

RIGID TUBE

Pipe, Assy Remote 1, Port A

1шт.

16

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

17

5119109

DECAL

Plate

2шт.

18

47842080

LEVER

Assy, Rear Remote

1шт.

Выбрано товаров: 18
