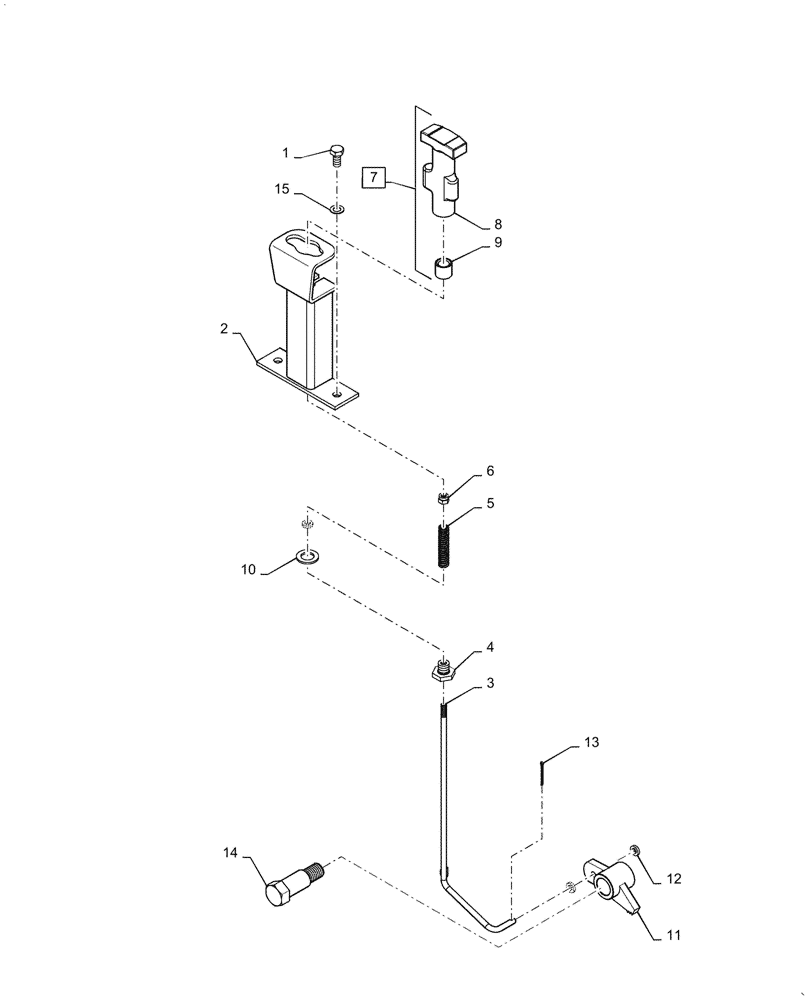

Запчасти Case IH FARMALL 50A (33.110.AA[01]) - PARKING BRAKE CONTROL INDEPENDENT (33) - BRAKES & CONTROLS

1

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

2

84181082

BRACKET

Assy Parking Brake Lever

1шт.

3

84331228

ROD

Parking Brake Assy

1шт.

4

82822977

BOLT,M14 x 1.5 x 11mm

Parking Brake

1шт.

5

82822974

SPRING

Parking Brake

1шт.

6

82824279

NUT

Nylock

1шт.

7

84293171

KNOB

Parking Brake Assy, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Knob, Parking, Incl in 7

1шт.

9

82822973

BUSHING

Insert Parking Brake

1шт.

10

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

1шт.

11

84279137

PAWL

Assy, Parking Brake

1шт.

12

12649601

WASHER,6.15mm ID x 11.5mm OD x 2.5mm Thk

1шт.

13

10734401

COTTER PIN,M2 x 22

1шт.

14

82825621

PIN

Parking Pawl

1шт.

15

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.
