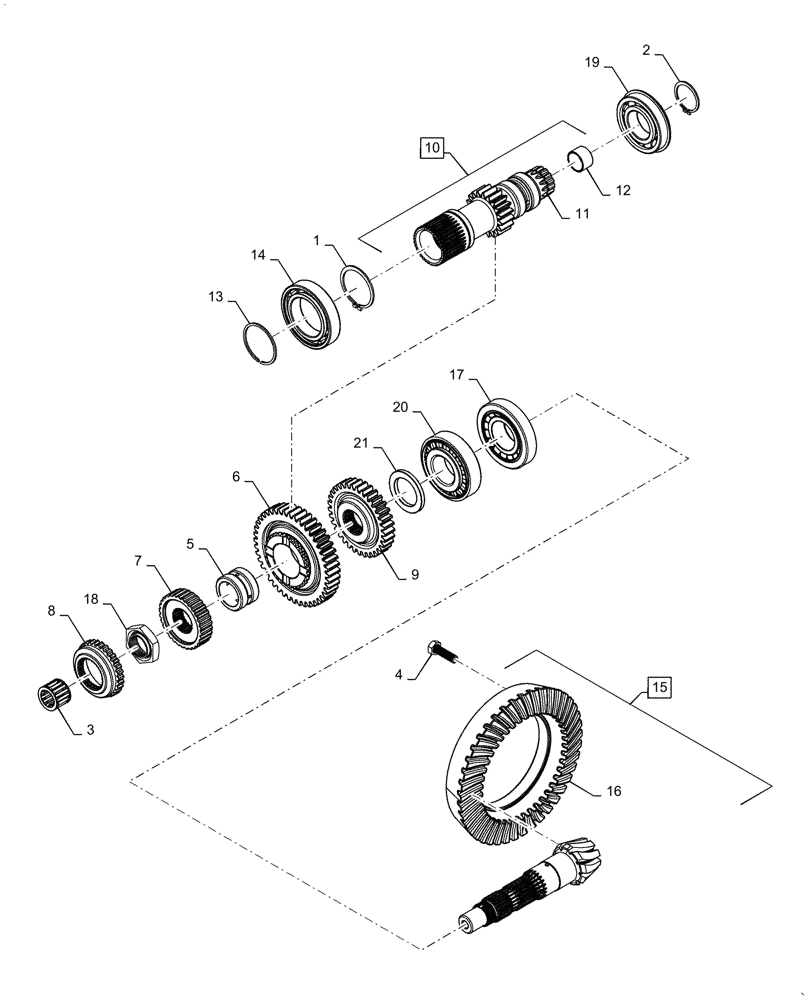

Запчасти Case IH FARMALL 50A (27.304.AD[01]) - GEARBOX (27) - REAR AXLE SYSTEM

1

11069576

SNAP RING,M55, Ext

Retaining

1шт.

2

11068876

SNAP RING,M40, Ext

Retaining

1шт.

3

87370425

NEEDLE BEARING,25.4mm ID x 33.34mm OD x 25.4mm W

Roller

1шт.

4

87747707

LOCK BOLT,Hex, M10 x 1.25 x 35mm

10шт.

5

87370382

BUSHING

Driven Gear Range

1шт.

6

87370385

GEAR

Low Range Output

1шт.

7

87370388

HUB

Range

1шт.

8

87370474

GEAR

High Direct

1шт.

9

84283276

DRIVING GEAR

1шт.

10

84319173

SHAFT

Assy Range With Bush, Incl 11 And 12

1шт.

11

84319174

SHAFT

Drive Range 2.5 Module 19Teeth

1шт.

12

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

13

84252237

RING

Snap External

1шт.

14

28042510

BALL BEARING,55mm x 90mm x 18mm

1шт.

15

84367891

BEVEL PINION

Gear Ring Assy. 09-42 Teeth, Incl 17

1шт.

16

87593475

GEAR

Crown Wheel

1шт.

17

84384239

BEARING ASSY

Roller Tapered

1шт.

18

87370422

NUT

Pinion Shaft

1шт.

19

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

20

84384241

SPH ROLLER BEARING

Tapered

1шт.

21

84553146

SPACER

Pinion Shaft

1шт.
