Запчасти Case IH FARMALL 50A (27.126.AG[01]) - SIDE FINAL DRIVES HOUSING, REAR (27) - REAR AXLE SYSTEM

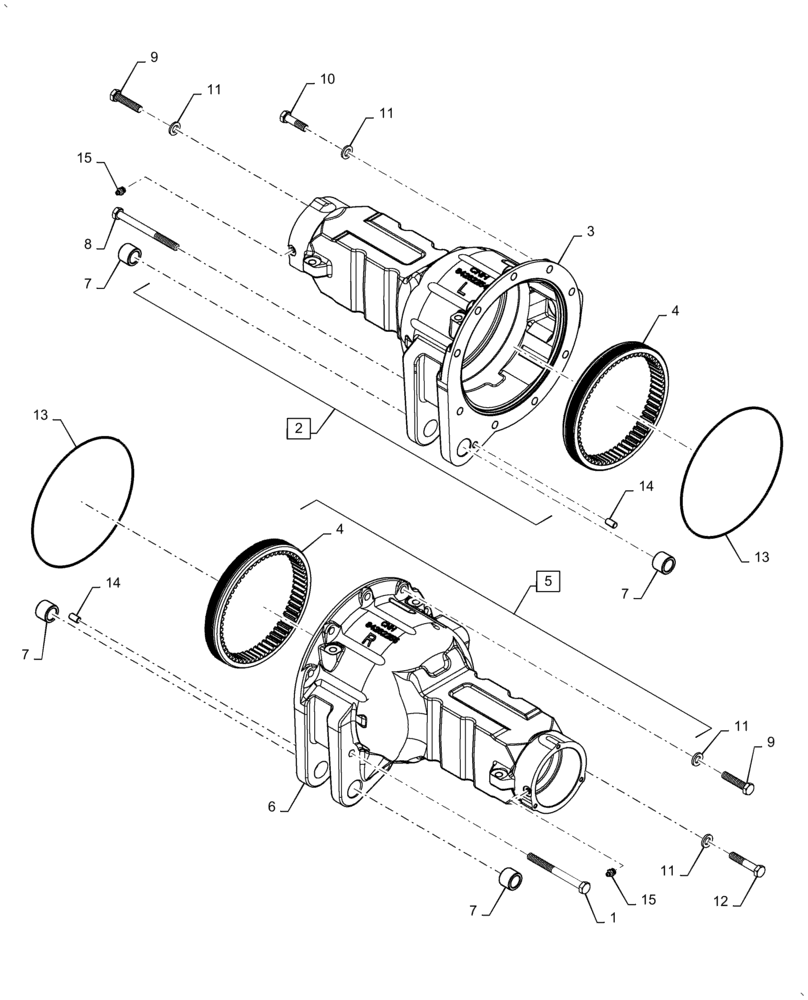

![Схема запчастей Case IH FARMALL 50A - (27.126.AG[01]) - SIDE FINAL DRIVES HOUSING, REAR (27) - REAR AXLE SYSTEM](https://partsell.ru/storage/images/caseih/5274451.png)
10
9
7
12
15
7
11
15
11
2
3
14
11
6
5
9
8
14
13
1
4
7
13
4
11
7
№
Артикул
Название
Примечание
Количество
1
15541921
BOLT,Hex, M12 x 1.25 x 130mm, Cl 8.8
2шт.
2
84262256
HOUSING
Assy, Trumpet LH with Ring Gear, Incl 3, 4
1шт.
3
84262254
FINAL DRIVE HOUSING
LH
1шт.
4
87387597
GEAR
Final Drive Internal Gear
2шт.
5
84262257
HOUSING
Assy, Trumpet RH with Ring Gear, Incl 4, 6
1шт.
6
84262255
FINAL DRIVE HOUSING
RH
1шт.
7
87387624
BUSHING
4шт.
8
15542021
SCREW,Hex, M12 x 1.25 x 140mm, Cl 8.8
2шт.
9
15540924
SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8
7шт.
10
15540721
SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd
5шт.
11
11198670
BELLEVILLE WASHER,M12 Bolt Size x 24mm OD
14шт.
12
15541134
BOLT,Hex, M12 x 1.25 x 65mm, Cl 10.9
2шт.
13
87616310
O-RING,245mm ID x 3.53mm Width
1шт.
14
87370424
DOWEL
Pin
2шт.
Выбрано товаров: 15
