Запчасти Case IH FARMALL 50A (27.120.AF[01]) - PLANETARY FINAL DRIVE (27) - REAR AXLE SYSTEM

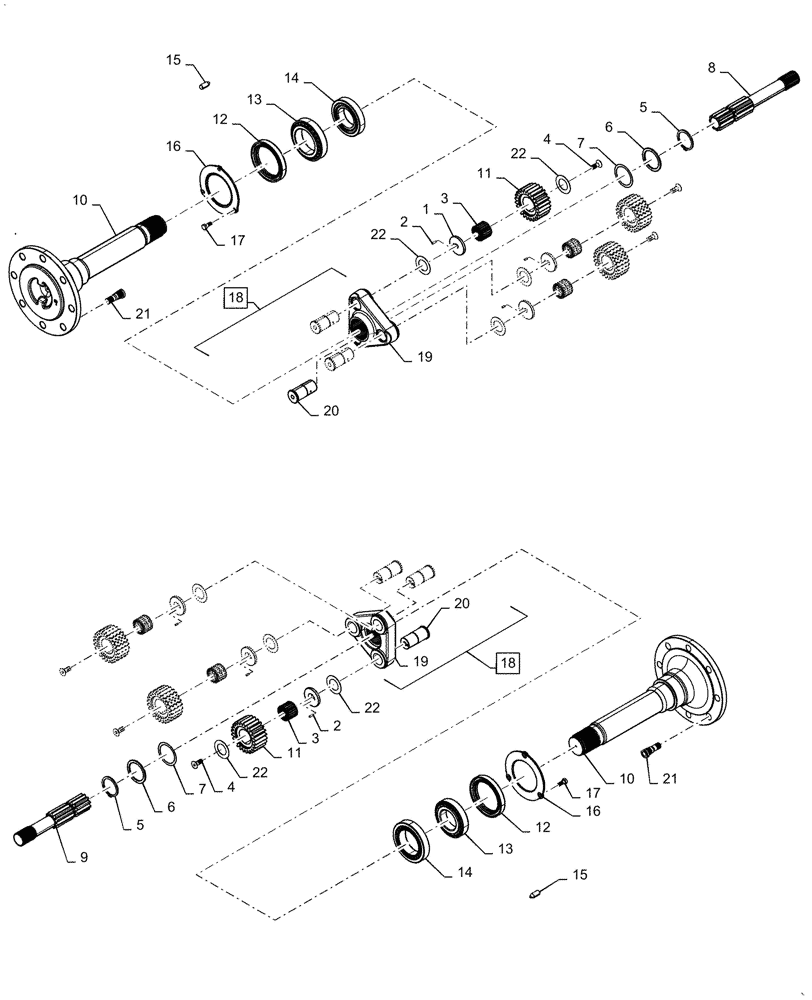

Схема запчастей Case IH FARMALL 50A - (27.120.AF[01]) - PLANETARY FINAL DRIVE (27) - REAR AXLE SYSTEM
22
5
16
4
13
7
18
2
2
10
22
14
20
10
19
16
20
11
6
17
8
15
11
12
12
18
14
6
5
4
1
21
7
3
22
3
15
19
17
9
21
22
13

Артикул

Название

Примечание

Количество

1

87654057

SPACER

6шт.

2

584787

DOWEL

Pin

6шт.

3

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

Needle, Final Drives

6шт.

4

14442621

SCREW,Flat Csk Hd, M10 x 1.25 x 25mm, Cl 8.8

6шт.

5

5138419

SNAP RING,M50

Circlip

2шт.

6

87387605

SPACER

Rear Axle

2шт.

7

87387607

SHIM

Register Ring, Rear Axle Spacer

1шт.

8

87370376

SHAFT

Sun LH

1шт.

9

87370377

SHAFT

Sun RH

1шт.

10

84486181

AXLE

Driving Wheel, Heavy Duty

2шт.

11

87387887

DRIVEN SPROCKET

Pinion, Final Drive Heavy Duty

6шт.

12

47444676

SEAL

Oil

2шт.

13

26799990

TAPERED BEARING,55mm ID x 100mm OD x 22.75mm W

Roller

2шт.

14

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

Roller, Tapered

2шт.

15

87590370

DOWEL

Pin

4шт.

16

84544666

COVER,4mm Thk

Seal, Oil

2шт.

17

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

18

87387592

PLANETARY GEAR

Carrier, Assy, Incl 20, 21

2шт.

19

87387593

PLANETARY GEAR

Carrier

1шт.

20

87387595

PIN

Final Drive Planet

3шт.

21

84513079

STUD

Axle Shaft

16шт.

22

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.

Выбрано товаров: 22
