Запчасти Case IH FARMALL 50A (27.106.AC[02]) - DIFFERENTIAL GEAR (27) - REAR AXLE SYSTEM

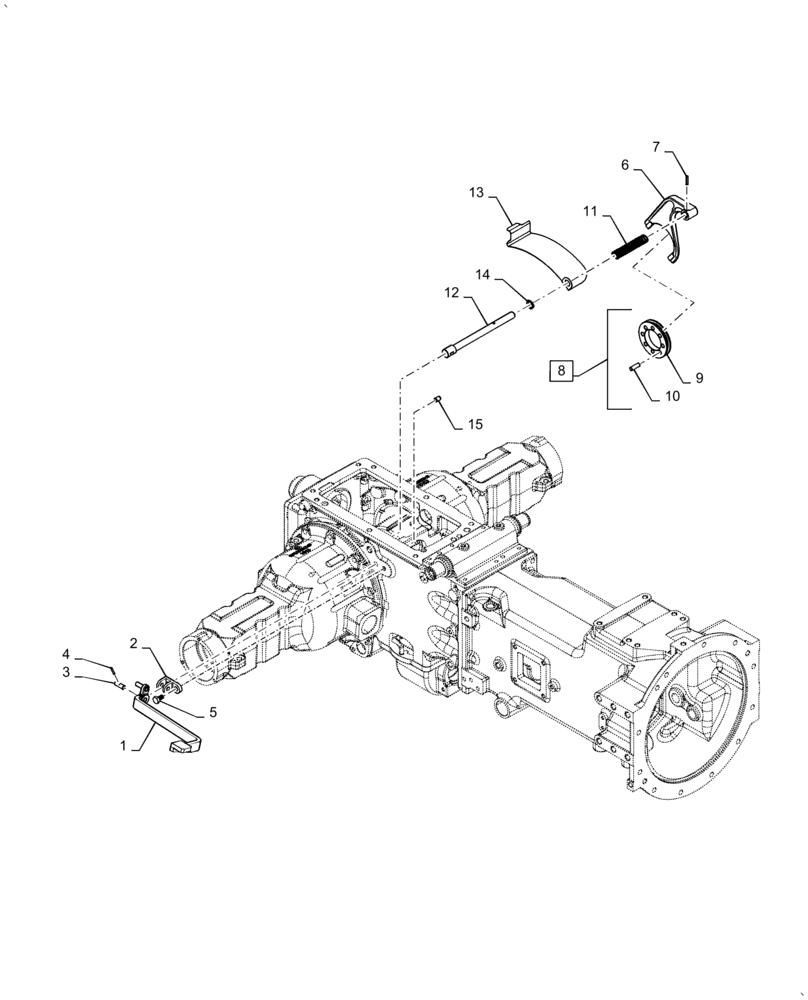

Схема запчастей Case IH FARMALL 50A - (27.106.AC[02]) - DIFFERENTIAL GEAR (27) - REAR AXLE SYSTEM
12
11
6
15
13
2
4
3
8
5
9
14
10
7
1

Артикул

Название

Примечание

Количество

1

87370469

PEDAL

Lock, Differential, Assembly

1шт.

2

82827066

SUPPORT

Differential Lock Control Pedal

1шт.

3

87497666

PIN

Lock

1шт.

4

82824380

PIN,3.3mm OD x 26mm L, Slotted

Roll

1шт.

5

15970421

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

6

47795412

FORK

Differential Lock

1шт.

7

14166170

ROLL PIN

Slotted, Spring

1шт.

8

87370537

SHANK

Differential Lock Ring Assy, Incl 9, 10

1шт.

9

87370368

RING

Differential Lock Sleeve

1шт.

10

87370369

PIN

Differential Lock

8шт.

11

87370467

SPRING

Fork Differential

1шт.

12

87370466

SIDE RAIL

Fork Differential

1шт.

13

87749577

GUARD

1шт.

14

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

15

10839710

DOWEL,M10 x 15.00mm

Pin, Parallel, Chamfer R50

1шт.

Выбрано товаров: 15
