Запчасти Case IH FARMALL 50A (27.106.AC[01]) - DIFFERENTIAL GEAR, ASSY (27) - REAR AXLE SYSTEM

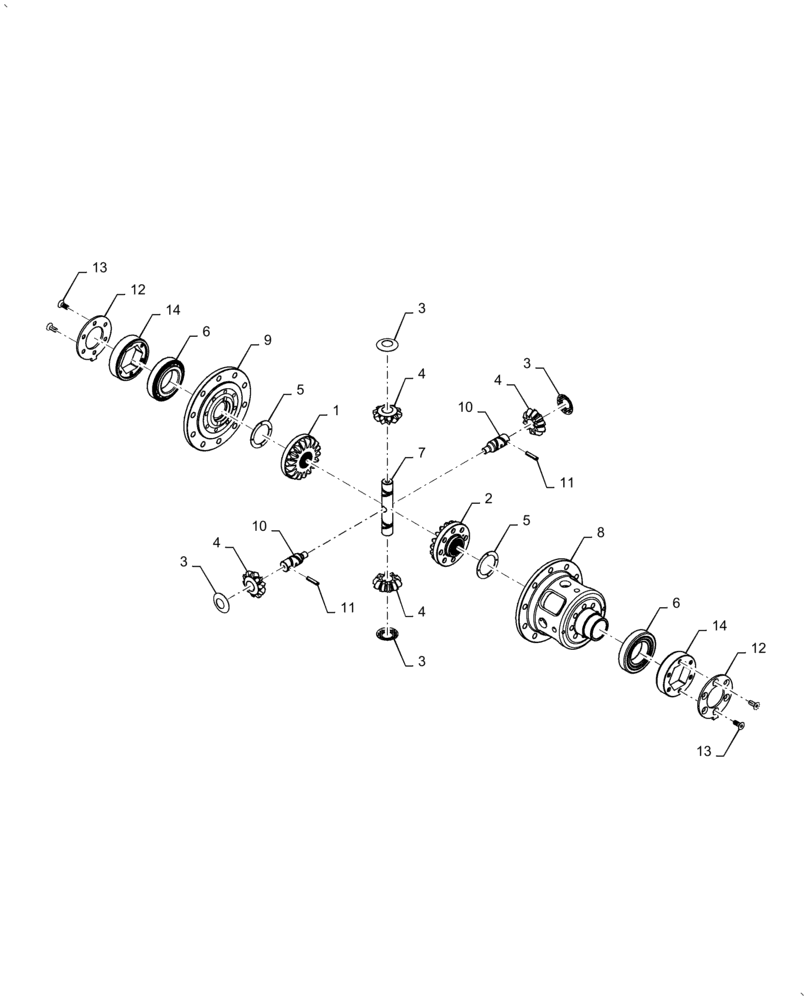

Схема запчастей Case IH FARMALL 50A - (27.106.AC[01]) - DIFFERENTIAL GEAR, ASSY (27) - REAR AXLE SYSTEM
6
11
2
9
13
10
1
3
3
5
12
8
4
11
14
6
3
4
10
4
3
5
14
12
13
4
7

Артикул

Название

Примечание

Количество

1

87370351

GEAR

Differential Side Bevel RH

1шт.

2

87370352

GEAR

Differential Side Bevel LH

1шт.

3

47938243

WASHER

Differential Star

4шт.

4

87370356

GEAR

Differential Pinion

4шт.

5

87370367

SEALING WASHER

Differential Bevel

2шт.

5

87723543

SEALING WASHER

Differential Bevel

1шт.

5

87723544

SEALING WASHER

Differential Bevel

1шт.

5

87723545

SEALING WASHER

Differential Bevel

1шт.

5

87723546

SEALING WASHER

Differential Bevel

1шт.

5

87723547

SEALING WASHER

Differential Bevel

1шт.

5

87723548

SEALING WASHER

Differential Bevel

1шт.

6

26799980

BEARING ASSY,Roller, 50mm ID x 90mm OD x 21.75mm W

Roller, Tapered, 30210

2шт.

6

561201

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

1шт.

7

87370353

PIN

Differentail

1шт.

8

47943098

HOUSING

Differential LH

1шт.

9

87370350

BOX

Housing, Differential RH

1шт.

10

87370354

PIN

Differential Small

2шт.

11

14168770

ROLL PIN

Slotted

2шт.

12

5087674

LOCKING RING

Plate, Cover

2шт.

13

5124642

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

4шт.

14

82824282

LOCK NUT

Ferrule

2шт.

Выбрано товаров: 21
