Запчасти Case IH FARMALL 50A (27.100.AB[03]) - AXLE HOUSING, REAR (27) - REAR AXLE SYSTEM

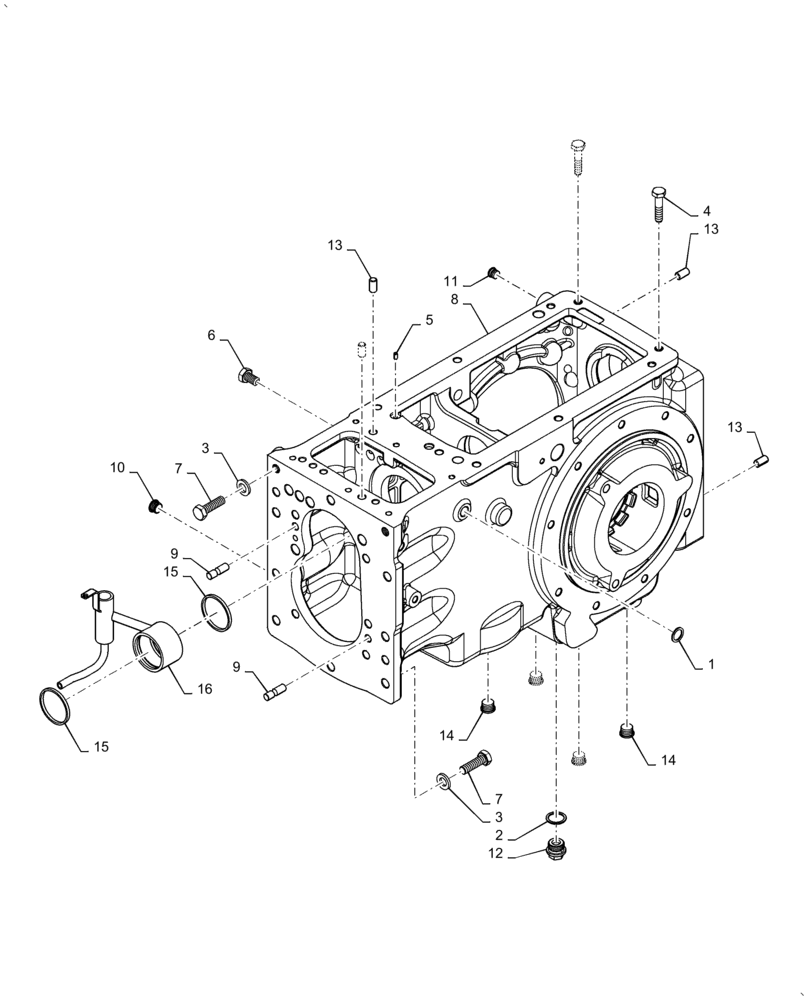

Схема запчастей Case IH FARMALL 50A - (27.100.AB[03]) - AXLE HOUSING, REAR (27) - REAR AXLE SYSTEM
14
9
7
14
8
16
15
9
6
11
3
4
3
15
10
13
13
5
12
2
1
13
7

Артикул

Название

Примечание

Количество

1

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

1шт.

2

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

3

11198670

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

Belleville

13шт.

4

11234721

BOLT,Hex, M10 x 1.25 x 45, 8.8

2шт.

5

14165470

LOCK PIN,M5 x 10, Slotted

Roll

1шт.

6

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

7

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

9шт.

8

47808389

HOUSING

Axle, 2WD Synchro Mesh ID33

1шт.

8

84384237

AXLE

Housing, 2WD Constant Mesh ID33

1шт.

9

5198711

PIN,10mm OD x 35mm L

PTO Speed Selector

2шт.

10

590353

PLUG,15mm OD x 10mm High, Plastic

2шт.

11

84293167

PLUG

1шт.

12

84422229

PLUG,M22 x 1.5

1шт.

13

87370424

DOWEL

4шт.

14

87370543

PLUG

Clutch Housing

4шт.

15

87544410

BUSHING

Nylon

2шт.

16

87622565

RIGID TUBE

Assembly Oil Feeder

1шт.

Выбрано товаров: 17
