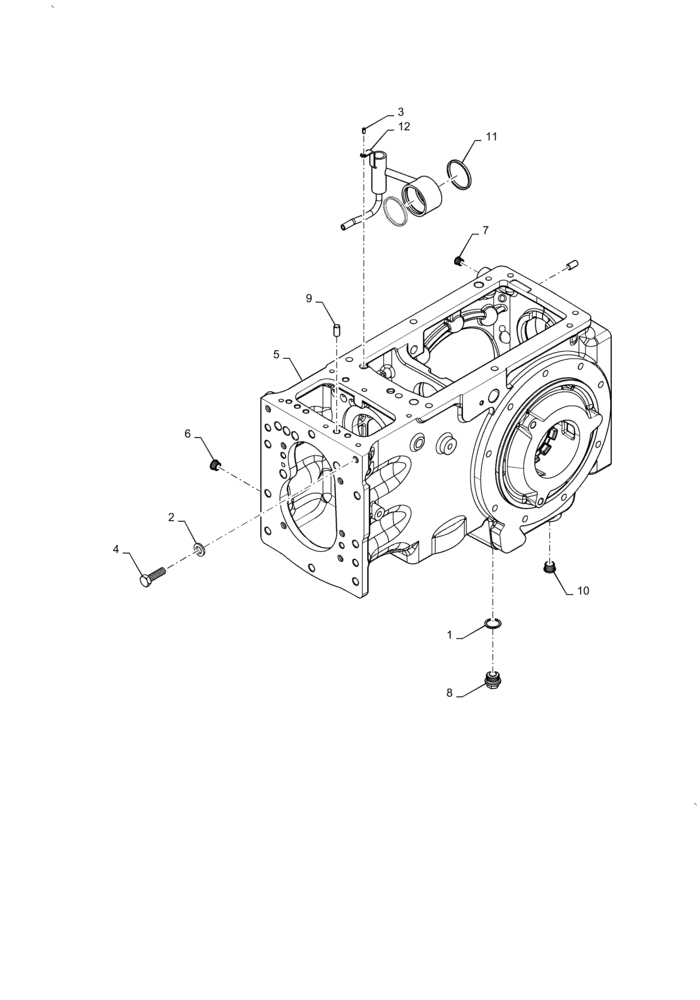

Запчасти Case IH FARMALL 50A (27.100.AB[01]) - REAR AXLE HOUSING (27) - REAR AXLE SYSTEM

1

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

2

11198670

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

Rear Axle Housing

13шт.

3

14165470

LOCK PIN,M5 x 10, Slotted

Roll

1шт.

4

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

9шт.

5

47808388

HOUSING

Axle 4WD Synchro Mesh ID33

1шт.

5

84384237

AXLE

Housing, 2WD Constant Mesh

1шт.

6

590353

PLUG,15mm OD x 10mm High, Plastic

1шт.

7

84293167

PLUG

Rear Axle Housing

1шт.

8

84422229

PLUG,M22 x 1.5

1шт.

9

87370424

DOWEL

Pin

4шт.

10

87370543

PLUG

Clutch Housing

4шт.

11

87544410

BUSHING

Nylon

1шт.

12

87622565

RIGID TUBE

Assy, Oil Feeder

1шт.
