(25.400.AM[03]) - FRONT AXLE, PTO

Запчасти Case IH FARMALL 50A (25.400.AM[03]) - FRONT AXLE, PTO (25) - FRONT AXLE SYSTEM

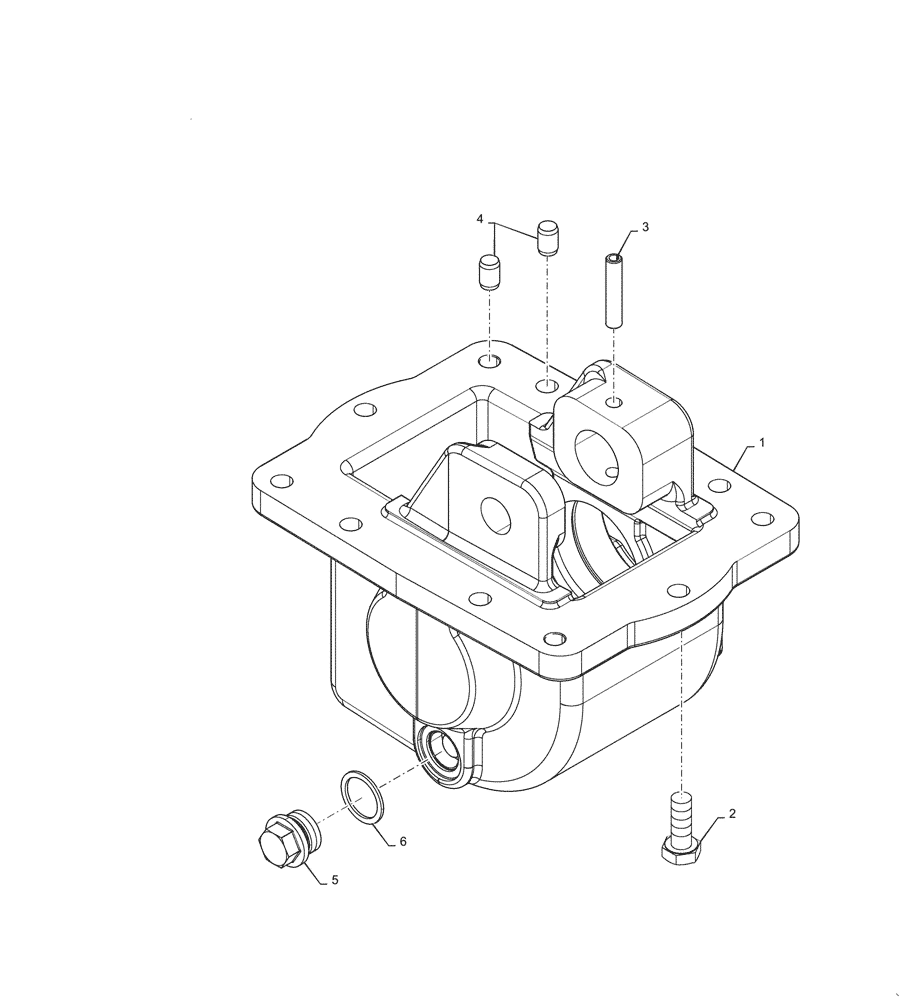

Схема запчастей Case IH FARMALL 50A - (25.400.AM[03]) - FRONT AXLE, PTO (25) - FRONT AXLE SYSTEM
6
4
3
5
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87554470

HOUSING

Dropbox 4WD, Use For MY16

1шт.

1

84229208

HOUSING

Dropbox 4WD, Use From MY17

1шт.

2

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

8шт.

3

14607270

LOCK PIN,M8 x 40, Slotted

Slotted

1шт.

4

10839710

DOWEL,M10 x 15.00mm

Pin Parallel

2шт.

5

14326540

MAGNETIC PLUG

Use For MY16

1шт.

5

84422229

PLUG,M22 x 1.5

Use From MY17

1шт.

6

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.
