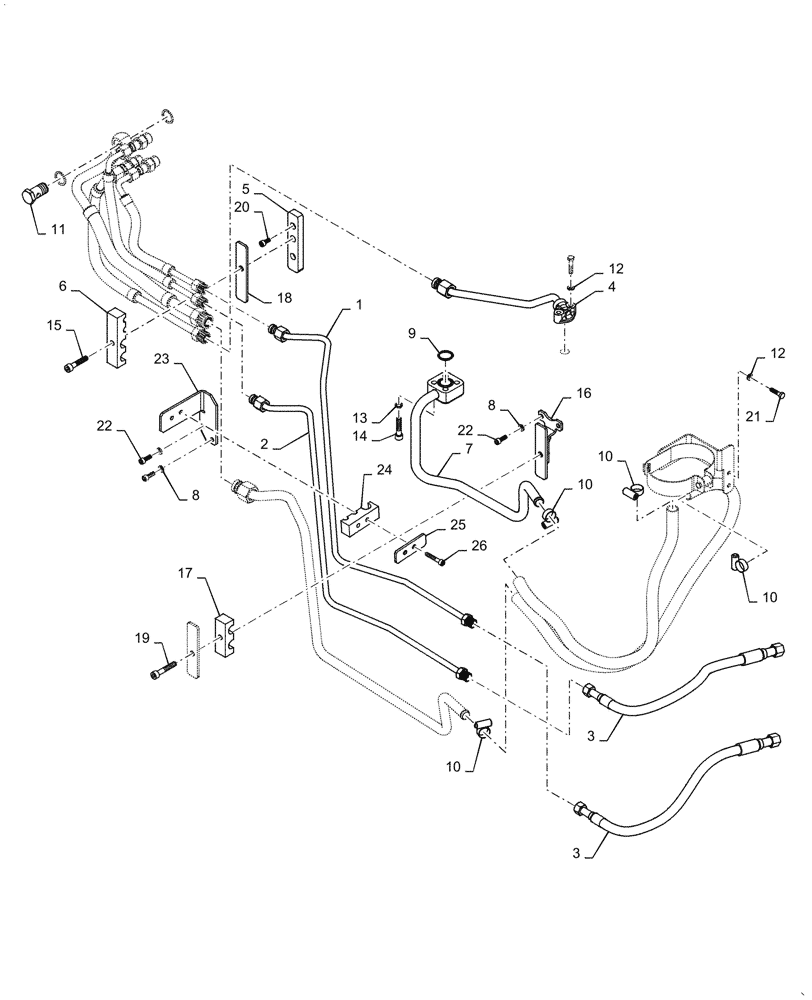

Запчасти Case IH FARMALL 50A (25.400.AM[02]) - FRONT AXLE SUPPORT, 4WD (25) - FRONT AXLE SYSTEM

1

47672874

PIPE

Pipe Assy Motor to Cylinder RH Front

1шт.

2

47672881

PIPE

Pipe Assy Motor to Cylinder LH Front

1шт.

3

47528478

HOSE

Hydraulic, Pressure Pipe

2шт.

4

47791990

PIPE

Pipe Assy Delivery Pump to Motor

1шт.

5

47792424

STRIP

Strip, Nylon, Hydraulic Pipes

1шт.

6

47794684

CLAMP

Strip, Nylon, Hydraulic Pipes

1шт.

7

47674451

PIPE

Suction Assy PS Tank to Pump

1шт.

8

10569379

LOCK WASHER

4шт.

9

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

10

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

Wormgear

4шт.

11

87329602

BANJO BOLT

1шт.

12

10571579

LOCK WASHER,M6

4шт.

13

10569379

LOCK WASHER

4шт.

14

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

4шт.

15

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

47858625

BRACKET

Assy PS Hose Holding

1шт.

17

47792423

CLAMP

Strip, Nylon, Hydraulic Pipes

1шт.

18

47672900

PLATE

Pipe Holding

1шт.

19

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

1шт.

20

10903421

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

21

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

22

14433124

SCREW,M6 x 18mm, Cl 8.8

4шт.

23

47858623

BRACKET

Assy PS Pipes Holding

1шт.

24

47680869

STRIP

Rubber Hydraulic Pipes

1шт.

25

47680717

BRACKET

Support Plate

1шт.

26

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

2шт.
