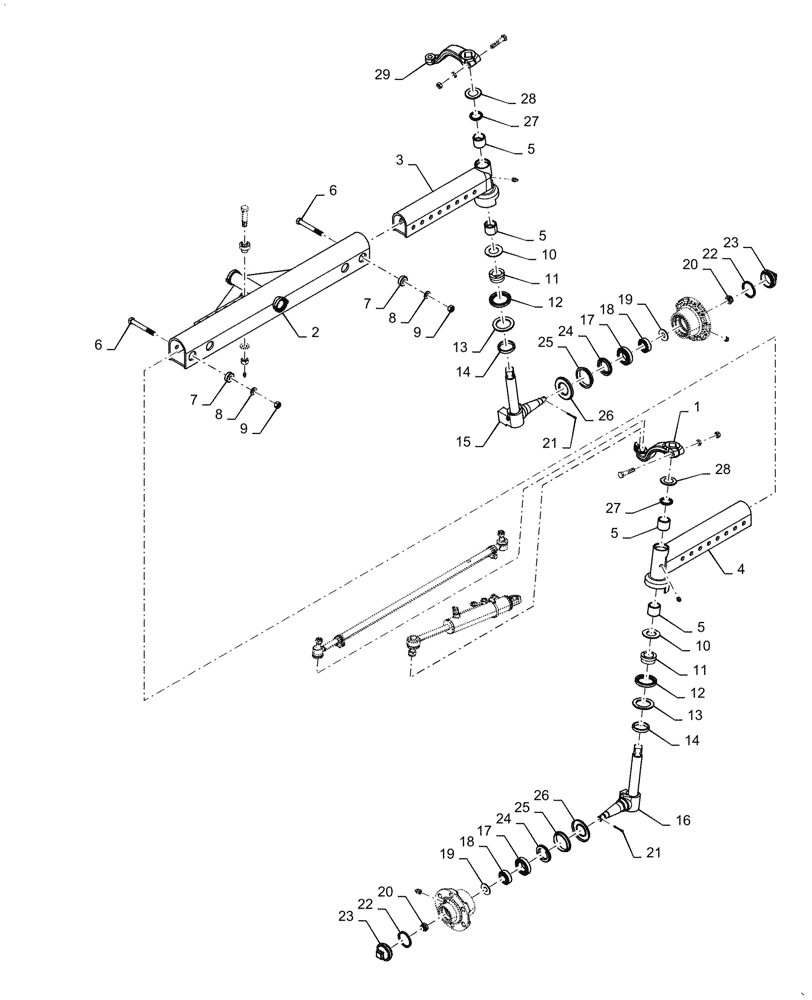

Запчасти Case IH FARMALL 50A (25.400.AM[01]) - FRONT AXLE ASSY, 2WD (25) - FRONT AXLE SYSTEM

1

84372485

LEVER

Steering, RH

1шт.

2

84168696

AXLE HOUSING

Axle, Front, Body Assy, Power Steering

1шт.

3

87645961

TRACK ROD END ASSY

Front Axle, LH

1шт.

4

87645934

TRACK ROD END ASSY

Front Axle, RH

1шт.

5

82833489

BUSHING,38.05mm ID x 48.04mm OD x 40mm L

Forward Spindle

4шт.

6

15981921

BOLT,Hex, M16 x 1.5 x 125mm, Cl 8.8

4шт.

7

5104245

SPACER,16.2mm ID x 40mm OD x 15mm

Axial End

4шт.

8

10517279

LOCK WASHER,16.2mm ID x 30.6mm OD x 4.2mm Thk

4шт.

9

15502611

NUT,Hex, M16 x 1.5

Severe

4шт.

10

82833512

THRUST WASHER,38mm ID x 71.5mm OD x 4mm Thk

Ring Steering Knuckle

2шт.

11

82824201

THRUST WASHER,38mm ID x 62mm OD x 27mm Thk

Steering Knuckle

2шт.

12

82833546

SEAL,59.9mm ID x 86mm OD x 10mm Thk

Assembly

2шт.

13

82833509

SEAL,59mm ID x 85.4mm OD x 5mm Thk

Dust Cover Lower

2шт.

14

82833897

SEAL,57mm ID x 68mm OD x 9.8mm Thk

Collar, Dust Cover

2шт.

15

87659424

SPINDLE

Assy, LH

1шт.

16

87657446

STEERING KNUCKLE

Assy, RH

1шт.

17

5132342

TAPERED BEARING,Roller, 41.3mm ID x 73.4mm OD x 17.6mm W

2шт.

18

87480083

ROLLER BEARING,28.575 mm ID x 57.15 mm OD x 19.845 mm

Taper, 1988/1922

2шт.

19

87692069

WASHER,20.5 mm ID x 49 mm OD x 3.4 mm

Bearing Steering Knuckle

2шт.

20

10724720

SLOTTED NUT,M20 x 1.5

2шт.

21

10733801

COTTER PIN,M4 x 36

2шт.

22

14460180

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

23

82833551

PLUG,Cap hub front AXLE

Hub Cap, Front Axle

2шт.

24

82834181

SEAL,50mm ID x 74mm OD x 10mm Thk

Assembly

2шт.

25

87304741

SLEEVE,74mm ID x 90mm OD x 13.8mm L

Hub-Front Wheel

2шт.

26

82827173

SHIELD

Mud, Hub Front Wheel

2шт.

27

82833544

SEAL,36.4mm ID x 50.9mm OD x 6mm Thk

Assembly

2шт.

28

82833508

SEAL,38.2mm ID x 66mm OD x 1mm Thk

Upper-Dust Cover

2шт.

29

84380345

LEVER

LH, Steering Link

1шт.
