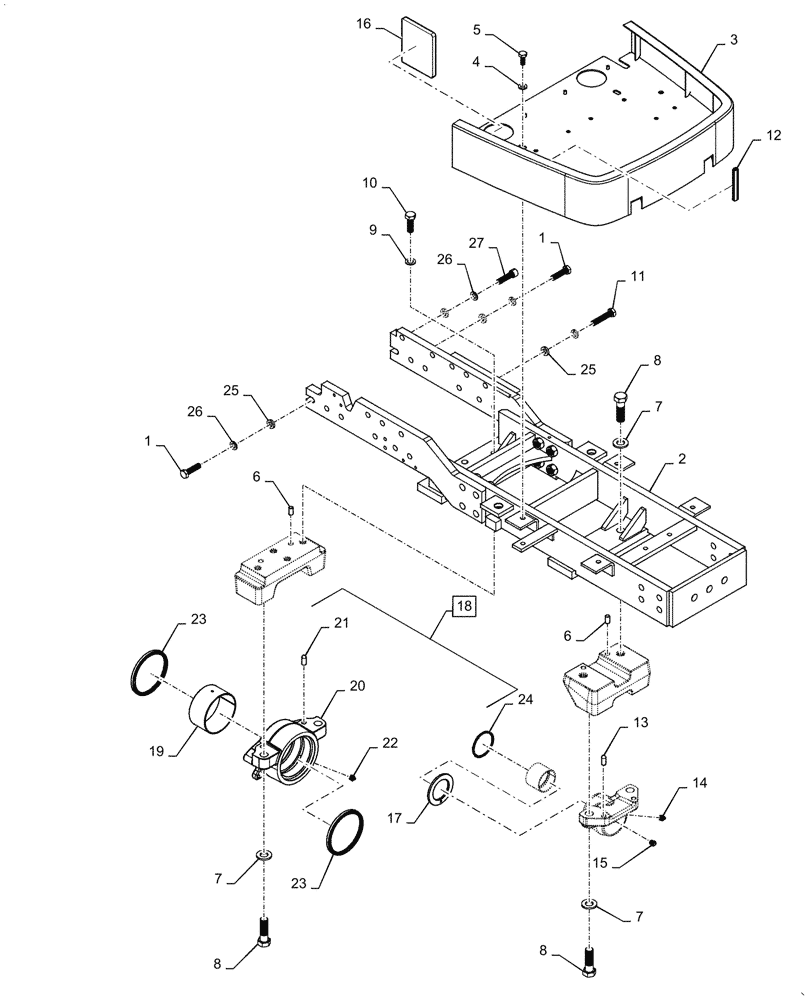

Запчасти Case IH FARMALL 50A (25.100.AV[01]) - FRONT AXLE SUPPORT, 4WD (25) - FRONT AXLE SYSTEM

1

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

12шт.

2

47987357

SUPPORT

Support Front Axle 4WD

1шт.

3

47801454

PLATE

Assy Battery Palte

1шт.

4

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

4шт.

5

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

6

87370424

DOWEL

Pin

4шт.

7

82827154

BELLEVILLE WASHER,19mm ID x 36mm OD x 3.6mm Thk

Lock

6шт.

8

14271934

SCREW,Hex, M18 x 1.5 x 60mm, Cl 10.9

Lock

6шт.

9

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

4шт.

10

11255921

BOLT,Hex, M14 x 1.5 x 40, 8.8, Full Thd

4шт.

11

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

6шт.

12

47870095

CHANNEL

1шт.

13

10837710

DOWEL,M10 x 25

Pin

2шт.

14

13407211

LUBE NIPPLE,M10 x 1

1шт.

15

13411117

VALVE PRESSURE RELIE,M10, Black

Ball Type Grease

1шт.

16

47869860

ROD

Pad, Rubber

1шт.

17

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

18

47707508

AXLE

Hinge Rear Assy, Incl 19 - 22

1шт.

19

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

20

47707506

Rear Axle Hinge

1шт.

21

10837710

DOWEL,M10 x 25

Pin

2шт.

22

13407211

LUBE NIPPLE,M10 x 1

1шт.

23

5140455

SEALING RING

2шт.

24

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

Toroidal Seal

1шт.

25

47690400

WASHER

20шт.

26

10571979

LOCK WASHER,M12

20шт.

27

14422321

HEX SOC SCREW,M12 x 45mm, Cl 8.8, Full Thd

2шт.
