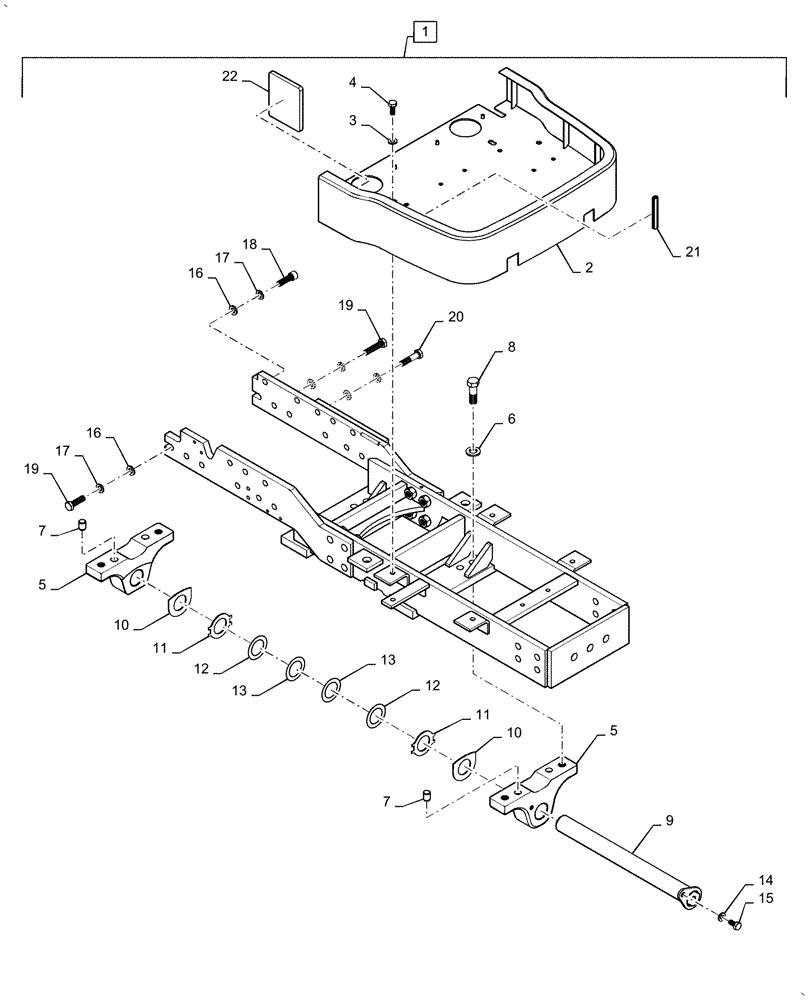

Запчасти Case IH FARMALL 50A (25.100.AV[01]) - FRONT AXLE SUPPORT, 2WD (25) - FRONT AXLE SYSTEM

1

47987404

SUPPORT

Support Front Axle 2WD, Incl 2 - 22

1шт.

2

47801454

PLATE

Assy Battery Palte

1шт.

3

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

4шт.

4

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

5

47867403

AXLE

Axle Front Trunion 55 HP

2шт.

6

11194279

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

7

10839910

DOWEL,15mm OD x 20mm L

Pin Parallell

4шт.

8

82834828

SCREW,Hex, M16 x 2 x 50mm

4шт.

9

87303683

PIN

Pivot Axle Assy

1шт.

10

82833507

THRUST WASHER

Front Axle

2шт.

11

82833511

THRUST WASHER,38mm ID x 60mm OD x 2mm Thk

Front Axle

2шт.

12

82824838

SHIM

Front Axle

2шт.

13

82833727

SHIM

Front Axle

2шт.

14

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

15

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

20шт.

17

10571979

LOCK WASHER,M12

20шт.

18

14422221

HEX SOC SCREW,M12 x 40mm, Cl 8.8

2шт.

19

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

12шт.

20

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

21

47870095

CHANNEL

1шт.

22

47869860

ROD

Pad, Rubber

1шт.
