Запчасти Case IH FARMALL 50A (23.304.AD[01]) - DROP BOX ASSY, PTO, 4WD (23) - FOUR WHEEL DRIVE SYSTEM

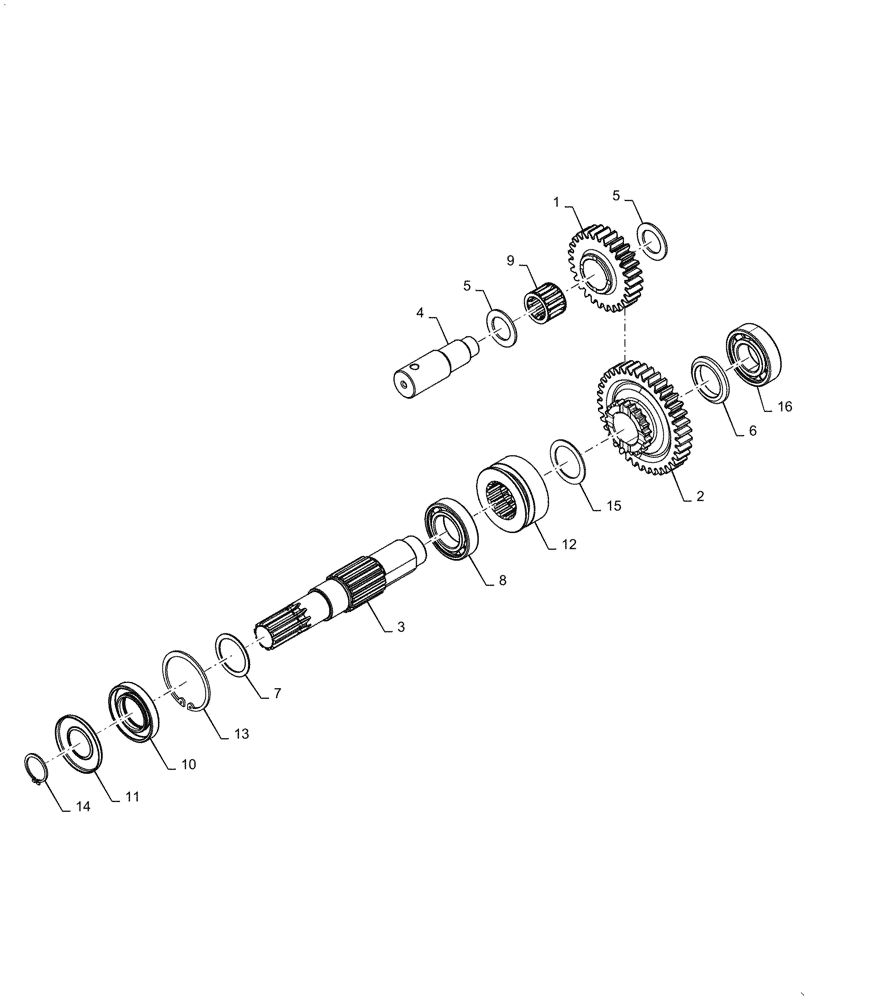

Схема запчастей Case IH FARMALL 50A - (23.304.AD[01]) - DROP BOX ASSY, PTO, 4WD (23) - FOUR WHEEL DRIVE SYSTEM
12
8
13
10
5
6
7
15
2
5
9
4
11
1
3
14
16

Артикул

Название

Примечание

Количество

1

84283277

IDLER GEAR

Drop Box, 27T

1шт.

2

84283278

DRIVEN GEAR

Drop Box, 39T, Use For MY16

1шт.

2

84283279

GEAR

Gear Drop Box, 37Z, Use From MY17

1шт.

3

87554469

SHAFT

Drop Box

1шт.

4

87554472

IDLE SHAFT

Gear

1шт.

5

87554473

SPACER

Bearing

2шт.

6

87554474

SPACER,35mm ID x 50mm OD x 8mm L

Bearing

1шт.

7

4997301

SHIM,29mm ID x 40mm OD x 2.2mm Thk

1шт.

7

4997302

SHIM,29mm ID x 40mm OD x 2.5mm Thk

Use From MY17

1шт.

7

4997303

SHIM,29mm ID x 40mm OD x 2.8mm Thk

Use From MY17

1шт.

7

4997304

SHIM,29.6mm ID x 40mm OD x 3mm Thk

Use From MY17

1шт.

7

4997305

SHIM,29.6mm ID x 40mm OD x 3.3mm Thk

Use From MY17

1шт.

7

4997306

SHIM,29.6mm ID x 40mm OD x 3.7mm Thk

Use From MY17

1шт.

7

4997307

SHIM,29.6mm ID x 40mm OD x 4mm Thk

Use From MY17

1шт.

7

4997308

SHIM,29.6mm ID x 40mm OD x 4.3mm Thk

Use From MY17

1шт.

7

5158051

SHIM,29.6mm ID x 40mm OD x 1.5mm Thk

Use From MY17

1шт.

7

5158052

SHIM,29.6mm ID x 40mm OD x 1.9mm Thk

Use From MY17

1шт.

8

28042470

BALL BEARING,35mm ID x 62mm OD x 14mm W

1шт.

9

87370425

NEEDLE BEARING,25.4mm ID x 33.34mm OD x 25.4mm W

Roller

1шт.

10

87370525

RUBBER SEAL

Drop Box Shaft

1шт.

11

5100358

SEAL,30.4mm ID x 62mm OD x 1mm Thk

Disc

1шт.

12

5123388

SLEEVE,37mm ID x 70mm OD x 32mm L

Coupling Splined

1шт.

13

11061076

SNAP RING,M62, Int

Circlip

1шт.

14

11067676

SNAP RING,M28, Ext

Retaining

1шт.

15

87759259

THRUST WASHER,35.2mm ID x 48mm OD x 1.5mm Thk

Driven Gear, Drop Box

1шт.

16

20685450

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

Ball Bearing, Use From MY17

1шт.

Выбрано товаров: 26
