Запчасти Case IH FARMALL 45A (25.108.03) - FRONT AXLE - FINAL DRIVE GEARS - 4WD (25) - FRONT AXLE SYSTEM

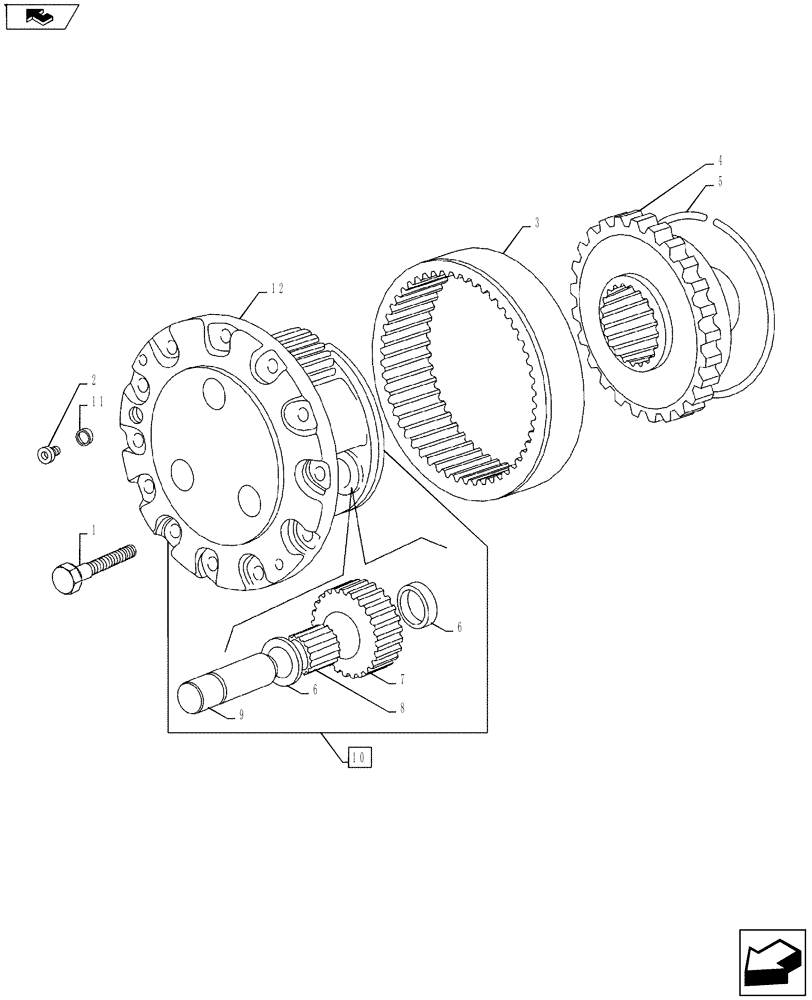

Схема запчастей Case IH FARMALL 45A - (25.108.03) - FRONT AXLE - FINAL DRIVE GEARS - 4WD (25) - FRONT AXLE SYSTEM
3
home
6
9
2
12
6
8
1
5
11
10
7
4

Артикул

Название

Примечание

Количество

1

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

20шт.

2

14326540

MAGNETIC PLUG

PLUG, MAGNETIC

2шт.

3

5165273

RING GEAR,60T

2шт.

4

5173284

GEAR,60T

2шт.

5

5165162

SNAP RING,M50, Int

2шт.

6

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

D=25 x 45 x 0.8

12шт.

7

5169137

GEAR,23T

6шт.

8

87565312

NEEDLE BEARING,25.6mm ID x 35.6mm OD x 29.8mm W

6шт.

9

5181050

PIN,27mm OD x 63.5mm L

Final Drives Planet

6шт.

10

5181047

CARRIER

Includes Ref. 6-9, 12

2шт.

11

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

12

5181049

SUPPORT

Plannet Carrier

1шт.

Выбрано товаров: 12
