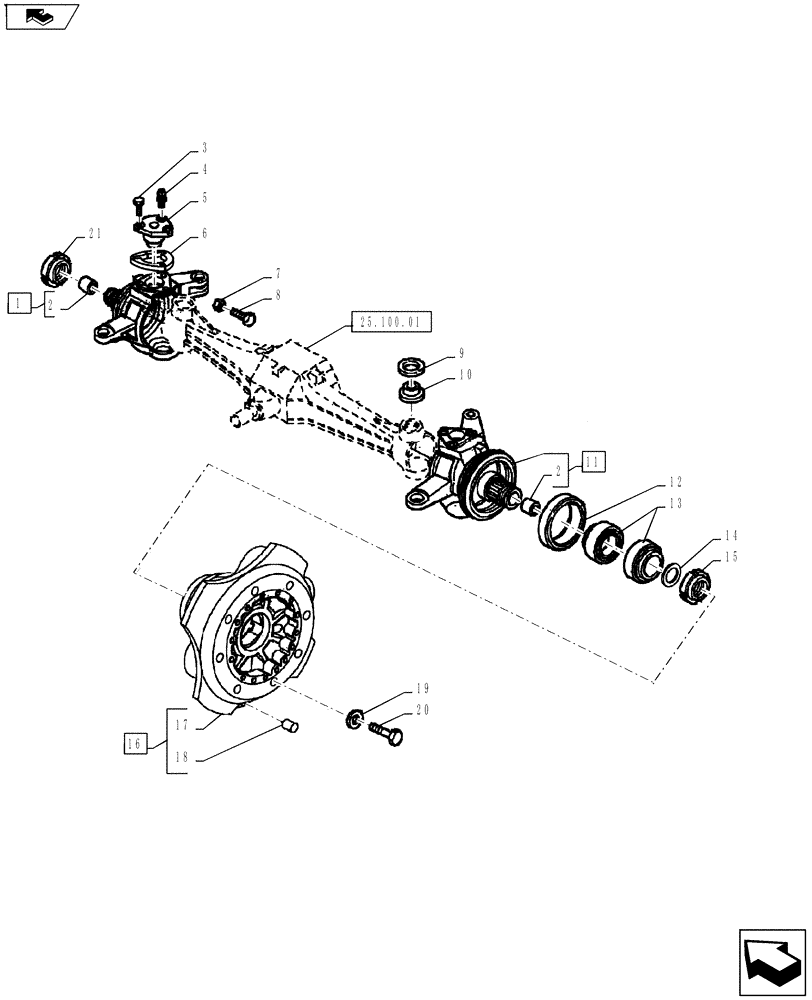

Запчасти Case IH FARMALL 45A (25.108.02) - WHEEL HUB & STEERING KNUCKLE - 4WD (25) - FRONT AXLE SYSTEM

1

87536979

STEERING KNUCKLE

LH

1шт.

2

84216300

GROOVED BUSHING,45.1mm ID x 50.1mm OD x 30mm L

2шт.

3

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

4

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

5

5165271

BALL STUD,M14 x 1.5 x 46mm

BALL PIN Steering Knuckle

4шт.

6

84284233

SHIM

1шт.

6

5100793

SHIM,.30mm Thk

1шт.

6

5100792

SHIM,.25mm Thk

1шт.

6

5100791

SHIM,.20mm Thk

1шт.

6

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

6

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

1шт.

7

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

8

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

9

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

4шт.

10

24903780

TAPERED BEARING,30mm ID x 55mm OD x 17mm W

4шт.

11

87536981

STEERING KNUCKLE

1шт.

12

47123727

SEAL,130mm ID x 160mm OD x 16mm Thk

2шт.

13

5164622

TAPERED BEARING,70mm ID x 110mm OD x 21mm W

4шт.

14

5166183

SPACER,70.1mm ID x 80mm OD x 12.18mm L

2шт.

15

5165277

RING NUT,Hex, M70 x 2, Cl 8.8

1шт.

16

87542225

HUB

2шт.

17

87542214

HUB

1шт.

18

4988170

PIN,10mm OD x 20mm L

2шт.

19

10520221

WASHER,16.4mm ID x 28mm OD x 3mm Thk

ALT P/N 10520224

12шт.

20

11376237

BOLT,Hex, M16 x 1.5 x 35mm, Cl 8.8

ALT P/N 16249824

12шт.

21

5169116

RING NUT,Hex, M70 x 2, Cl 8.8

1шт.
