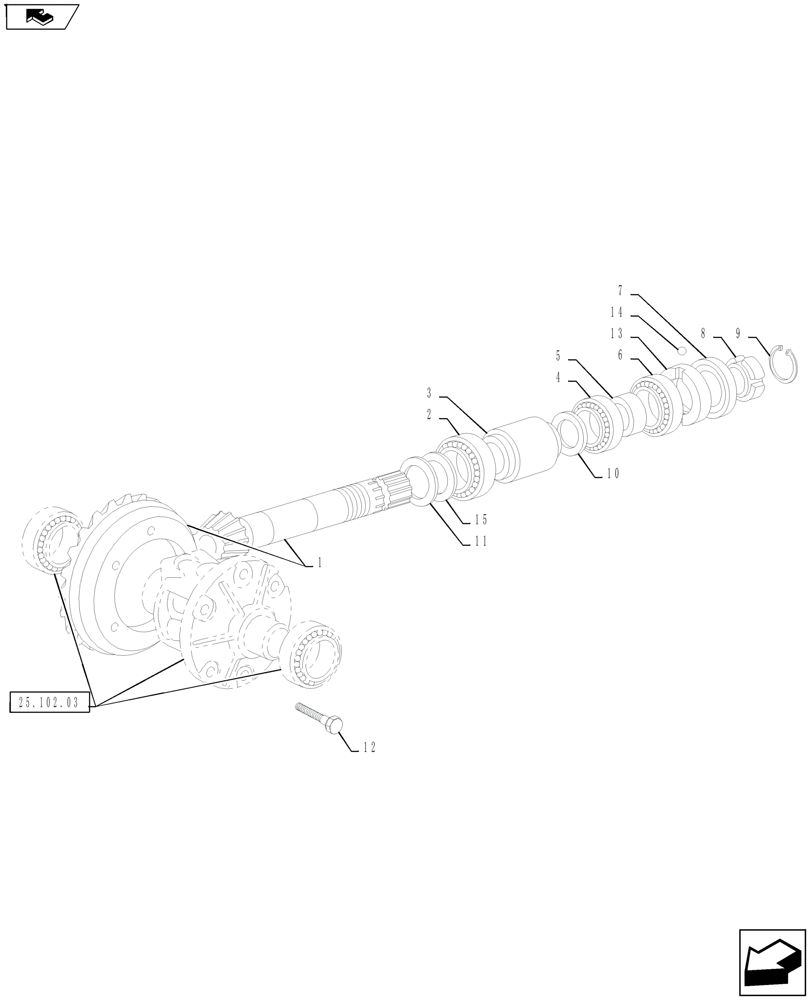

Запчасти Case IH FARMALL 45A (25.102.02) - FRONT AXLE - RING GEAR AND PINION - 4WD (25) - FRONT AXLE SYSTEM

1

5167971

BEVEL GEAR,23T

1шт.

2

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

1шт.

3

5169235

SPACER,35.4mm ID x 42mm OD x 63.5mm L

1шт.

4

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

1шт.

5

5142026

RING,35.1mm ID x 45mm OD x 22mm L

1шт.

6

5135294

SEAL,45mm ID x 75mm OD x 12mm Thk

1шт.

7

4997451

SEAL PROTECTION,45.4mm ID x 75mm OD x 1mm Thk

1шт.

8

5143242

RING NUT,M35 x 1.5

1шт.

9

11067776

SNAP RING,M29, Ext

1шт.

10

5101236

SHIM,35.00mm ID x 43.00mm OD x 3.50mm Thk

1шт.

10

5129161

SHIM,35.00mm ID x 43.00mm OD x 3.55mm T

1шт.

10

5101237

SHIM,35.00mm ID x 43.00mm OD x 3.60mm T

1шт.

10

5129162

SHIM,35.00mm ID x 43.00mm OD x 3.65mm T

1шт.

10

5101238

SHIM,35.00mm ID x 43.00mm OD x 3.70mm T

1шт.

10

5169313

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.75mm Thk

1шт.

10

5169314

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.80mm Thk

1шт.

10

5169315

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.85mm Thk

1шт.

10

5169316

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.90mm Thk

1шт.

10

5169317

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.95mm Thk

1шт.

10

5169318

SHIM,35.1mm ID x 43mm OD x 4mm Thk

1шт.

10

5169319

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.05mm Thk

1шт.

10

5169320

SHIM,35.1mm ID x 43mm OD x 4.1mm Thk

1шт.

10

5169321

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.15mm Thk

1шт.

10

5169322

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.20mm Thk

1шт.

11

5169323

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.25mm Thk

1шт.

11

5169324

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.30mm Thk

1шт.

11

5169325

SHIM,35.1mm ID x 43mm OD x 4.35mm Thk

1шт.

11

5169326

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.40mm Thk

1шт.

11

5169327

SHIM,35.1mm ID x 43mm OD x 4.45mm Thk

1шт.

11

5169328

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.50mm Thk

1шт.

11

5169329

SHIM,35.1mm ID x 43mm OD x 4.55mm Thk

1шт.

11

5169330

SHIM,35.1mm ID x 43mm OD x 4.6mm Thk

1шт.

11

5169331

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.65mm Thk

1шт.

11

5169332

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.70mm Thk

1шт.

11

5169333

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.75mm Thk

1шт.

11

5169334

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.80mm Thk

1шт.

12

15540330

SCREW,Hex, M12 x 1.25 x 25mm, Cl 10.9

6шт.

13

5142026

RING,35.1mm ID x 45mm OD x 22mm L

1шт.

14

20419320

BALL,6.35mm OD

1шт.

15

5087435

SHIM KIT

1шт.

16

14454380

O-RING,31.47mm ID x 1.78" Width

Located between Ref. 13 & 7, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.
