Запчасти Case IH FARMALL 45A (25.100.01) - AXLE HOUSING - 4WD (25) - FRONT AXLE SYSTEM

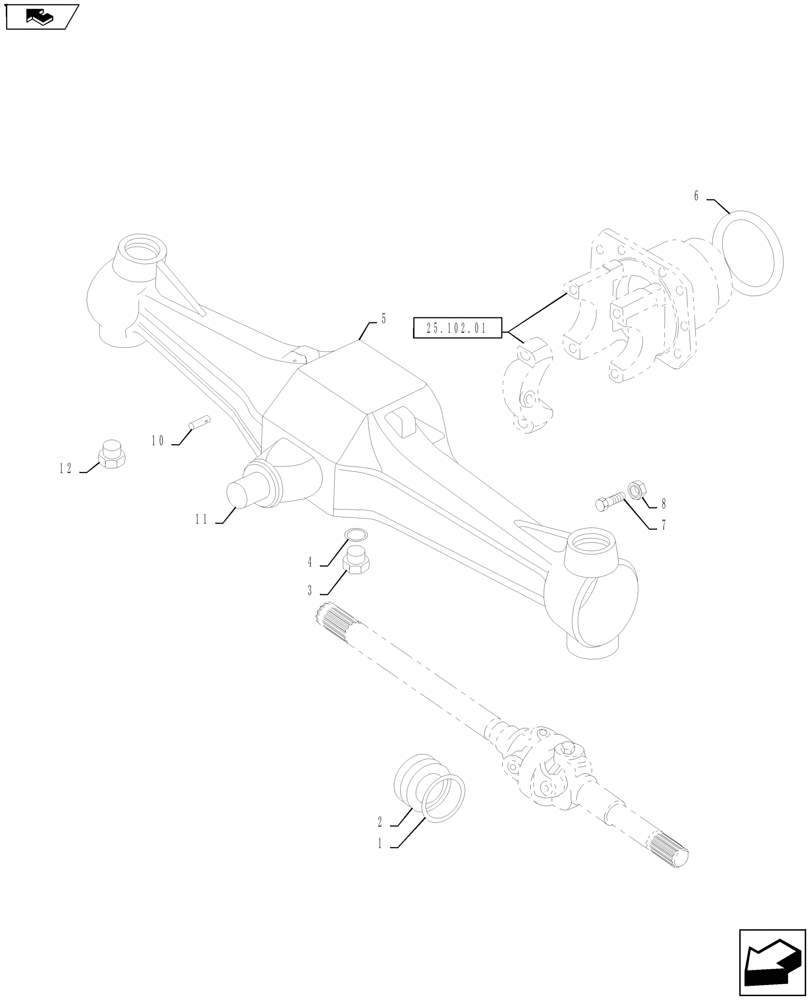

Схема запчастей Case IH FARMALL 45A - (25.100.01) - AXLE HOUSING - 4WD (25) - FRONT AXLE SYSTEM
3
home
11
7
25.102.01
10
1
5
8
4
2
6
12

Артикул

Название

Примечание

Количество

1

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

2шт.

2

84297424

RETAINER

Axle Half Shaft

2шт.

3

14326540

MAGNETIC PLUG

PLUG, MAGNETIC

1шт.

4

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

5

84121549

AXLE HOUSING

Front Assy.

1шт.

6

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

7

84217038

SET SCREW,M12 x 1.25 x 47.5mm, Cl 10.9

2шт.

8

16101511

NUT,M12 x 1.25, Cl 8

2шт.

9

13683801

RIVET,Flat, 2.9mm OD x 5.35mm L

Not Illustrated

4шт.

10

4966244

PIN,5mm OD x 15mm L

1шт.

11

5140017

PIN,52.65mm OD x 153.00mm

1шт.

12

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

Выбрано товаров: 12
