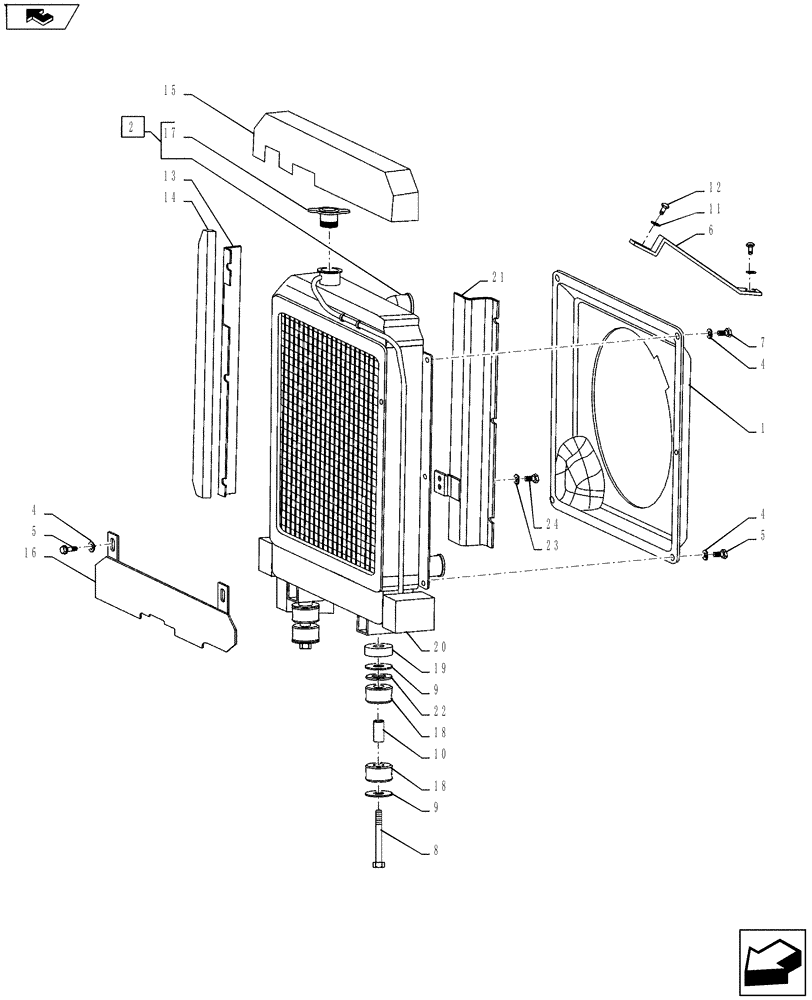

Запчасти Case IH FARMALL 45A (10.406.01[01]) - RADIATOR ASSEMBLY (10) - ENGINE

1

84297821

RADIATOR

Shroud

1шт.

2

84293169

RADIATOR

Includes Ref. 17, Start Serial: 10/1/2009

1шт.

3

82834143

WASHER

6шт.

4

10571579

LOCK WASHER,M6

8шт.

5

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

4шт.

6

87572060

BRACKET

4шт.

7

14433124

SCREW,M6 x 18mm, Cl 8.8

Hex., M6 x 25, 8.8

2шт.

8

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

4шт.

9

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

2шт.

10

82824303

SPACER

2шт.

11

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

12

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

13

84297822

BRACKET

Guard

1шт.

14

84300629

SEALING STRIP,35mm W x 485mm L x 18mm Thk

2шт.

15

84295272

INSULATOR

Gasket Top

2шт.

16

84298316

BRACKET

1шт.

17

82834117

PLUG

1шт.

18

5108225

RUBBER MOUNTING

2шт.

19

NS

NOT SERVICED

Spacer10.5 x 45 x 10

2шт.

84279235

1шт.

20

87541591

INSULATOR

Radiator

2шт.

21

84298313

BRACKET

Guard

1шт.

22

10569479

LOCK WASHER,10.2mm ID x 16mm OD x 2.5mm Thk

M10

2шт.

23

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

24

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.
