Запчасти Case IH FARMALL 45A (10.402.02[01]) - WATER PUMP (10) - ENGINE

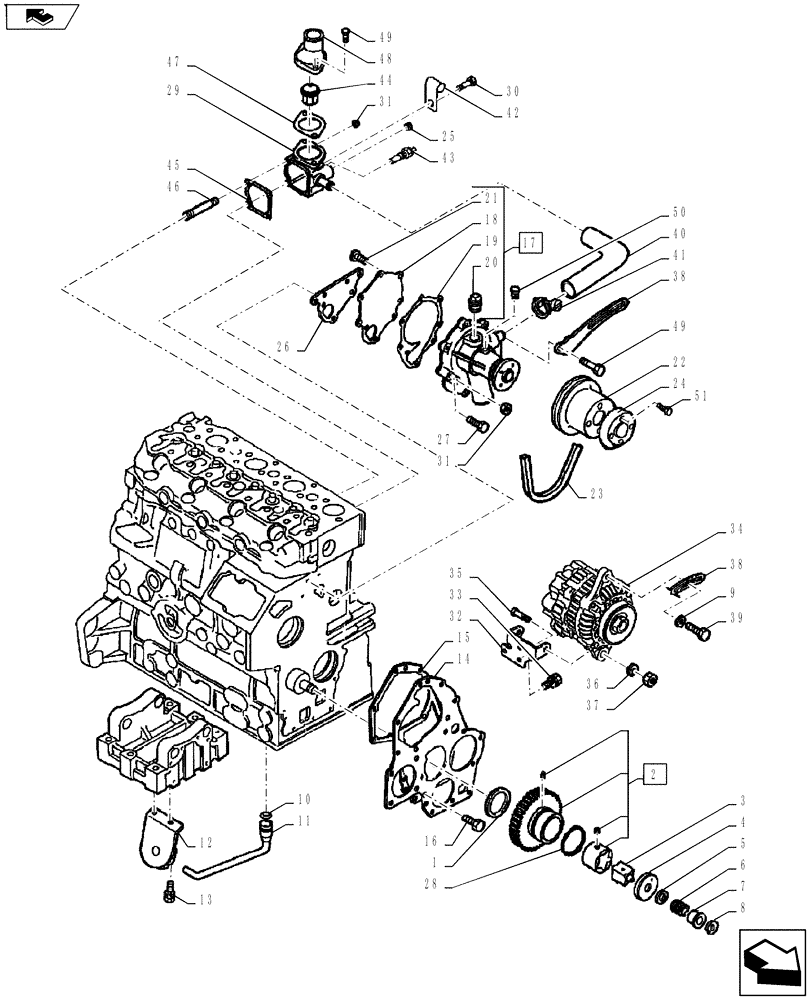

Схема запчастей Case IH FARMALL 45A - (10.402.02[01]) - WATER PUMP (10) - ENGINE
36
8
16
47
9
30
35
10
1
39
45
home
2
31
51
26
14
20
25
13
11
19
49
49
15
46
48
18
28
24
17
21
42
27
5
31
38
41
43
37
29
6
12
50
3
23
44
40
7
4
34
33
38
22
32

Артикул

Название

Примечание

Количество

1

SBA199266270

WASHER, THRUST

1шт.

2

SBA165026230

IDLER GEAR

Oil Pump Outer Rotor & Gear Assy., Includes: Outer Rotor, NSS

1шт.

2

SBA165026230R

REMAN-ENG OIL PUMP

FARMALL 45A (3/10-)

1шт.

2

SBA165026230C

CORE-ENGINE OIL PUMP

Return Part Number

1шт.

3

SBA140166250

ROTOR

Inner

1шт.

4

SBA140116220

COVER

Oil Pump

1шт.

5

SBA199286150

SHIM,0.1mm Thk

1шт.

5

SBA199286160

SHIM,0.15mm Thk

1шт.

5

SBA199286170

SHIM,0.2mm Thk

1шт.

5

SBA199286180

SHIM,0.5mm Thk

1шт.

6

SBA198216720

SPRING

1шт.

7

SBA199236540

COLLAR

1шт.

8

SBA036800010

SNAP RING

1шт.

9

SBA026109017

WASHER

1шт.

Not Included in Long Block

1шт.

10

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

11

SBA140986620

RIGID TUBE

Oil

1шт.

12

SBA140406340

PICK-UP

Suction

1шт.

13

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

14

SBA165166600

PLATE

Front

1шт.

15

SBA165996540

GASKET

1шт.

16

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

17

SBA145017790

WATER PUMP

Includes Ref. 18-21

1шт.

17

SBA145017790R

REMAN-WATER PUMP

FARMALL 45A (NA) (3/10)

1шт.

17

SBA145017790C

CORE-WATER PUMP

Return Part Number

1шт.

18

SBA145146320

PLATE

Set

1шт.

19

SBA145996681

GASKET

1шт.

20

SBA064500030

PLUG,3/8"

3/8"

1шт.

21

SBA015300614

SCREW

5шт.

22

SBA145337040

PULLEY

Fan

1шт.

Not Included in Long Block

1шт.

23

301525A1

BELT,37.43” OAL

1шт.

Not Included in Long Block

1шт.

24

SBA145386950

HOLDER

1шт.

25

SBA064500030

PLUG,3/8"

3/8"

1шт.

26

SBA145996670

GASKET

1шт.

27

SBA011310635

CAPTIVE WASHER SCREW,Hex, M6 x 35, Cl 8.8

4шт.

28

SBA198216821

SPRING

1шт.

29

SBA145216730

CASE

Thermostat

1шт.

30

SBA011310655

BOLT,Hex, M6 x 55, Cl 8.8

2шт.

31

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

32

SBA185976900

BRACKET

1шт.

Not Included in Long Block

1шт.

33

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

Not Included in Long Block

1шт.

34

SBA185046320

ALTERNATOR

1шт.

Not Included in Long Block

1шт.

34

SBA185046320R

REMAN-ALTERNATOR

Farmall 45A

1шт.

34

SBA185046320C

CORE-ALTERNATOR

Return Part Number

1шт.

34

SBA185046320GV

ALTERNATOR

Value

1шт.

35

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

Not Included in Long Block

1шт.

36

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

Not Included in Long Block

1шт.

37

100016

NUT,M10 x 1.5, Cl 8

2шт.

Not Included in Long Block

1шт.

38

SBA185727000

PLATE

2шт.

Not Included in Long Block

1шт.

39

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

2шт.

Not Included in Long Block

1шт.

40

SBA145536051

HOSE

2шт.

41

SBA067100022

HOSE CLAMP

2шт.

42

SBA199116370

CLAMP

1шт.

43

SBA385720070

SENSOR

Sender Switch

1шт.

44

SBA145206220

THERMOSTAT,71 Degrees C (160 Degrees F)

71° C (160° F)

1шт.

45

SBA145996710

GASKET

1шт.

46

SBA012110655

STUD

Bolt, M6 x 45

2шт.

47

SBA145996051

GASKET

1шт.

48

SBA145226450

COVER

1шт.

49

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

50

SBA198466910

PLUG

1шт.

51

SBA010700635

BOLT

4шт.

Выбрано товаров: 72
