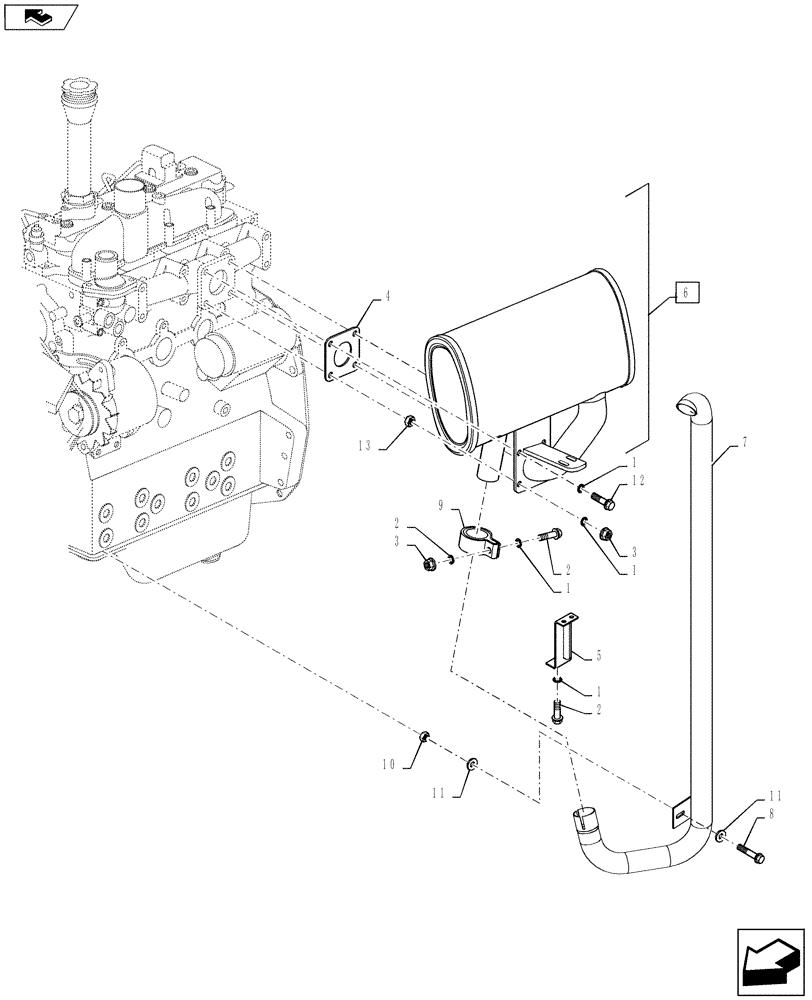

Запчасти Case IH FARMALL 45A (10.254.04[01]) - EXHAUST SYSTEM W/MUFFLER - VERTICAL (10) - ENGINE

1

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

7шт.

2

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

3

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

4

84199324

GASKET,0.2mm Thk

1шт.

5

87645956

BRACKET

Bracket, Mounting Pipe Assly., Muffler

1шт.

6

87614675

MUFFLER,W/ Spark Arrester

Inc. Ref 13

1шт.

7

87645955

RIGID TUBE

Pipe Assy., Muffler Vertical - 45 H.P.

1шт.

8

16288624

FLANGE BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

ZND Din

1шт.

9

84249605

CLAMP

1шт.

10

10790111

NUT,M10 x 1.25, Cl 8

1шт.

11

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

2шт.

12

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

13

NSS

NOT SOLD SEPARAT

WELDNUTS

2шт.
