(10.101.02[02]) - CYLINDER HEAD COVER - ROCKER SHAFT

Запчасти Case IH FARMALL 45A (10.101.02[02]) - CYLINDER HEAD COVER - ROCKER SHAFT (10) - ENGINE

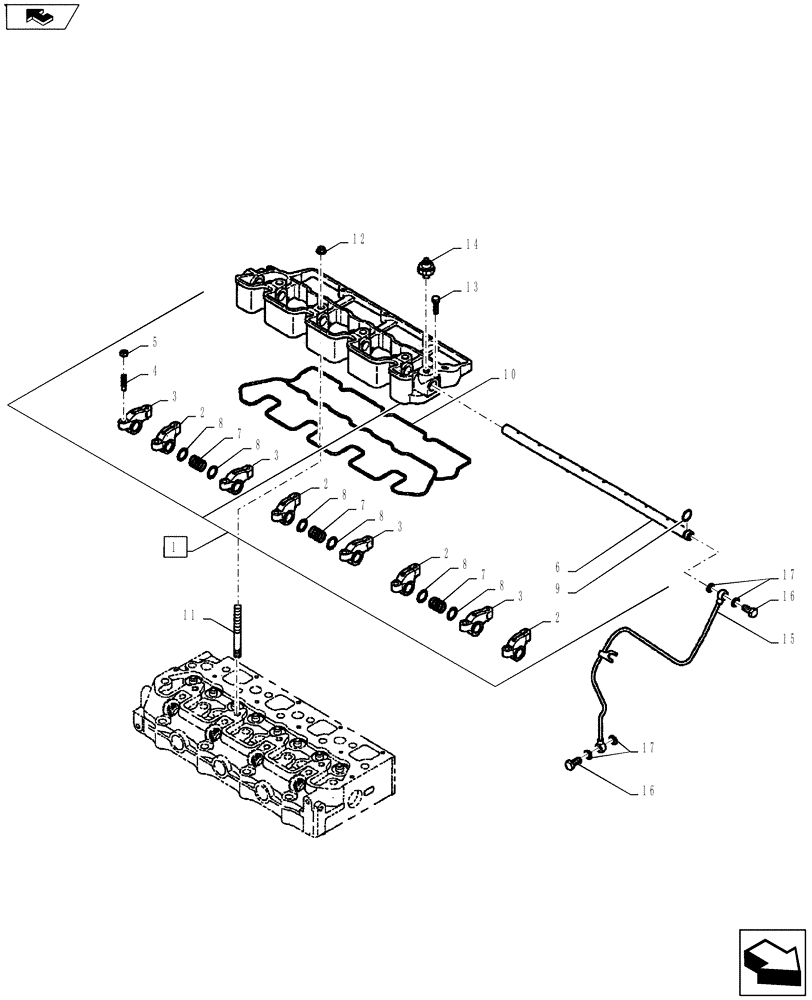

Схема запчастей Case IH FARMALL 45A - (10.101.02[02]) - CYLINDER HEAD COVER - ROCKER SHAFT (10) - ENGINE
15
1
5
17
7
9
4
11
13
14
8
8
7
home
12
0
2
16
3
2
8
3
10
8
8
2
2
3
17
7
16
3
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA120036940

ROCKER ARM

1шт.

2

SBA120356131

ROCKER ARM

Intake

4шт.

3

SBA120356141

ROCKER ARM

Exhaust

4шт.

4

SBA199486220

ADJUSTMENT SCREW

8шт.

5

SBA020109076

NUT

8шт.

6

SBA120316201

SHAFT

Rocker Arm

1шт.

7

SBA198217170

SPRING

2шт.

8

SBA199280300

SHIM,0.5mm Thk

6шт.

9

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

10

SBA120996130

GASKET

1шт.

11

SBA012109044

STUD

4шт.

12

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

13

SBA011310635

CAPTIVE WASHER SCREW,Hex, M6 x 35, Cl 8.8

2шт.

14

SBA185246060

SENDER UNIT

Oil Pressure

1шт.

15

SBA140606720

TUBE

1шт.

15

SBA140607020

RIGID TUBE

1шт.

16

SBA198486780

BANJO BOLT

2шт.

17

SBA140996260

SEAL

4шт.
