Запчасти Case IH FARMALL 45A (10.101.01[01]) - CYLINDER HEAD - VALVES (10) - ENGINE

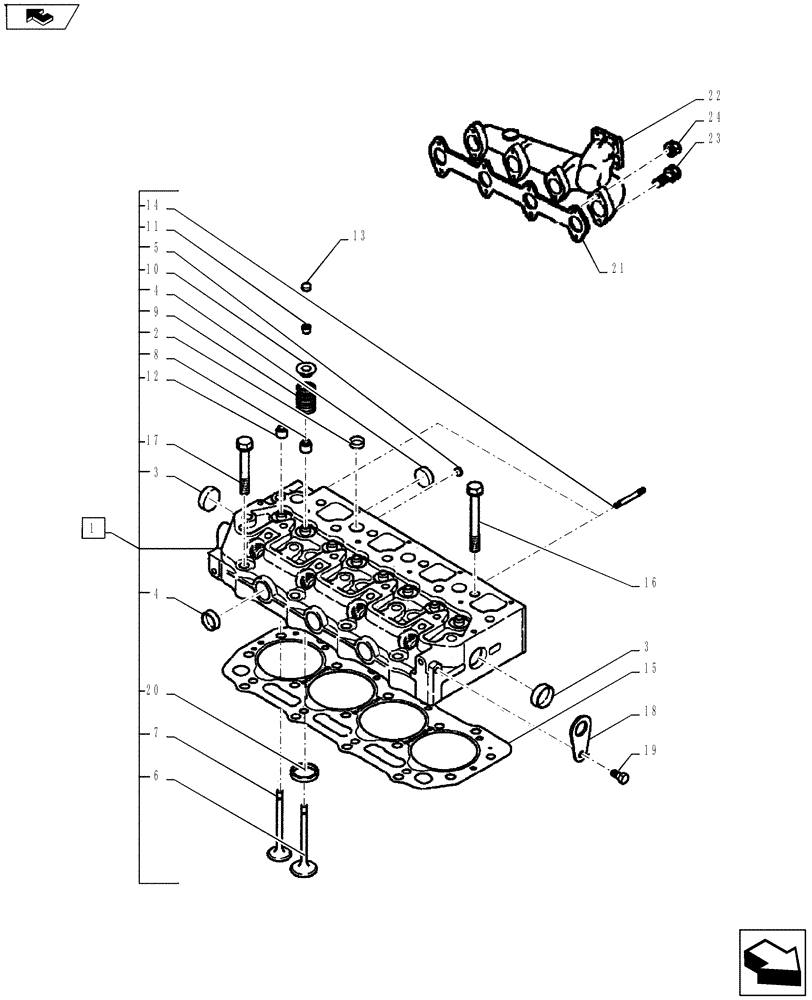

Схема запчастей Case IH FARMALL 45A - (10.101.01[01]) - CYLINDER HEAD - VALVES (10) - ENGINE
15
12
13
3
4
6
3
5
16
7
18
22
24
20
23
8
2
4
home
1
10
11
19
21
17
9
14

Артикул

Название

Примечание

Количество

1

SBA111011390

CYLINDER HEAD

Includes Ref. 2-12, 14, 21

1шт.

2

SBA064210018

PLUG

Sealing, 18mm

7шт.

3

SBA064210030

PLUG,30mm

2шт.

4

SBA064210025

PLUG,25mm

6шт.

5

SBA064210010

PLUG,10mm

3шт.

6

SBA120166350

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

7

SBA120176360

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

8

SBA120406070

SEAL

Valve

4шт.

9

SBA198216700

SPRING

8шт.

10

SBA120186080

RETAINER

8шт.

11

SBA120226070

RETAINER

16шт.

12

SBA120406050

SEAL

Valve Guide, Exhaust

4шт.

13

SBA120216041

CAP

8шт.

14

SBA012110860

STUD

2шт.

15

SBA111147751

CYLINDER HEAD GASKET,1.1mm Thk

1.1 Thickness

1шт.

15

SBA111147761

CYLINDER HEAD GASKET,1.2mm Thk

1.2 Thickness

1шт.

15

SBA111147771

CYLINDER HEAD GASKET,1.3mm Thk

1.3 Thickness

1шт.

16

SBA111136480

BOLT

Head

14шт.

17

SBA111136490

BOLT

Head

4шт.

18

SBA195816540

LIFTING EYE

2шт.

19

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

20

SBA110136400

VALVE SEAT

4шт.

21

SBA135996780

MANIFOLD GASKET

1шт.

22

SBA135617390

EXHAUST MANIFOLD

1шт.

23

SBA011510860

CAPTIVE WASHER SCREW,Hex, M8 x 60, G5

6шт.

24

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

Выбрано товаров: 26
