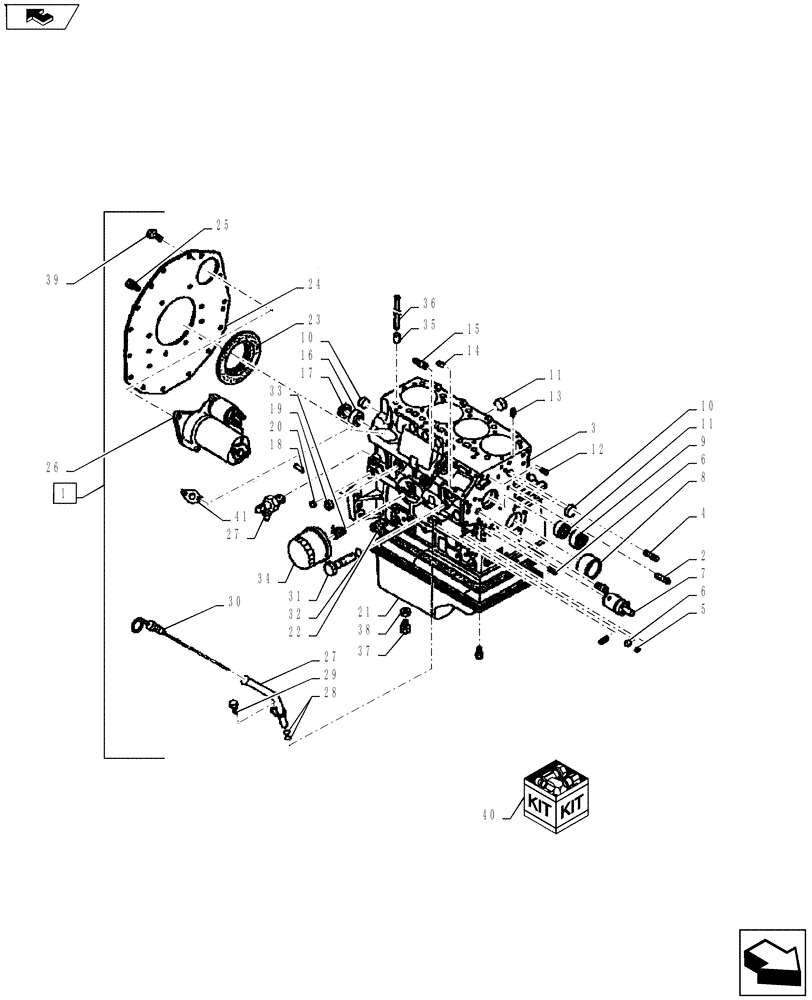

Запчасти Case IH FARMALL 45A (10.001.02[01]) - CYLINDER BLOCK (10) - ENGINE

1

SBA133763

ENGINE

Block, Long, Includes Ref. 2-26, 28-40, 42, 46, 48, 49-50., Serial Range: -`0

1шт.

Fuel Pump, Alternator & Starter Not Included

1шт.

1

SBA133763R

1шт.

1

SBA133763C

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

3

SBA012110660

STUD

1шт.

4

SBA012110635

STUD

1шт.

5

SBA198466010

PLUG

Blank 8.4 mm

3шт.

6

SBA198466020

PLUG

Blank 10.4 mm

4шт.

7

SBA165296260

SHAFT

Idler Gear, Includes Shaft SBA140196072

1шт.

8

SBA198517222

BUSHING

Standard

1шт.

8

SBA198517226

BUSHING

U/S, 0.10 or 0.25 mm

1шт.

8

SBA198517229

BUSHING

U/S, 0.20 or 0.50 mm

1шт.

9

SBA042309018

NEEDLE BEARING

1шт.

10

SBA064210040

CAP

5шт.

11

SBA042309017

NEEDLE BEARING

1шт.

12

SBA030500616

DOWEL,M6 x 16

2шт.

13

SBA030309005

PIN

Spring

2шт.

14

SBA030500612

DOWEL

2шт.

15

SBA012110820

STUD

3шт.

16

SBA040106203

BALL BEARING,17mm ID x 40mm OD x 12mm W

1шт.

17

SBA064100045

PLUG

Expansion

1шт.

18

SBA030501025

BALL STUD,M10 x 25 L

2шт.

19

SBA064210025

PLUG,25mm

2шт.

20

SBA198466030

PLUG

3шт.

21

SBA110708320

ENGINE OIL PAN

Blank, 6.5 x 7 mm

1шт.

22

SBA110996860

GASKET

1шт.

23

SBA050209083

SEAL

1шт.

24

SBA110367740

PLATE

1шт.

25

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

Hex., M8 x 20, G5

10шт.

26

SBA185086530

STARTER MOTOR

, Serial Range: -`0

1шт.

Not Included in Long Block

1шт.

26

SBA185086530R

REMAN-STARTER

FARMALL 45A -- 11 Tooth Drive

1шт.

26

SBA185086530C

CORE-STARTER

Return Number

1шт.

26

SBA185086530GV

STARTER MOTOR

Value

1шт.

27

SBA110756140

TUBE

Dipstick

1шт.

28

SBA052100100

O-RING

2шт.

29

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

1шт.

30

SBA198416320

GAUGE

1шт.

31

SBA140036220

VALVE PRESSURE RELIE

1шт.

32

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

1шт.

33

SBA140546020

ADAPTER

1шт.

34

84475542

ENGINE OIL FILTER

1шт.

35

SBA120116160

TAPPET

45mm

8шт.

36

SBA120456310

PUSH ROD,8.76"

8шт.

37

SBA010411212

DRAIN PLUG,M12 x 1.25

2шт.

38

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

Seal

2шт.

39

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

, Serial Range: -`0

2шт.

Not Included in Long Block

1шт.

40

86590117

KIT

Engine Coolant, Includes: 5' Cord 86539137, Cable Tie 263117 & Heater NSS, Serial Range: -`0

1шт.

Not Included in Long Block

1шт.

40

SBA130996130

GASKET

1шт.

41

SBA064409006

PLUG,1/8" NPT

1шт.
