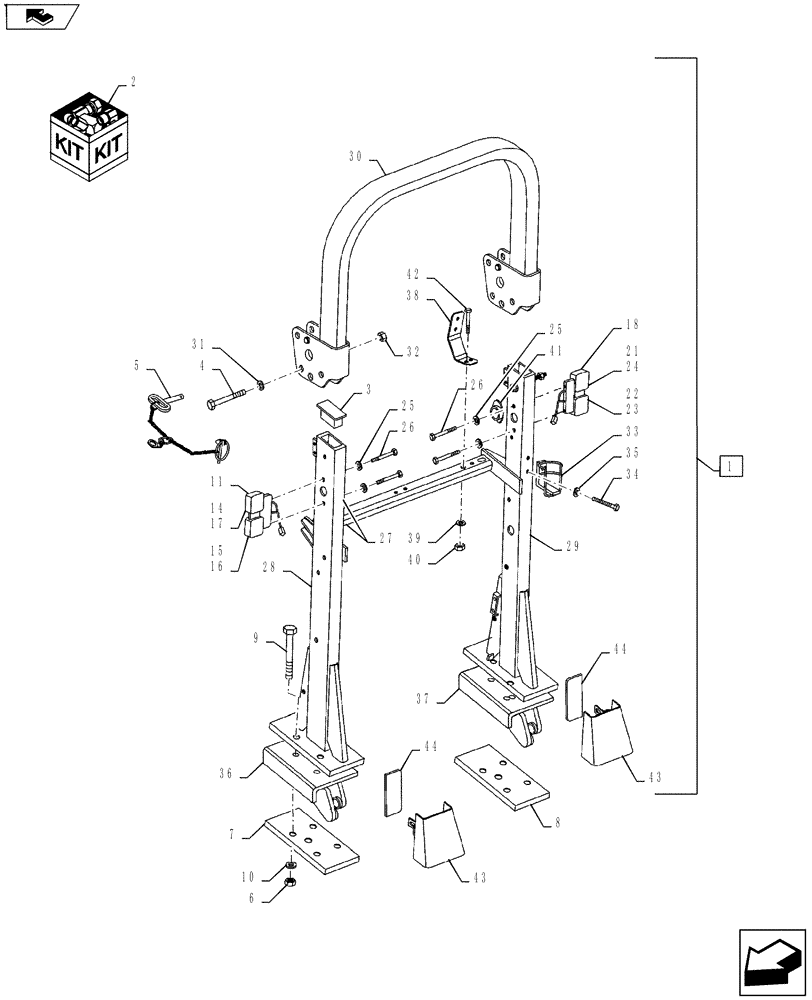

Запчасти Case IH FARMALL 45A (90.114.03) - ROPS - FOLDABLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87617306

ROPS

1шт.

2

NSS

NOT SOLD SEPARAT

ROPS, Kit

1шт.

87617325

1шт.

3

87365545

PLUG

2шт.

4

15985621

BOLT,Hex, M18 x 1.5 x 120mm, Cl 8.8

8шт.

5

87558090

PIN

2шт.

6

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

4шт.

7

NSS

NOT SOLD SEPARAT

Plate, Base, RH

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Base, LH

1шт.

9

86639152

BOLT,Hex, M16 x 200mm, Cl 10.9

Coarse Thread

8шт.

9

15983021

BOLT,Hex, M16 x 200mm, Cl 8.8

Fine Thread

12шт.

10

10520321

WASHER,18.4mm ID x 32mm OD x 4mm Thk

8шт.

11

87642071

LIGHT,12V, 21W, Amber/Red

RH Includes Ref. 12

1шт.

12

NSS

NOT SOLD SEPARAT

Bulb, , Not Illustrated

1шт.

82833895

1шт.

13

82822862

BULB

#1157, 12.8V, Not Illustrated

1шт.

14

NSS

NOT SOLD SEPARAT

Not Illustrated

1шт.

15

87470994

LENS,RED

Not Illustrated

1шт.

16

87470993

LENS

Black, Not Illustrated

1шт.

17

84213171

SCREW

Pan Hd, # 6 x5/8", Not Illustrated

8шт.

18

87648957

LIGHT,12V, 21W, Amber/Red

LH Includes Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

Bulb, , Not Illustrated

1шт.

82833895

1шт.

20

82822862

BULB

#1157, 12.8V, Not Illustrated

1шт.

21

NSS

NOT SOLD SEPARAT

Amber, Not Illustrated

1шт.

22

87470994

LENS,RED

Not Illustrated

1шт.

23

87470993

LENS

Black, Not Illustrated

1шт.

24

84213171

SCREW

Pan Hd, # 1157, 12.8, Not Illustrated

8шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

26

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

4шт.

27

NS

NOT SERVICED

Member Cross

1шт.

28

NS

NOT SERVICED

Right Upright Assembly Includes Ref. 7

1шт.

29

NS

NOT SERVICED

Left Upright Assembly Includes: Ref. 8

1шт.

30

NS

NOT SERVICED

Upper Assembly

1шт.

31

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

Coarse Thread

8шт.

31

11194279

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

Fine Thread

8шт.

32

392530

NUT,M16, Cl 10

Coarse Thread

8шт.

32

12164111

NUT,M16, Cl 8

Fine Thread

8шт.

33

84181085

HOLDER

Cup

1шт.

34

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

35

10571579

LOCK WASHER,M6

2шт.

36

84129781

BRACKET

Plate, Mounting ROPS, RH

1шт.

37

84129778

BRACKET

ROPS, LH

1шт.

38

87394135

BRACKET

1шт.

39

14496505

WASHER,Flat, 8.40mm ID x 17.00mm OD x 1.60mm, CST, ZND

2шт.

40

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

41

87586005

CLIP

2шт.

42

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

43

84313089

COVER

ROPS, LH

1шт.

43

84313092

COVER

ROPS, RH

1шт.

44

84313090

CAP

ROPS

1шт.
